Trane FADA - Page 22

22 FAXA-SVX01B-EN
Installation
dimensions
& weights
LIFTING HOLES
REHEAT COMPRESSOR/
COIL ACCESS PANEL (40x52)
MAIN COMPRESSOR/
COIL ACCESS PANEL (34x52)
CONVENIENCE OUTLET
(OPTION)
MAIN COMPRESSOR/
COIL ACCESS PANEL
(68x52)
MAIN POWER WIRING ENTRANCE
(CAN ALSO BE RUN THRU-BASE)
24 VOLT CONTROL CIRCUIT WIRING ENTRANCE
(CAN ALSO BE RUN THRU-BASE)
UNIT CONTROL PANEL
HUMAN INTERFACE
ACCESS DOOR
HORIZONTAL DISCHARGE
(OPTION)
CONDENSER FANS
FILTER AND DAMPER ACCESS DOOR
(25x59)
SUPPLY FAN ACCESS DOOR
(33x54)
CONDENSATE DRAIN
CONNECTION
ELECTRIC HEATER ELECTRICAL PANEL (24x49)
-OR-
SINGLE GAS HEAT ACCESS PANEL (16x23)
-OR-
FIXED PANEL FOR NO-HEAT OPTION
OR HYDRONIC HEAT INTERFACE OPTION (24x67)
ELECTRIC HEAT POWER WIRING ENTRANCE
FOR 208/230 V: 70, 84, 100, 122 kW
(CAN ALSO BE RUN THRU-BASE)
GAS CONNECTION–DUAL GAS HEAT
(EACH HEATER HAS SEPARATE GAS CONNECTIONS)
DUAL GAS HEAT ACCESS PANEL
(EACH HEATER HAS SEPARATE PANEL)
(16x23)
GAS CONNECTION–SINGLE GAS HEATER
EVAP COIL & CONDENSATE DRAIN PAN
ACCESS DOOR
(18x54)
INLET HOOD

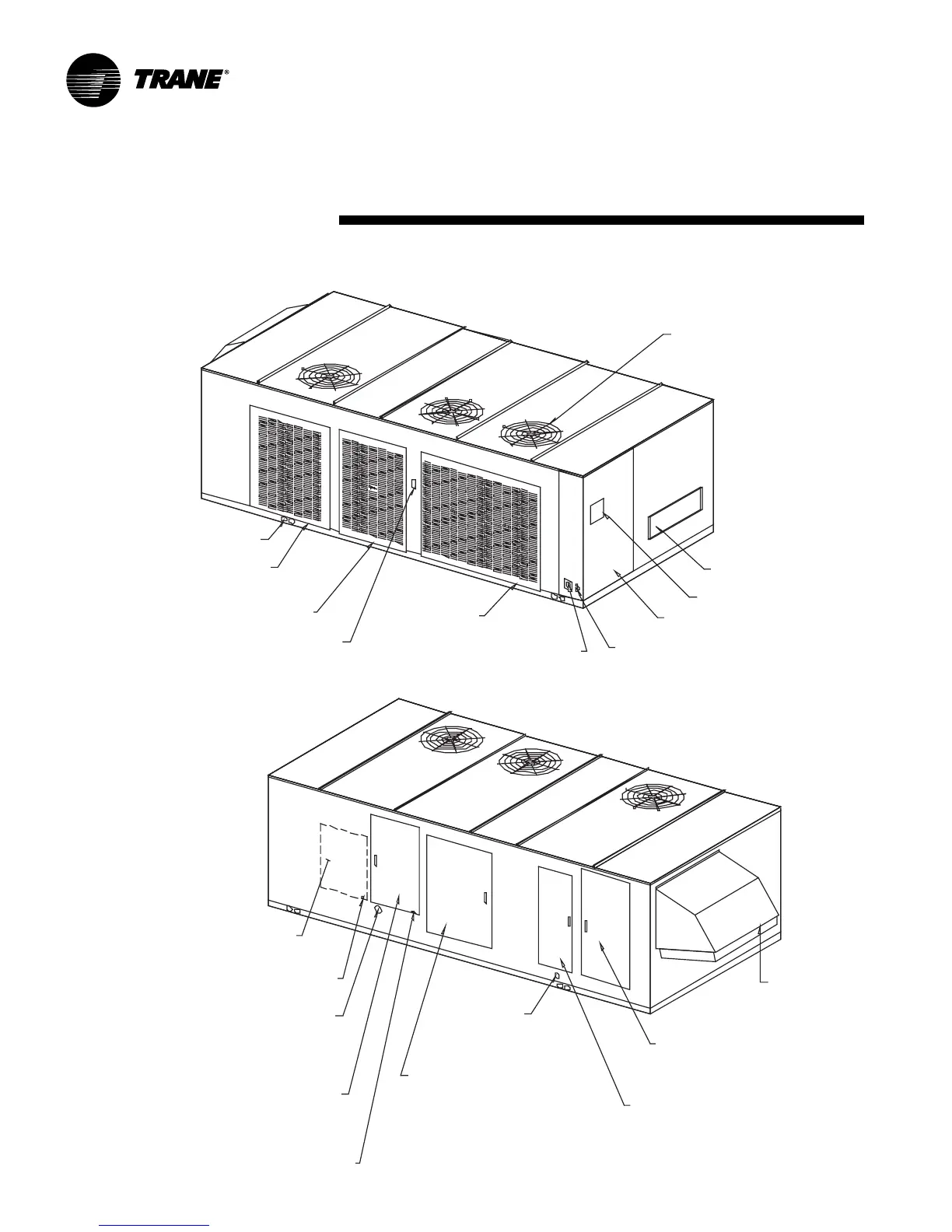

Exterior features for unit sizes 051 & 066,
without TE wheel
