Trane FADA User Manual

58 FAXA-SVX01B-EN
Operation
general
information
This zone sensor is for use with
Packaged Fresh Air units to monitor CO
2
levels in the space.
This zone sensor module is for use with
cooling/heating applications. It provides
the following features and system
control functions:
• System control switch (auto/off): Allows
you to automatically select heating or
cooling as required, or turn the system
off.
• Dual temperature setpoint levers allow
you to set different cooling (blue lever)
and heating setpoints (red lever).
• Thermometer indicates temperature in
the zone.

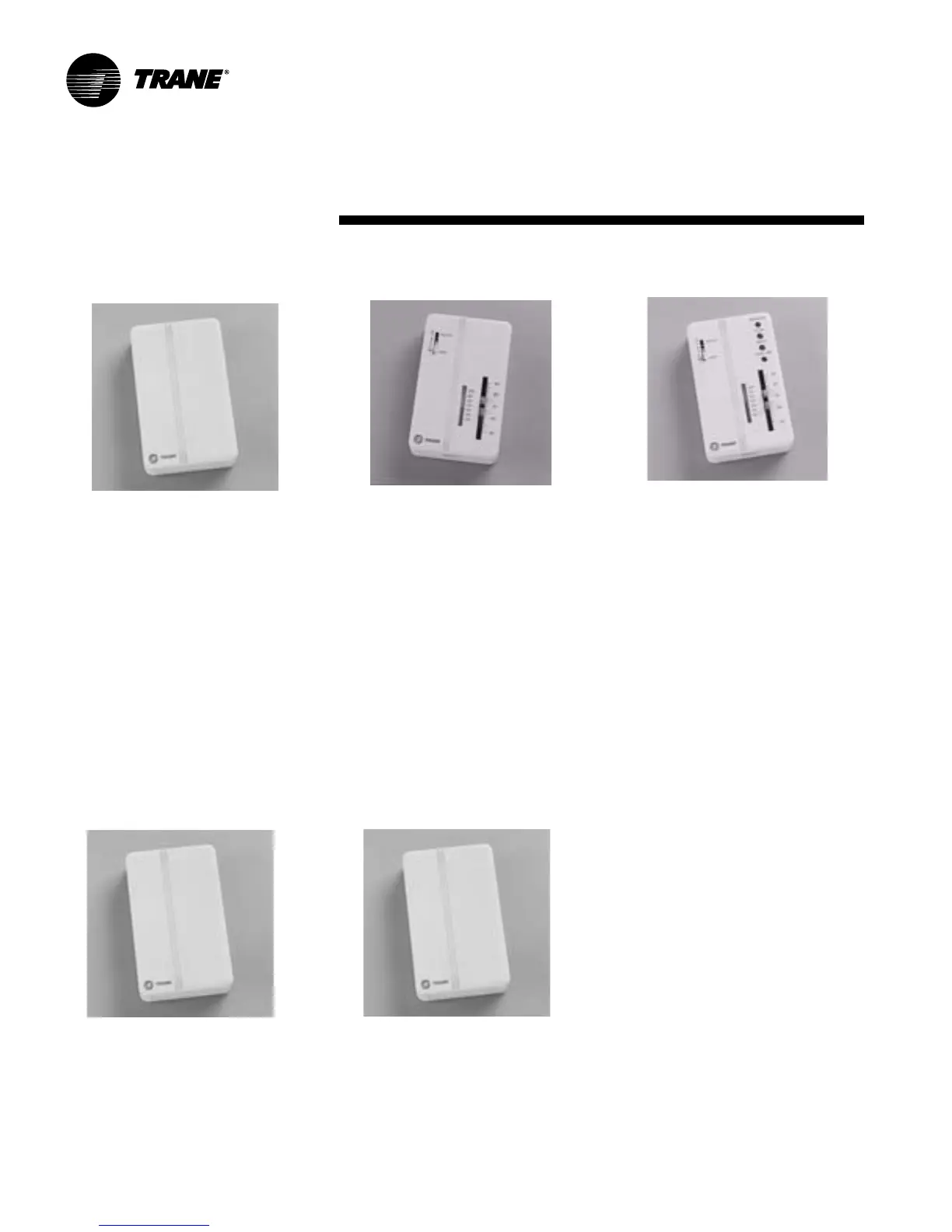

Optional Zone Sensors
Dual setpoint, manual/automatic
changeover sensor, accessory model
number digit 20 = A
Dual setpoint, manual/automatic
changeover sensor with system function
lights, accessory model number
digit 21 = A
Carbon dioxide zone sensor, accessory
model number digit 23 = A
This wall-mounted zone sensor ships
with every Packaged Fresh Air unit that
has supply air dehumidification w/zone
reference or zone dehumidification.
Additional sensors are also available for
order using the accessory model
number and ordering the space relative
humidity kit.
This wall-mounted zone sensor ships
with every Packaged Fresh Air unit.
Additional sensors are also available for
order using the accessory model
number. This zone sensor includes an
internal thermistor and should be
mounted in the zone. This sensor is
available for use with all zone sensor
options to provide remote sensing
capabilities.
Standard With All Units
BAYSENS017 zone temperature sensor,
accessory model number digit 16 = A
Standard with All Units if Supply Air
Dehumidification w/Zone Reference or
Zone Dehumidification
Zone relative humidity sensor
This zone sensor is for use with cooling/
heating applications. It provides the
following features and system control
functions:
• System control switch to select AUTO
mode for automatic selection of heating
or cooling as required, or OFF to turn
the system off.
• Dual temperature setpoint levers for
setting cooling (blue lever) or heating
(red lever).
• Thermometer to indicate temperature in
the zone.
• Function status indicator lights:
SYS ON glows continuously during
normal operation, or blinks if system is
in test mode.
COOL glows continuously during cooling
cycles or blinks to indicate a cooling
system failure.
HEAT glows continuously during heating
cycles or blinks to indicate a heating
system failure.
SERVICE blinks or glows to indicate a
problem. These signals vary depending
on the particular equipment used.
