Section 6. Unit Location Considerations
6.1 Unit Dimensions and Weight
Model
Number
H x W x D
in.
**Blower
Compartment
in.
Unit
Net Weight
lbs.
GAF2A0A36S3AEC
GAF2A0A36S3ASC
39 x 17.5 x 22 NA 112
GAM2A0C48S4ASC 56.9 x 23.5 x 21.8 22 143
GAM2A0C60S5ASC 61.7 x 23.5 x 21.8 22 160
** Subtract from total height to get Coil and Heater compartment height.
Table 7.1

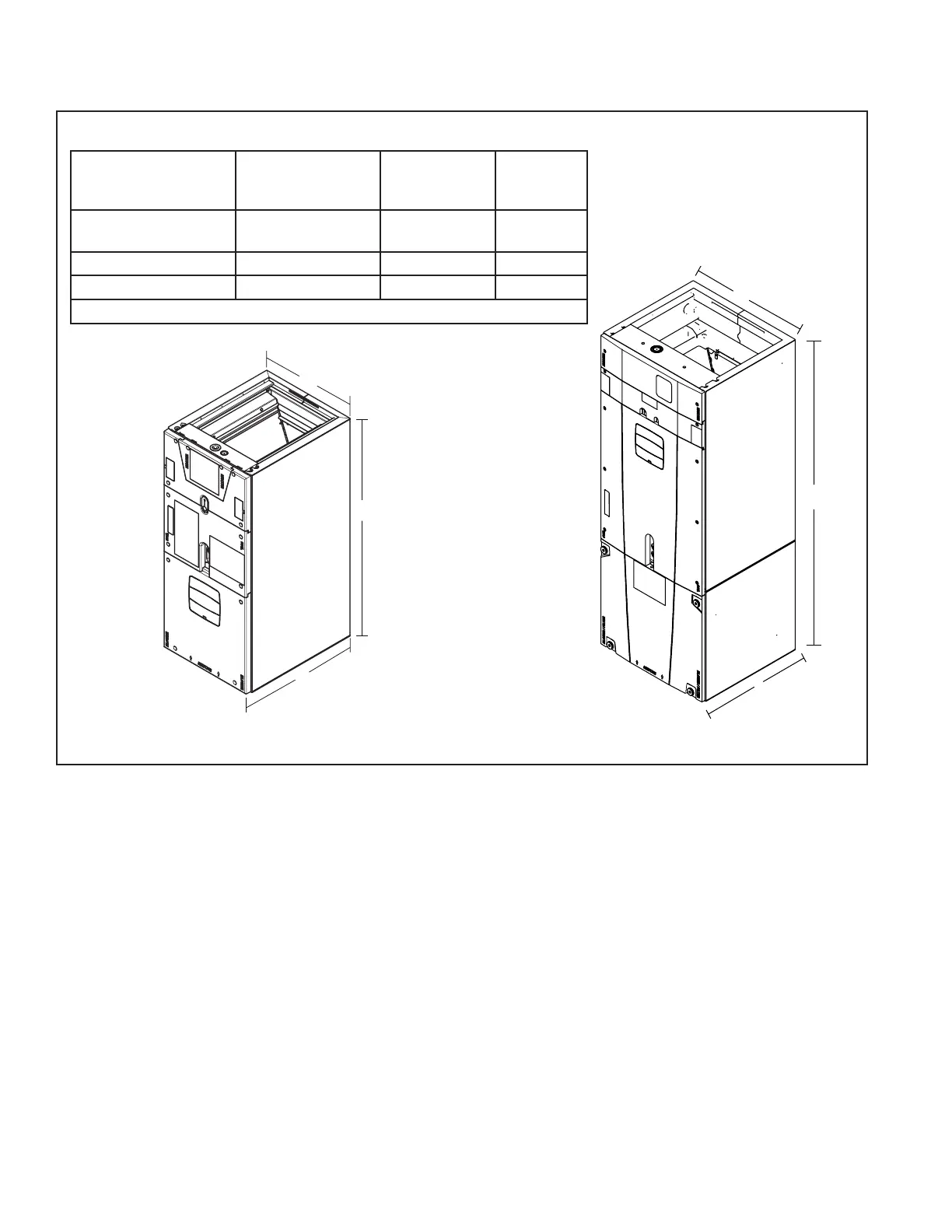

GAF2
GAM2
H
W
D
D
H
W
