Section 16. Unit Outline Drawings
GAM2

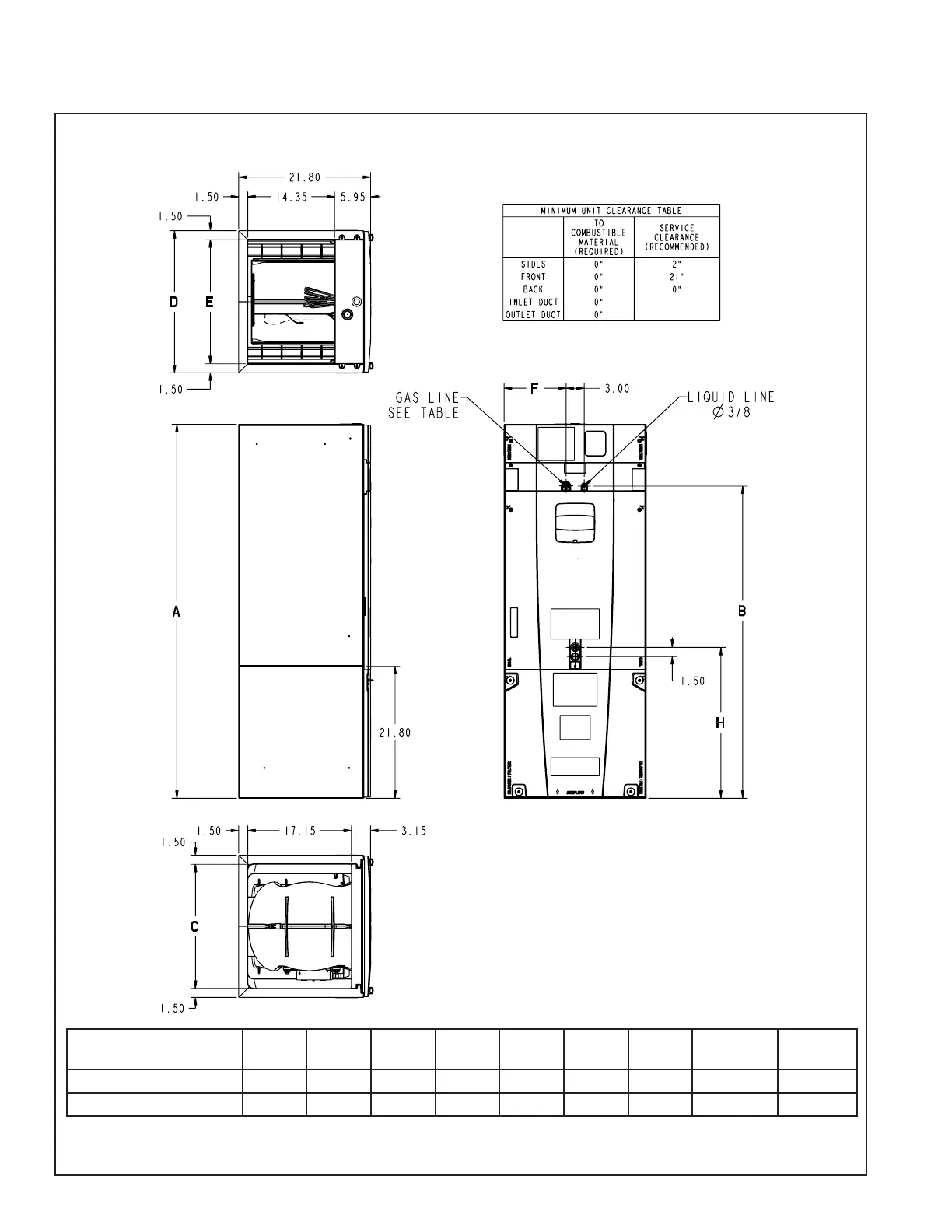

16.1 GAM2 Outline Drawings
MODEL NO. A B C D E F H FLOW
CONTROL
GAS LINE
BRAZE
GAM2A0C48 56.9 46.7 20.5 23.5 20.5 10.3 24.2 TXV 7/8
GAM2A0C60 61.7 51.5 20.5 23.5 20.5 10.3 27.0 TXV 7/8
