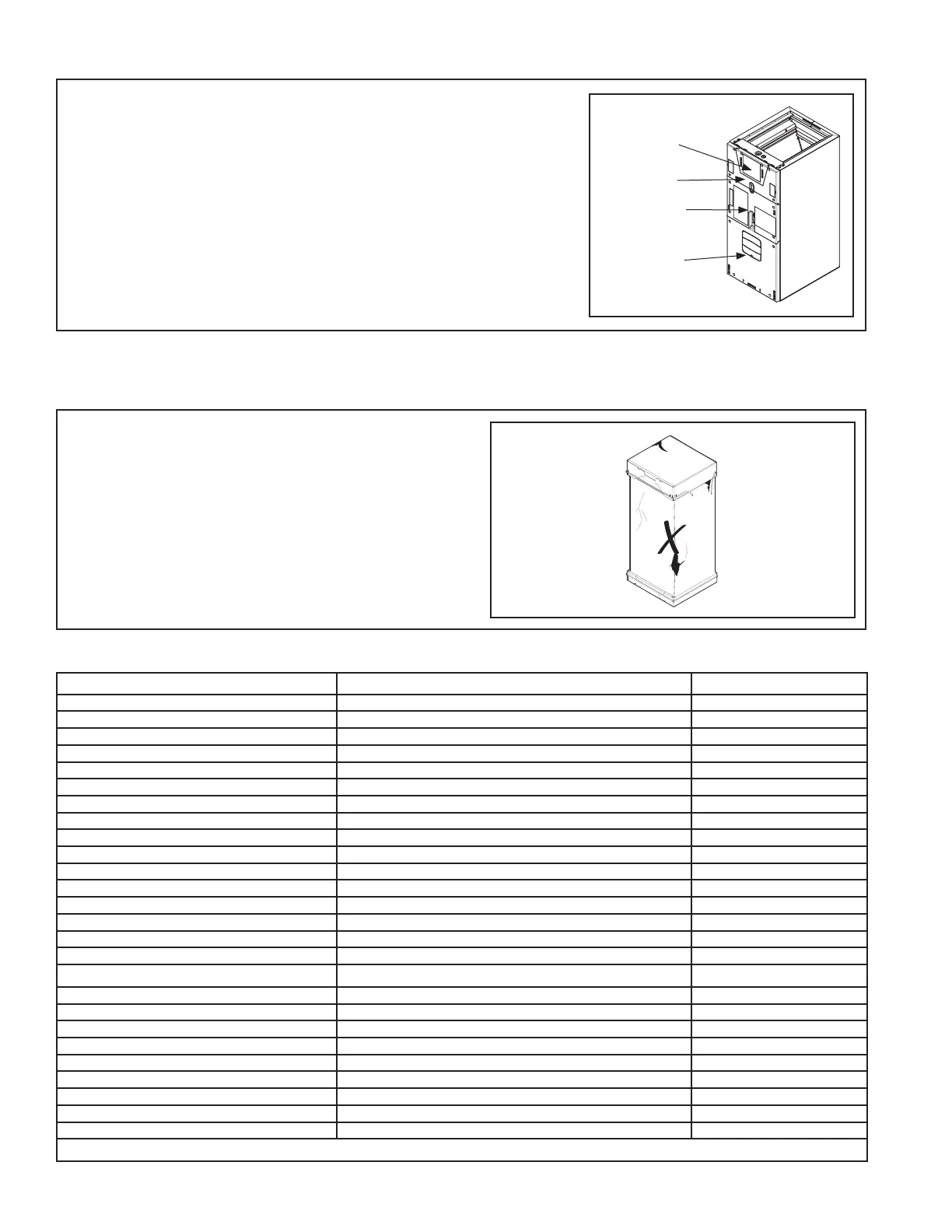

Section 3. Unit Preparation
3.1 Prepare The Unit For Installation
STEP 1 - Check for damage and report promptly to
the carrier any damage found to the unit.
Note: If the unit must be transported in a horizontal
position, it must be laid on its back (marked “REAR”
on carton).
Note: After the unit is removed from the carton,
release pressure from the coil to verify coil is
pressurized and leak free.
3.2 Unit Accessories Table
2.3 GAF2 Panel Removal
GAF2 contains four panels: Blower, Coil, Line Set
and Heater. All panels are secured in place with
Phillipshead screws. Use screwdriver to remove.
Panels must be removed in the following order:
1) Coil
2) Blower
3) Heater
4) Line Set
3) Heater
2) Blower
1) Coil
4) Line Set
GAM2 Accessory Number Description Fits Cabinet Size
BAYSUPFLGCA Supply Duct Flange C C
BAYRETFLGCA Return Duct Flange C C
BAYFLR2220A High Velocity Filter Kit, 22” X 20’ X 1” (10 filters) C
TASB235SB Plenum Stand with Integrated Sound Baffle C C
BAYSRKIT100A Side Return Kit C
TASSBK235 Sound Baffle Kit 23.5” Cabinet C
BAYFRKIT235 Front Return Kit for 23.5” Cabinet C
BAYICSKIT01A Internal Condensate Switch Kit C
BAYSPEKT200A Single Point Power Entry Kit C
BAYATXV4248 R-22 TXV conversion kit GAM2A0C48S4ASC
BAYATXV6060 R-22 TXV conversion kit GAM2A0C60S5ASC
BAYHHKIT001A Horizontal Hanger Kit C
BAYUVCLK001A UVC Lights C
BAYLVKIT100A Low Voltage Conduit Entry Kit C
BAYINSKT235A Sound Insulation Kit for 23.5” Cabinet C
BAYCNDPIP01A 3/4” PVC Threaded Pipe Kit Foam Seal (10 per box) A to C
GAF2 Accessory Number 1
Description Fits Cabinet Size
BAYSFSCABAA Supply Duct Flange A1 A1
BAYRETFLGAA Return Duct Flange A A1
TASB175SB Plenum Stand A with Sound Baffle A1
BAYFRKIT100 Front Return Kit A1
BAYBRFBX100 Bottom Return Filter Box A1
BAYWMKIT001 Wall Mount Kit A1
BAYLVKIT100A Low Voltage Conduit Entry Kit A1
BAYATXV1836A R-22 TXV Conversion Kit A1
BAYCNDPIP01A 3/4” PVC Threaded Pipe Kit Foam Seal (10 per box) A1
1 GAF2A0A36 A1 Cabinet is one piece 17.5” wide
