Diverter

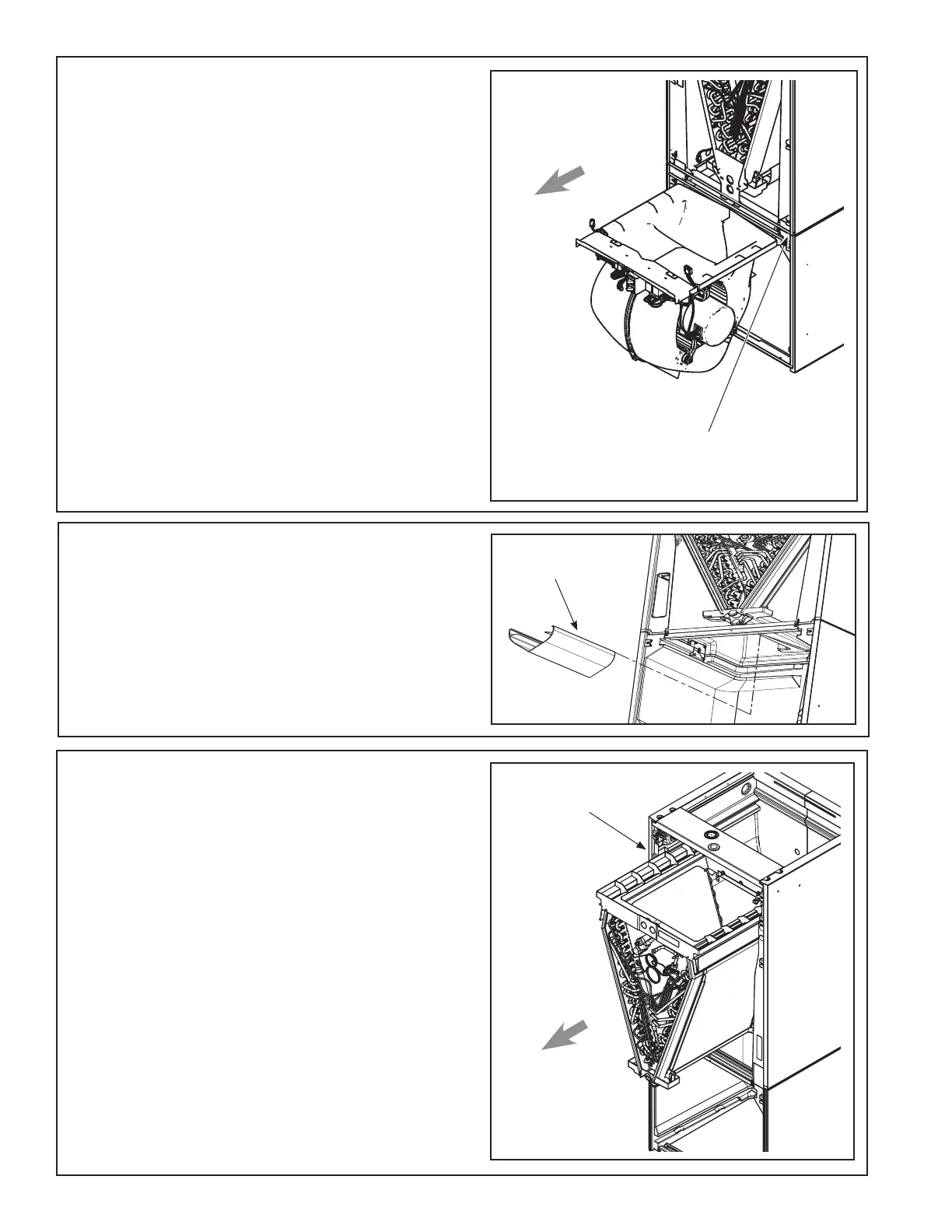

STEP 5 - Remove airflow diverter, if present, from
the bottom of coil drain pan by gripping the plastic
diverter, using your thumbs to spread the top of the
diverter slightly outwards, and then pulling down and
out through the blower opening as illustrated.
STEP 4 - Slide Blower assembly out of unit using
built-in blower support channels and set aside.
Note: Remove the cardboard from the bottom of the
blower. Cut the tie wrap and remove the foam block
located at the motor.
STEP 6 - Slide Coil assembly out of unit using built-
in coil support channels and set aside.
Coil Support
Channel
Blower Support
Channel
