13
To p lace the unit in the configuration your application requires (upflow, downflow, horizontal right, or horizontal left),
simply turn the unit to that orientation.
Note: The air handlers are shipped from the factory suitable for four-way application.
Note: Entry for low voltage connections is allowed on either side of cabinet.
6.2 Four-Way Conversion
Upflow
Condensate
Drains
Refrigerant
Connections
Downflow
Condensate
Drains

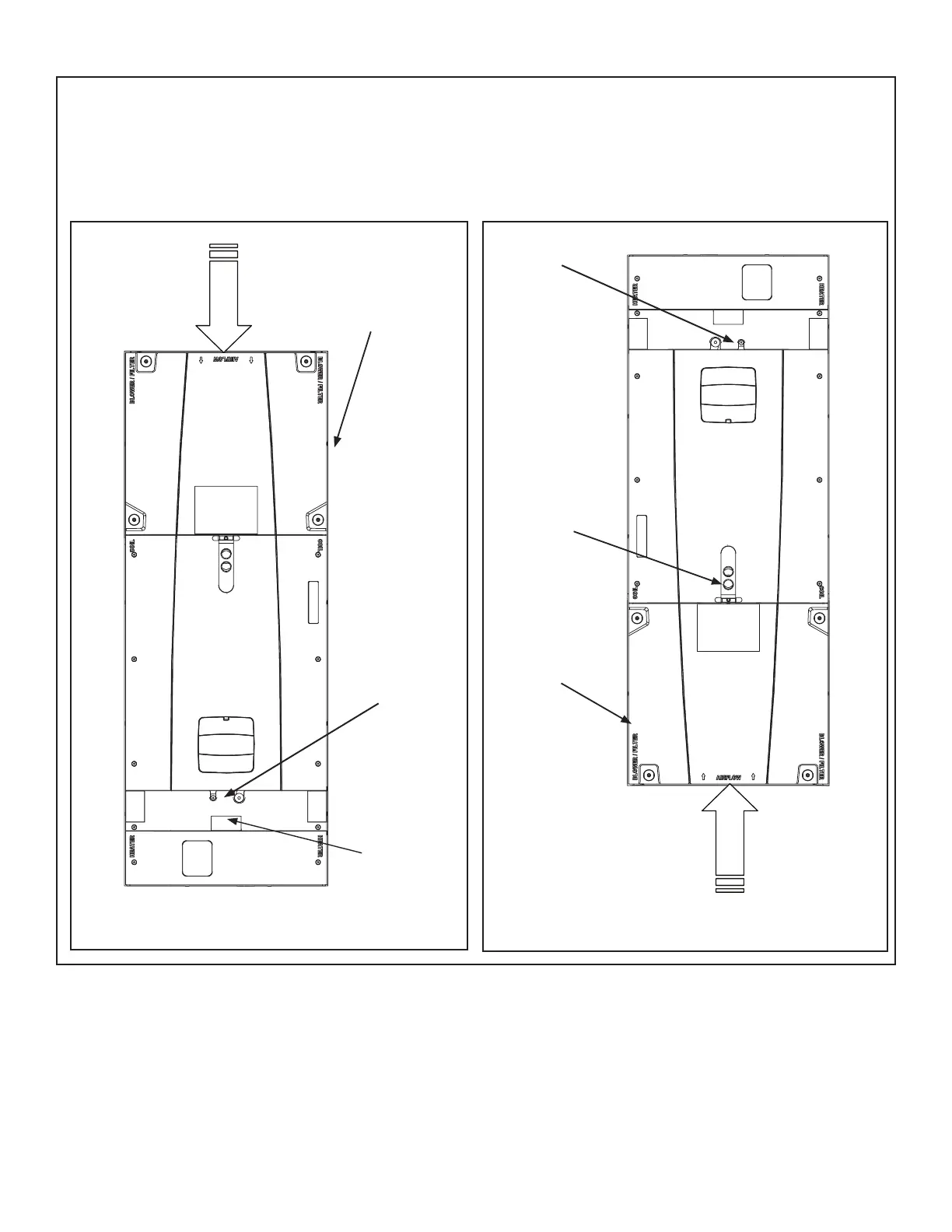

Downflow Configuration
Refrigerant
Connections
Airflow
Upflow Configuration
Low Voltage
Connections
inside unit
Low Voltage
Connections
inside unit
Airflow
