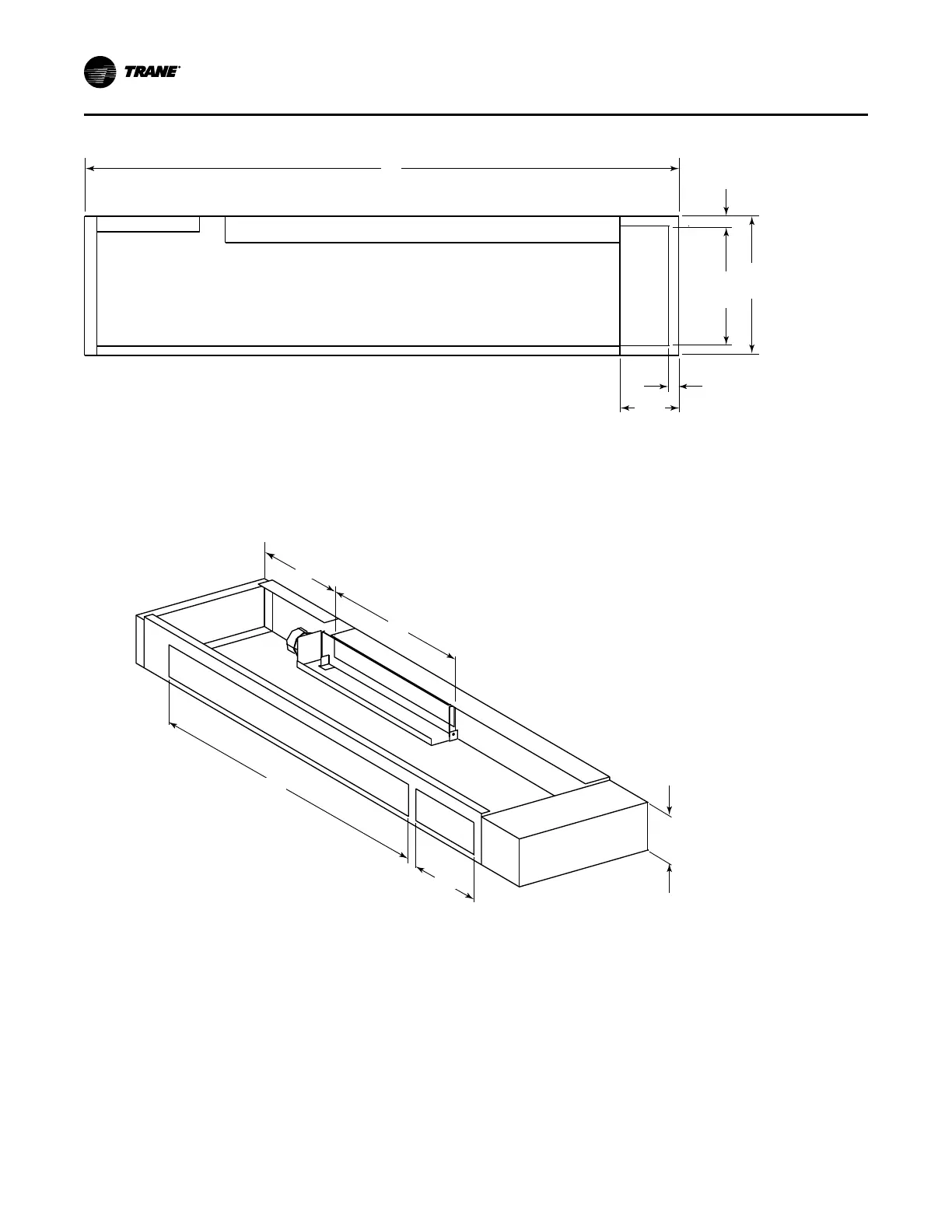

Figure 5. GEC 0.5 to 1.5 tons (60 Hz) - subbase (RH)
4 3/4"
48"
9 1/4"
33"
6"
15"
9 5/8"
3/4"
11 1/4"
3 3/4"
3/4"
TOP VIEW
ISO VIEW
Unit Dimensions
