Trane GECK006 - Unit Dimensions; Service Clearances

8
WSHP-SVX022A-EN
Unit Dimensions
Service Clearances
Access to the unit for servicing purposes should be
provided at installation. All configurations require clearance
from other mechanical and electrical equipment on three
service sides (shown below). This enables panel removal
from the unit for service/maintenance ability.

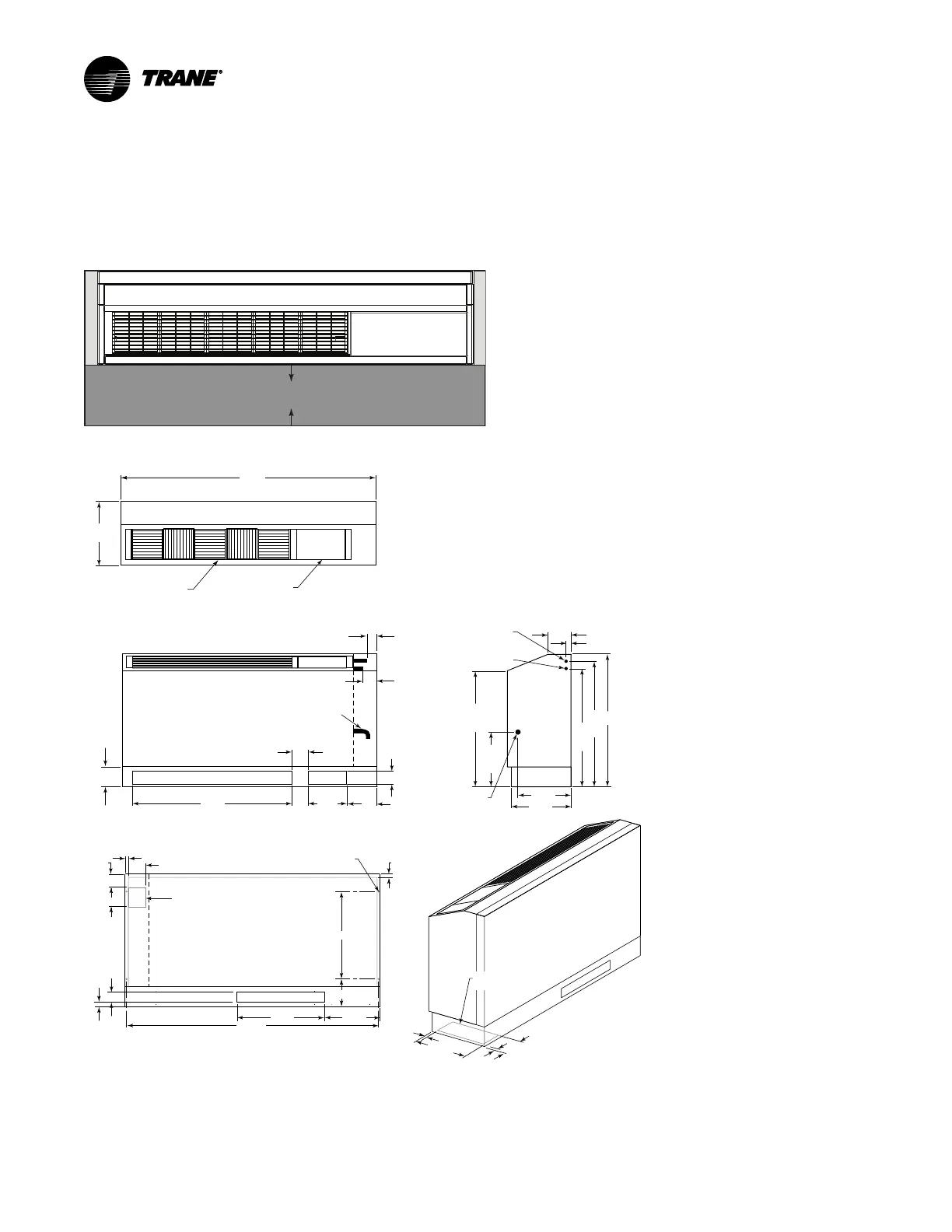

Figure 2. Clearances - GEC 0.5 to 1.5 tons
12”
1"
1"
Figure 3. GEC 0.5 to 1.5 tons (60 Hz) - cabinet (RH) piping connection
48"
12"
CONTROL
ACCESS
PANEL
2 1/2"
6" LONG, 5/8" I.D.
PLASTIC HOSE
PROVIDED FOR
CONDENSATE
CONNECTION
3 3/8"
2 3/4"
5 5/8"
33"
6"
3 3/4"
4"
7/8"
1 3/4"
3/4"
1 3/4"
4 3/8"
7/8"
25"
23 3/4"
22 3/8"
6
1/2"
21 7/8"
10"
11 1/4"
ELECT. FIELD
HOOK-UP
(4) 1/4" WALL SLEEVE
MOUNTING HOLES
RETURN-AIR OPENING
O/A OPENING
TOP VIEW
FRONT VIEW RIGHT SIDE VIEW
BACK VIEW
WATER-OUT
5/8" ODS
WATER-IN
5/8" ODS
PLASTIC DRAIN
5/8" I.D.
FIELD ADJUSTABLE
BI-DIRECTIONAL GRILLES
9 3/4"
3/4"
4 3/4"
3/4"
7 1/2"
15 3/4"
47 1/4"
PIPE & ELEC.
FIELD HOOK-UP
15" 9 1/4"
4 1/2"
3 5/8"
5/8"
