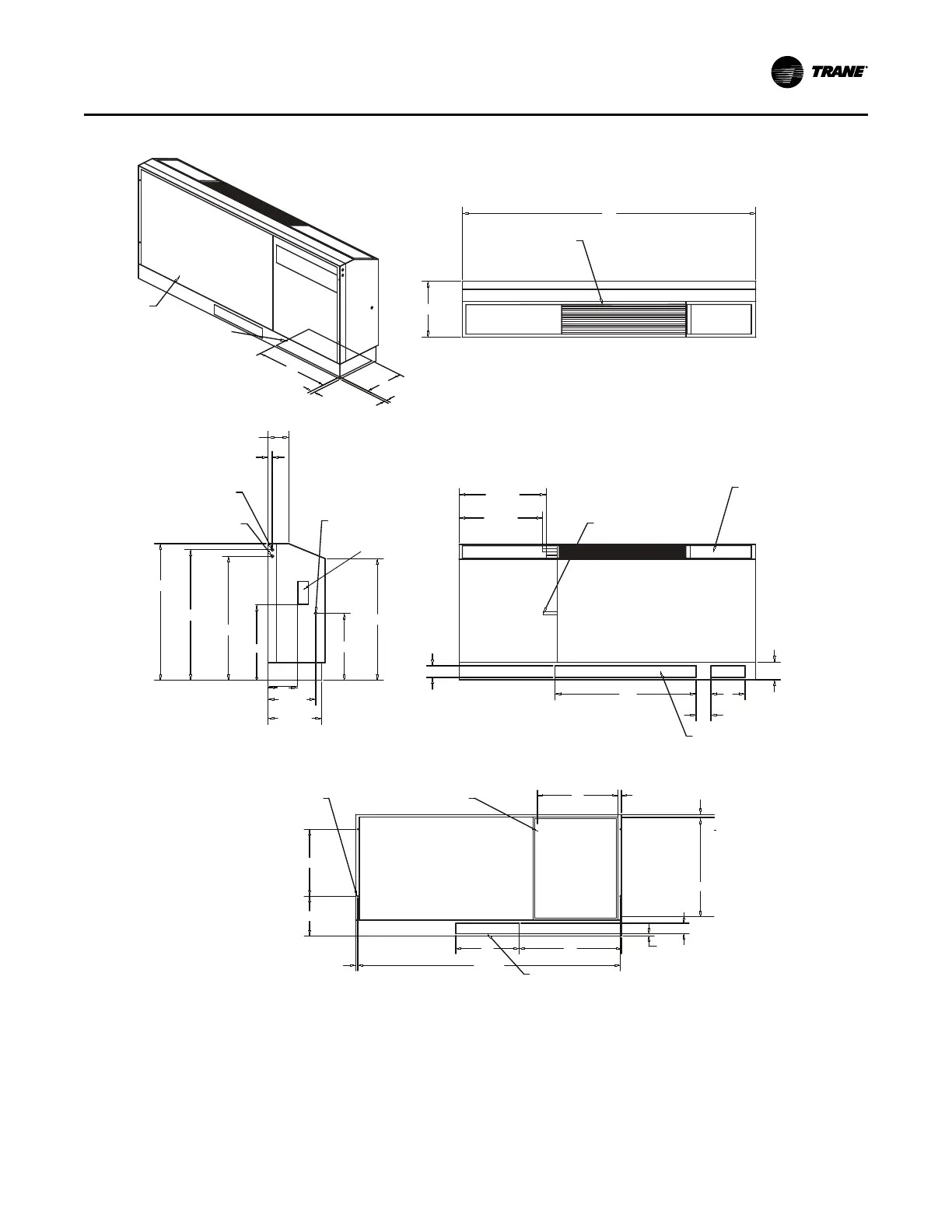

Figure 8. GEC 0.5 to 1.5 tons (60 Hz) - cabinet (LH) piping extended length
ELECTRIC & PIPE
FIELD HOOK UP
62 1/4"
15"
1 3/4"
3/4"
7/8"
19"
20 1/2"
28"
O/A OPENING
7 1/2"
15 3/4"
(4) .25 WALL SLEEVE
MOUNTING HOLES
4 3/8"
21 7/8"
11 1/4"
PLASTIC DRAIN CONN.
.625 I.D.
7 3/8"
23 3/4"
22 3/8"
25"
WATER OUT
.625 ODS
WATER IN CONN
.625 ODS
7/8"
6" LONG
PLASTIC HOSE FOR
CONDENSATE CONN.
33"
3 3/4"
2 1/2"
18 1/2"
17 3/4"
FILTER ACCESS
6"
1 3/4"
UNIT CONTROLLER
63"
SUPPLY AIR GRILLE
12"
8 3/4"
3/4"
9 1/4"
3/4"
SIDE VIEW
BACK VIEW
FRONT VIEW
BACK OF UNIT
PIPE & ELEC.
FIELD HOOK-UP
TOP VIEW
11 3/4"
10"
4 7/8"
RECEPTACLE BOX
3/8"
3/4"
Unit Dimensions
