All other models must use the following method or an equivalent when unit supports are field
furnished: Each section of the Rooftop unit must be supported, which includes supports located
at both ends. If the unit consists of a High CFM Blower section, a DX Coil, a Duct Furnace and a
Supply Plenum, five supports are required. See Figure 4, p. 14.

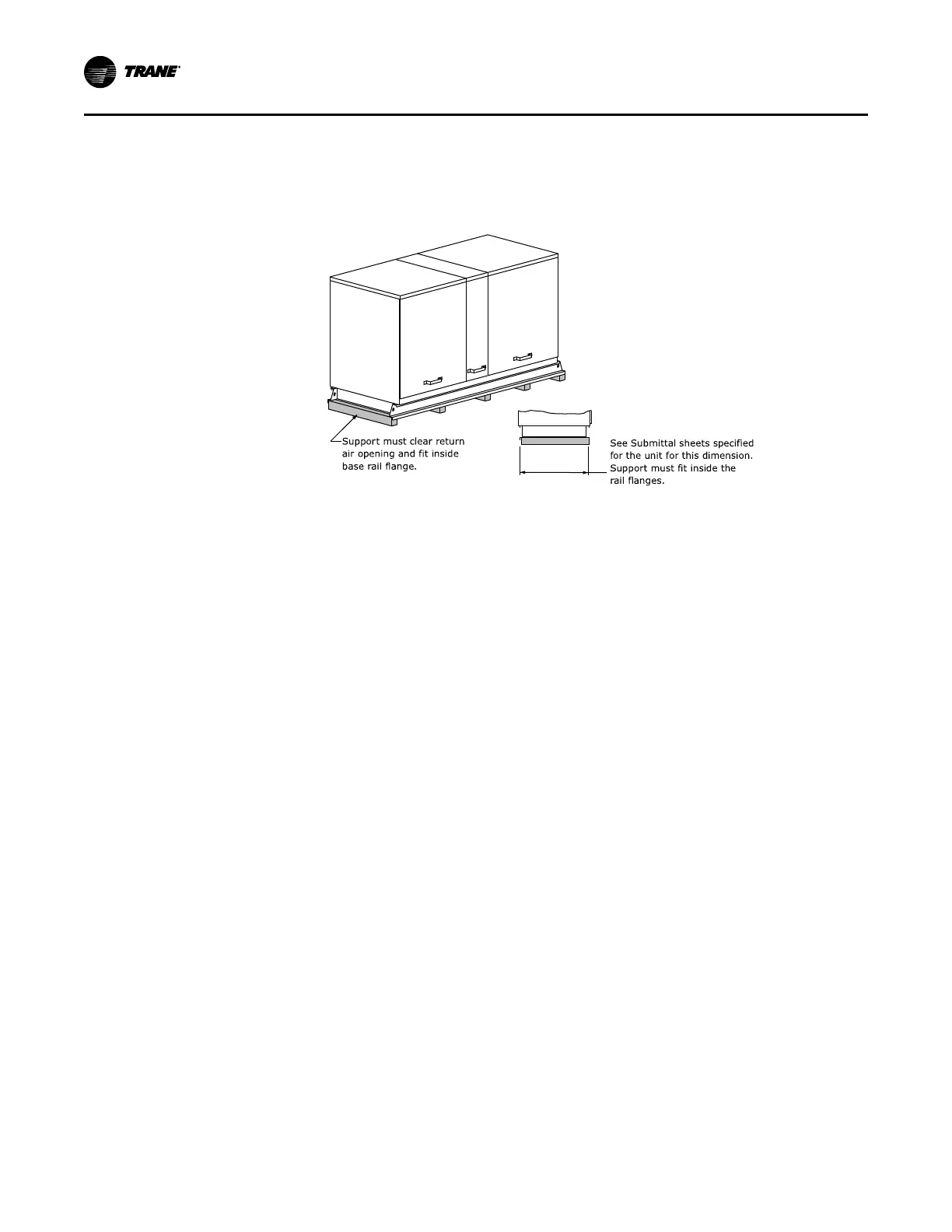

Figure 4. Mounting On Field-Furnished Supports
Mounting on Roof Curb
Assemble and install roof curb per Roof Curb Installation Instructions. See Figures Figure 5, p.
15, Figure 6, p. 21, Figure 7, p. 21, and Figure 8, p. 22 for roof opening sizes, distance between
openings and unit relationship to roof curb.
