60
MUA-SVX003B-EN

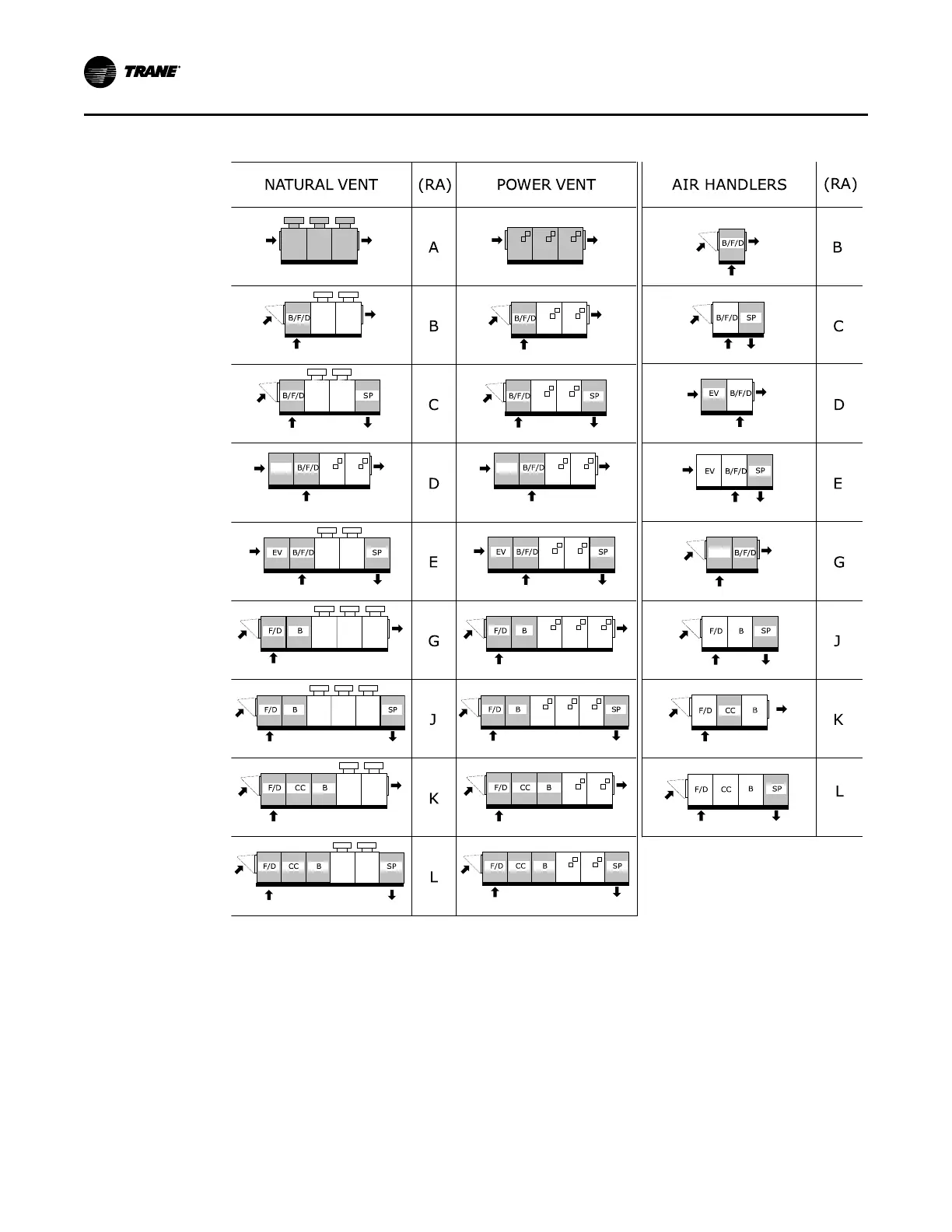

Engineered Products Rooftop Arrangements (RA)*
NNootteess:: *
1. Arrangements are shown with the maximum number of furnaces available.
2. Optional air inlet hood shown in dotted lines.
LLeeggeenndd:: BB//FF//DD = Standard Blower/Filter/Damper, SSPP = Supply Plenum, EEVV = Evaporative Cooler,
FF//DD = Filter/Damper, BB = High CFM Blower, CCCC = Cooling Coil
CCaappaacciittyy:: 1100//4400 = 1 furnace 5500//8800 = 2 furnaces 1122 = 3 furnaces
MMooddeell NNuummbbeerr DDeessccrriippttiioonn
