Trane GRAA - Center of Gravity Information; Center of Gravity Diagram; Center of Gravity Data Tables

52
MUA-SVX003B-EN
Center of Gravity

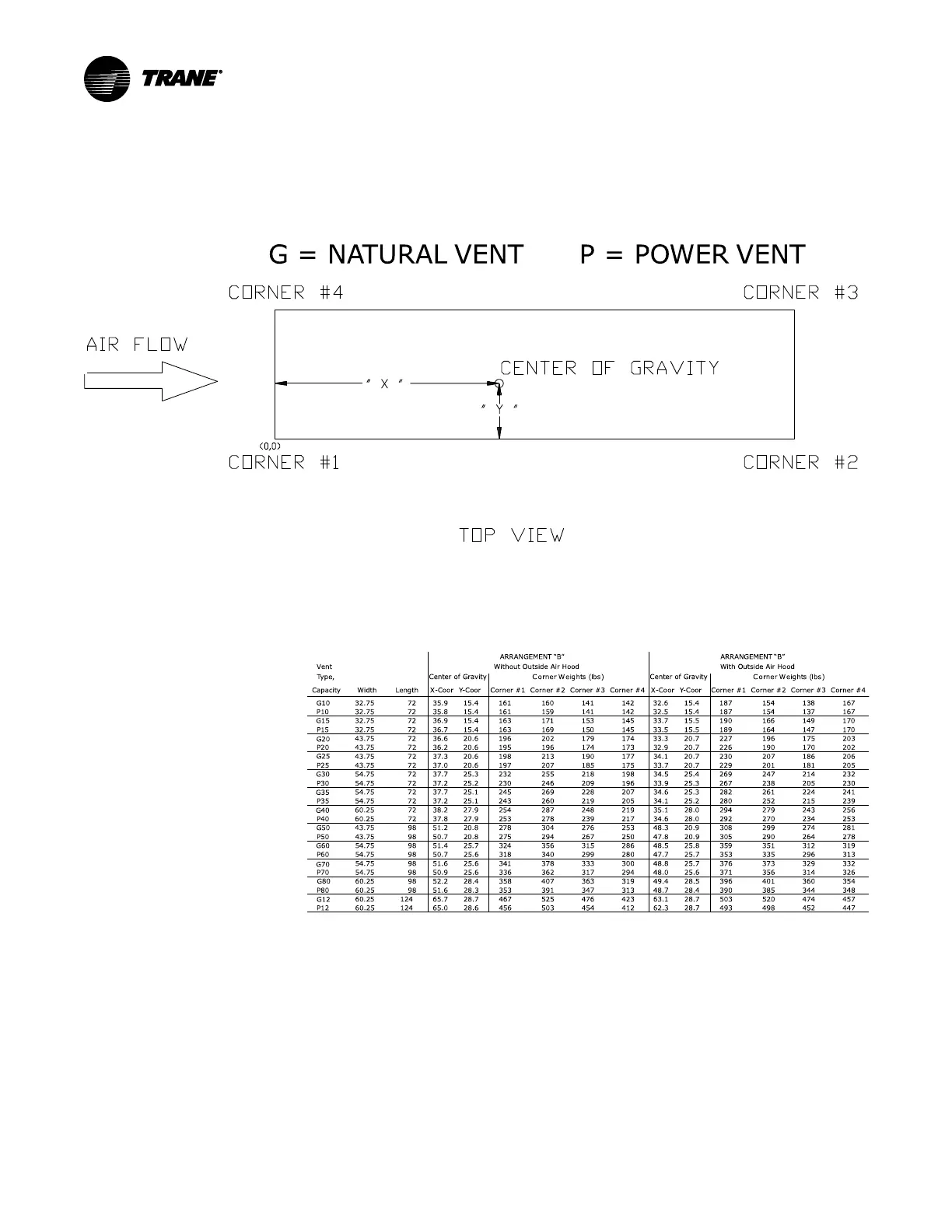

Figure 16. Center of Gravity
NNoottee:: Values based on Average Motor Weight (Actual Center of Gravity and Corner Weights for
Specific Motor Size are Available Upon Request)
Center of Gravity Data
