Trane IntelliPak with Symbio 800 User Manual

RT-SVX063G-EN
93

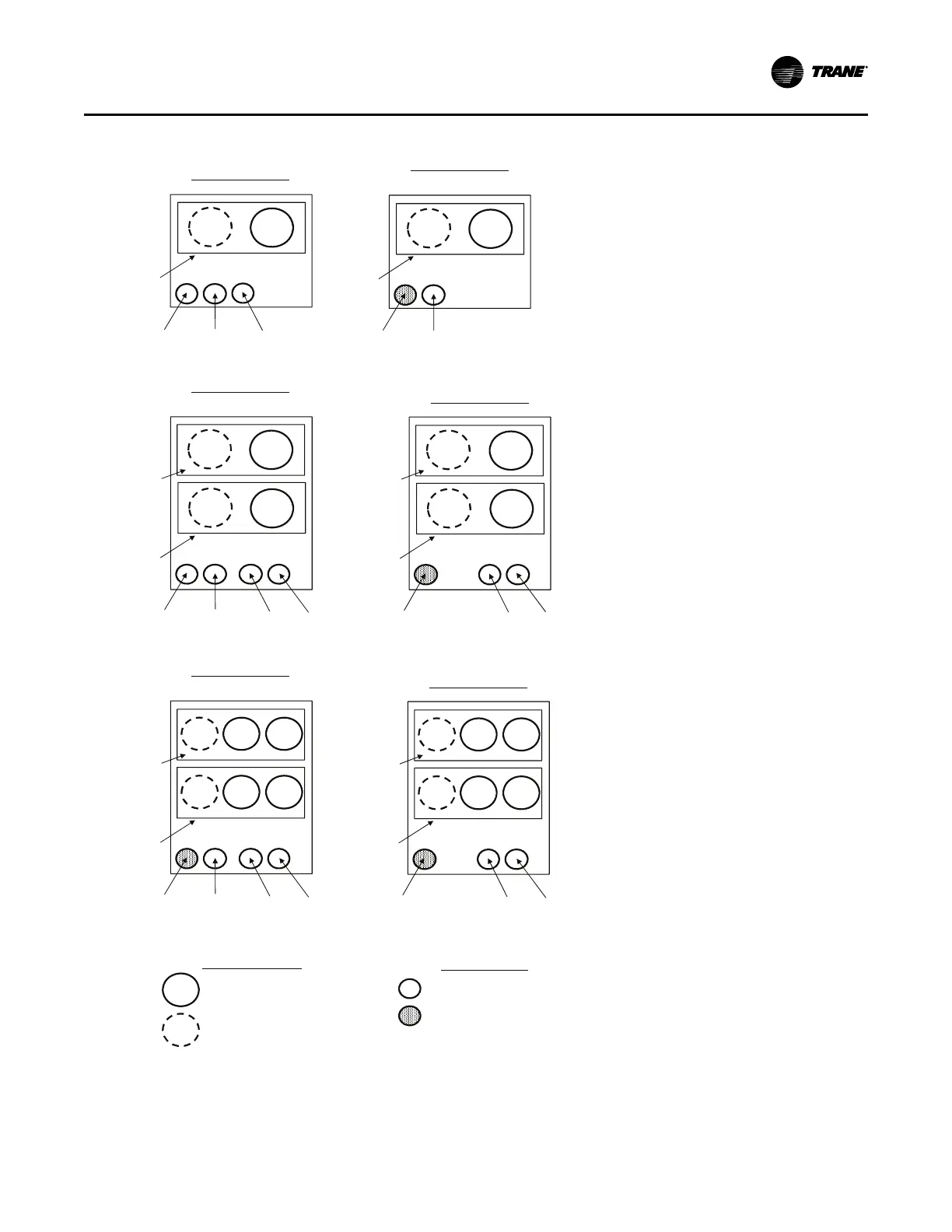

Figure 42. Compressor and condenser fan locations and names
Note: For Refrigeraon system names listed here, please refer to Model Number Digit 9 to differenate between the 'S', 'H', and 'V' designaons
2M6 2M7
Comp 1A
(2M1)
Comp 1B
(2M2)
Comp 1C
(2M3)
Circuit 1
Condenser
Fans &
Motors
Refrigeration Systems:
25S, 30S
2M6
2M7
Comp 1A
(2M1)
Comp 1B
(2M2)
Circuit 1
Condenser
Fans &
Motors
Refrigeration Systems:
20H, 20V, 25H, 25V, 30H, 30V
2M6
2M7
Comp 1A
(2M1)
Comp 1B
(2M2)
Comp 2A
(2M4)
Circuit 1
Condenser
Fans &
Motors
Refrigeration Systems:
40S, 40H, 50S, 50H, 55S, 55H
2M9 2M10
Circuit 2
Condenser
Fans &
Motors
Comp 2B
(2M5)
2M6
2M7
Comp 1A
(2M1)
Comp 2A
(2M4)
Circuit 1
Condenser
Fans &
Motors
Refrigeration Systems:
40V, 50V, 55V
2M9
2M10
Circuit 2
Condenser
Fans &
Motors
Comp 2B
(2M5)
Comp 1A
(2M1)
Comp 1B
(2M2)
Comp 2A
(2M4)
Circuit 1
Condenser
Fans &
Motors
Refrigeration Systems:
60S, 60H, 70S, 70H, 75S, 75H,
75V
2M9
Circuit 2
Condenser
Fans &
Motors
Comp 2B
(2M5)
2M10 2M11
2M6 2M7 2M8
Comp 1A
(2M1)
Comp 2A
(2M4)
Circuit 1
Condenser
Fans &
Motors
Refrigeration Systems:
60V, 70V
2M9
Circuit 2
Condenser
Fans &
Motors
Comp 2B
(2M5)
2M10 2M11
2M6 2M7 2M8
Condenser Fan Legend
= Fixed Speed Motor
= Fixed Speed Motor
-- OR --
(Optional) Low Ambient VFD
Driven Motor
Compressor Legend
= Fixed Speed Compressor
= Fixed Speed Compressor
-- OR –
(Optional) eFlex Variable
Speed Compressor
Controls
