i-HPV5 Inverter air/water heat pumps with axial fan
14

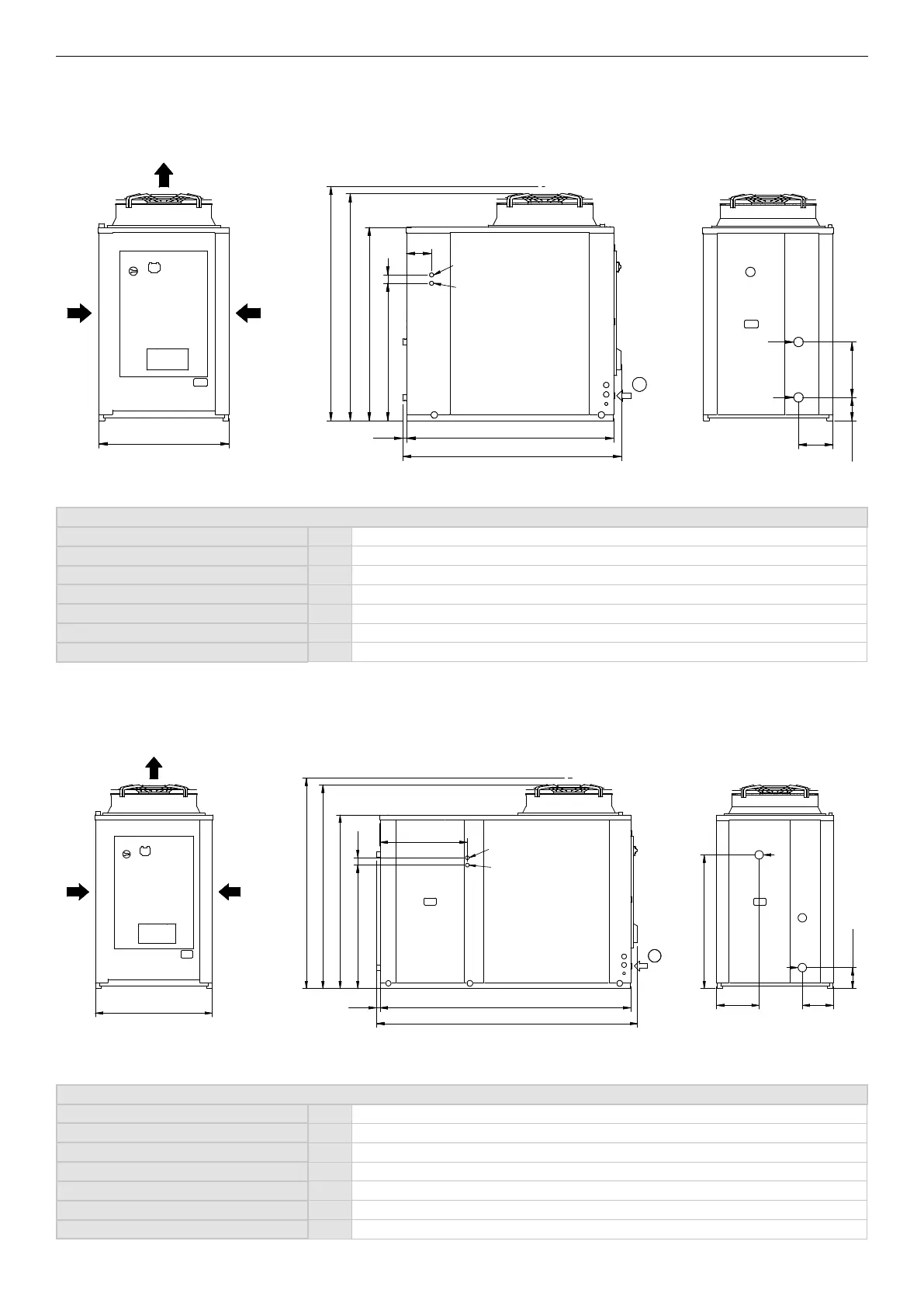

DIMENSIONS
Standard version
A
1110
D
DS / OUT (1" G)
DS / IN (1" G)
E
1850
175430
1162 70
1635
1920
1980*
212,5
OUT
IN
470198,5
296
Dimensions
A - Lenght mm 1850
B - Depht mm 1110
C - Height mm 1920
C - Heigh SSL/C version mm 1980
IN / OUT inch 1" 1/2 Grooved
E - Power supply input
D IN/OUT inch Hydraulic connecons for desuperheater kit 1" G
Version with tank kit
A
1110
D
E
DS / OUT (1" G)
DS / IN (1" G)
E
236530
2460
823,5
701162
1635
1920
1980*
IN
OUT
198,5
296404
1262,5
Dimensions
A - Lenght mm 2460
B - Depht mm 1110
C - Height mm 1920
C - Height SSL/C version mm 1980
IN / OUT inch 1" 1/2 Grooved
E - Power supply input
D IN/OUT inch Hydraulic connecons for desuperheater kit 1" G

Trane MAXA i-HPV5H 0140 Specifications

General

Brand	Trane
Model	MAXA i-HPV5H 0140
Category	Heat Pump
Language	English
