i-HPV5 Inverter air/water heat pumps with axial fan
25

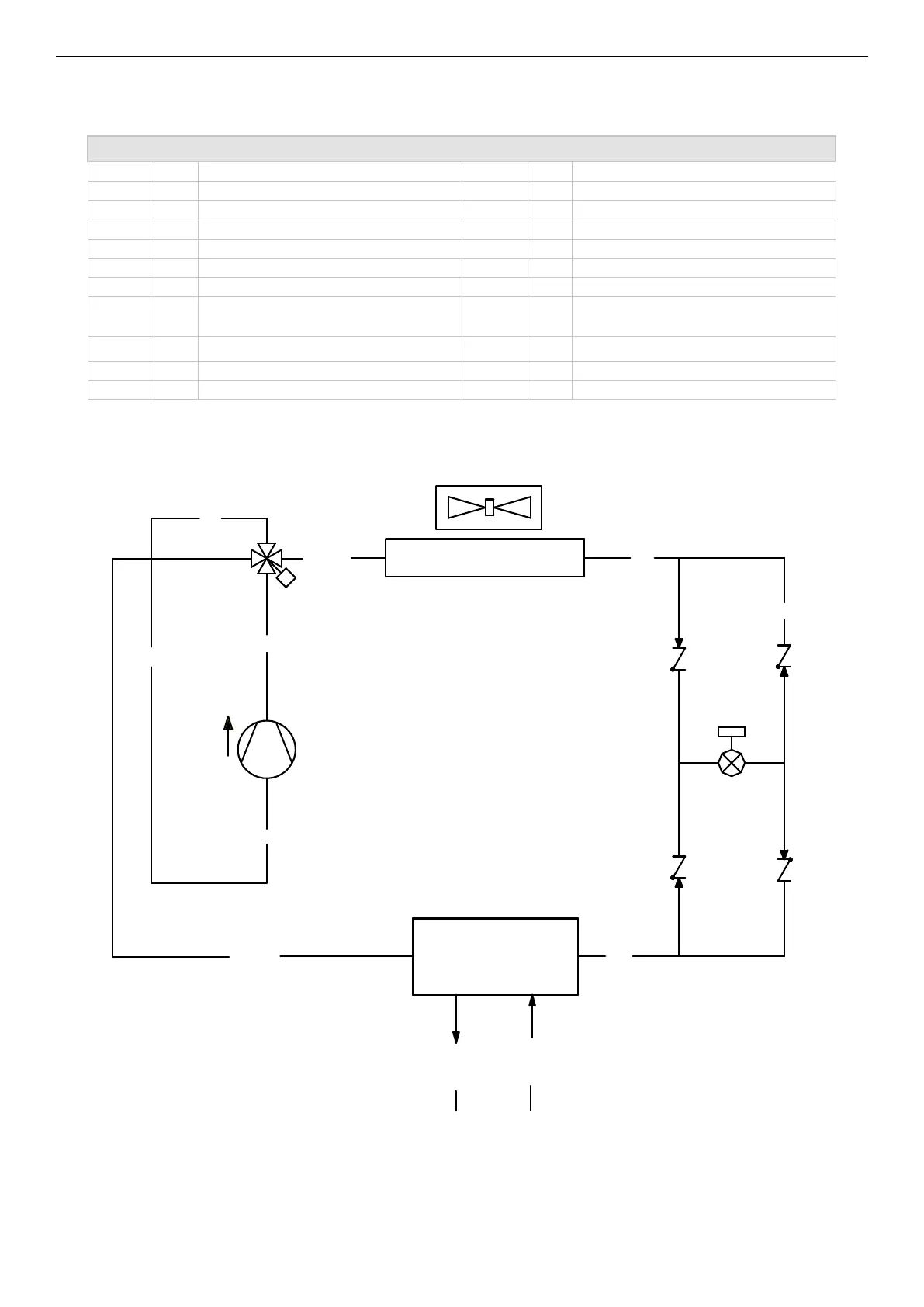

FUNCTIONAL DIAGRAMS
LEGEND
MC COMPRESSOR RS SUCTION LINE
CO CONDENSER SG MOISTURE LIQUID INIDACTOR
EV EVAPORATOR PEH TC 1 HIGH-PRESSURE TRANSDUCER
EEV ELECTRONIC EXPANSION VALVE PED TR 1 LOW-PRESSURE TRANSDUCER
SV CHARGING ATTACHMENT PSH HIGH-PRESSURE SWITCH
F FILTER DRIER PSL LOW-PRESSURE SWITCH
HC CRANKASE HEATER TE SD 1 SUCTION LINE TEMPERATURE PROBE
MAF AXIAL FAN TE DT 1
COMPRESSOR DISCHARGE TEMPERATURE
PROBE
RD SUPPLY LINE H/C R WATER INLET
RLL LAMINATED LIQUID LINE H/C S WATER OUTLET
RL LIQUID LINE
i-HPV5H
MC
CO/EV
MAF
EV/CO
H/C R
H/C S
RD
RL
RLL
RS/RD
RD/RS
RS
YISV
CV
EXV
RL
CV
CV
CV
RS
RS
