i-HPV5 Inverter air/water heat pumps with axial fan
15

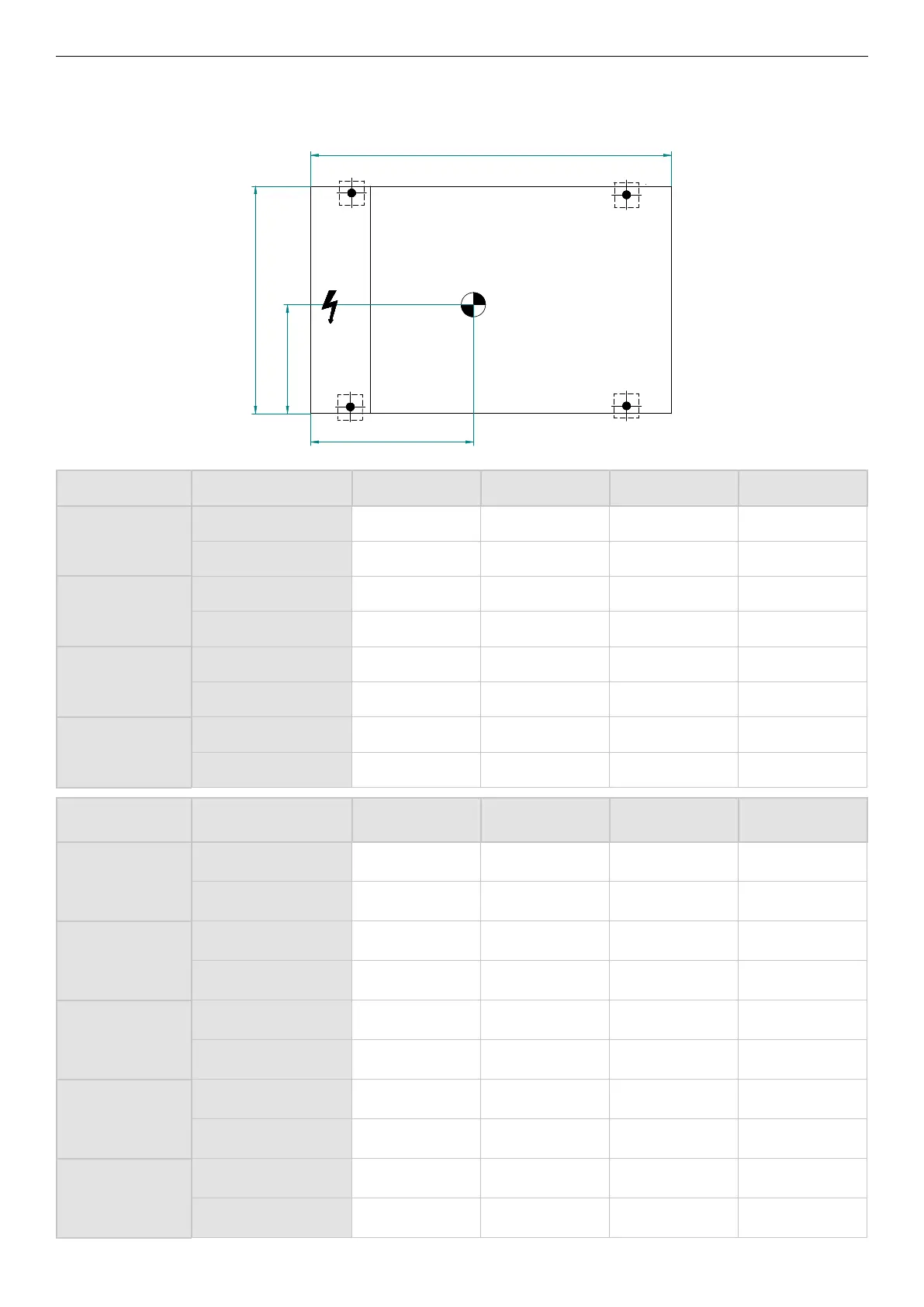

CENTRE OF GRAVITY AND DAMPERS LOCATION

                  
A
P1
P2
P3
P4
A
B
Yb
Xb
Models Version A [mm] B [mm] Xb [mm] Yb [mm]
i-HPV5H 0140
Standard 1110 1754 677 561
With tank kit 1110 2365 1022 576
i-HPV5H 0250
Standard 1110 1754 652 517
With tank kit 1110 2365 970 540
i-HPV5H 0260
Standard 1110 1754 665 520
With tank kit 1110 2365 963 540

Standard 1110 1754 683 511
With tank kit 1110 2365 979 533
Version Models i-HPV5H 0140 i-HPV5H 0250 i-HPV5H 0260 
Standard
Shipping weight [kg] 415 505 525 575
Operang weight [kg] 410 500 520 570
With pump kit
Shipping weight [kg] 435 535 555 595
Operang weight [kg] 440 540 560 600
With double pump
kit
Shipping weight [kg] 465 565 585 625
Operang weight [kg] 470 570 590 630
With pump and tank
Shipping weight [kg] 585 685 705 745
Operang weight [kg] 990 1090 1110 1150
With double pump
and tank
Shipping weight [kg] 615 715 735 775
Operang weight [kg] 1000 1100 1120 1160
