6 3/8”
(162)
7 13/16”
(199)
9 1/4”
(236)
11 5/16”
(288)
27 13/16”
(706)
35 3/8”
(898)
2 3/16” (56)
4 9/16” (116)
4 5/16” (109)
1 5/16” (33)
11 13/16”
(300)
17 3/8”
(442)
20 7/8”
(531)
2 7/8” (73)
39 1/16”
(993)
1 7/8” (47)
SERVICE PANEL
LINE VOLTAGE
LIQUID LINE
CONTROL WIRING
SUCTION LINE
SEE NOTE 4
SEE NOTE 3
6”
(152)
6”
(152)
37 11/16”
(958)
25 11/16”
(653)
37 15/16”
(964)
40”
(1015)
WITH HAIL GUARD
SERVICE PANEL
3” (76)
44 3/4”
(1137)
50 3/4”
(1290)
2 3/16” (56) 31 11/16”
(805)
1 11/16” (43)
1 11/16” (43)
BOTTOM
OF UNIT
7/16” (11.1) DIA. ISOLATOR MOUNTING
HOLES (OUTSIDE HOLES - 4 PLACES)
SERVICE PANEL SIDE
50 7/8”
(1293)
52”
(1320)
WITH HAIL GUARD
SEE NOTE 1
(THIS HOLE FOR 7.5T ONLY)
REFRIGERANT GUAGE ACCESS
CONTROL
WIRING
(OPTIONAL)
SERVICE CLEARANCE
48” (1219.2) (SEE NOTE 2
FOR CLEARANCE)
HAIL GUARD
(OPTIONAL)
HAIL GUARD
(OPTIONAL)

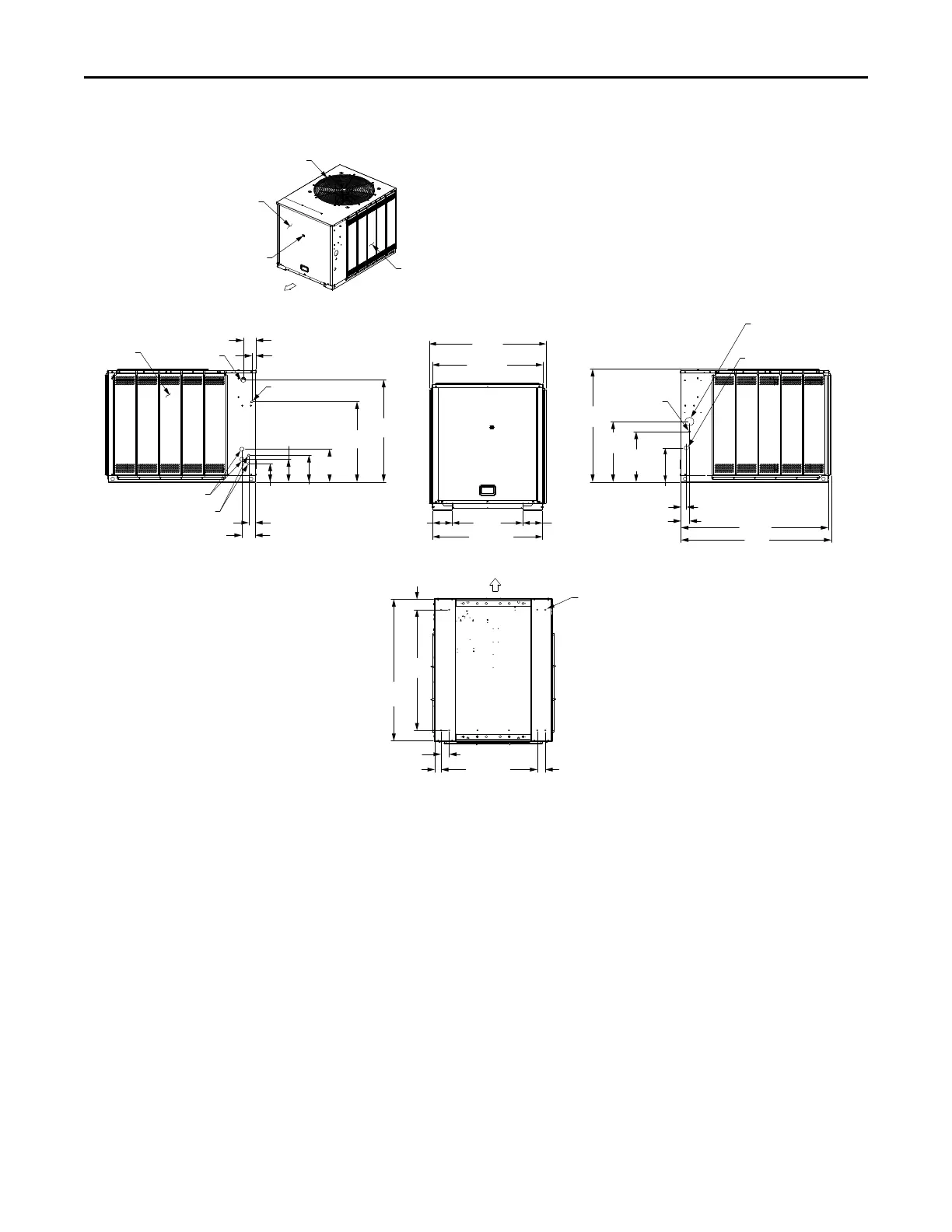

NOTES:
1. ACCESS OPENING IS FOR FIELD INSTALLED BAYLOAM ACCESSORY.
2. MINIMUM CLEARANCE FOR PROPER OPERATION IS 36” (914.4) FROM
WALLS, SHRUBBERY, PRIVACY FENCES ETC. MINIMUM CLEARANCE
BETWEEN ADJACENT UNITS IS 72” (1828.8). RECOMMENDED SERVICE
CLEARANCE 48” (1219.2)
3. TOP DISCHARGE AREA SHOULD BE UNRESTRICTED FOR 100” (2540)
MINIMUM. UNIT SHOULD BE PLACED SO ROOF RUN-OFF WATER OR FALLING
SNOW FROM ROOF DOES NOT POUR/FALL DIRECTLY ON UNIT
4. OUTDOOR AIR TEMPERATURE SENSOR OPENING (DO NOT BLOCK OPENING)
To Next Page
