SSP-SVX001B-EN
Installation
Refrigerant Piping Guidelines

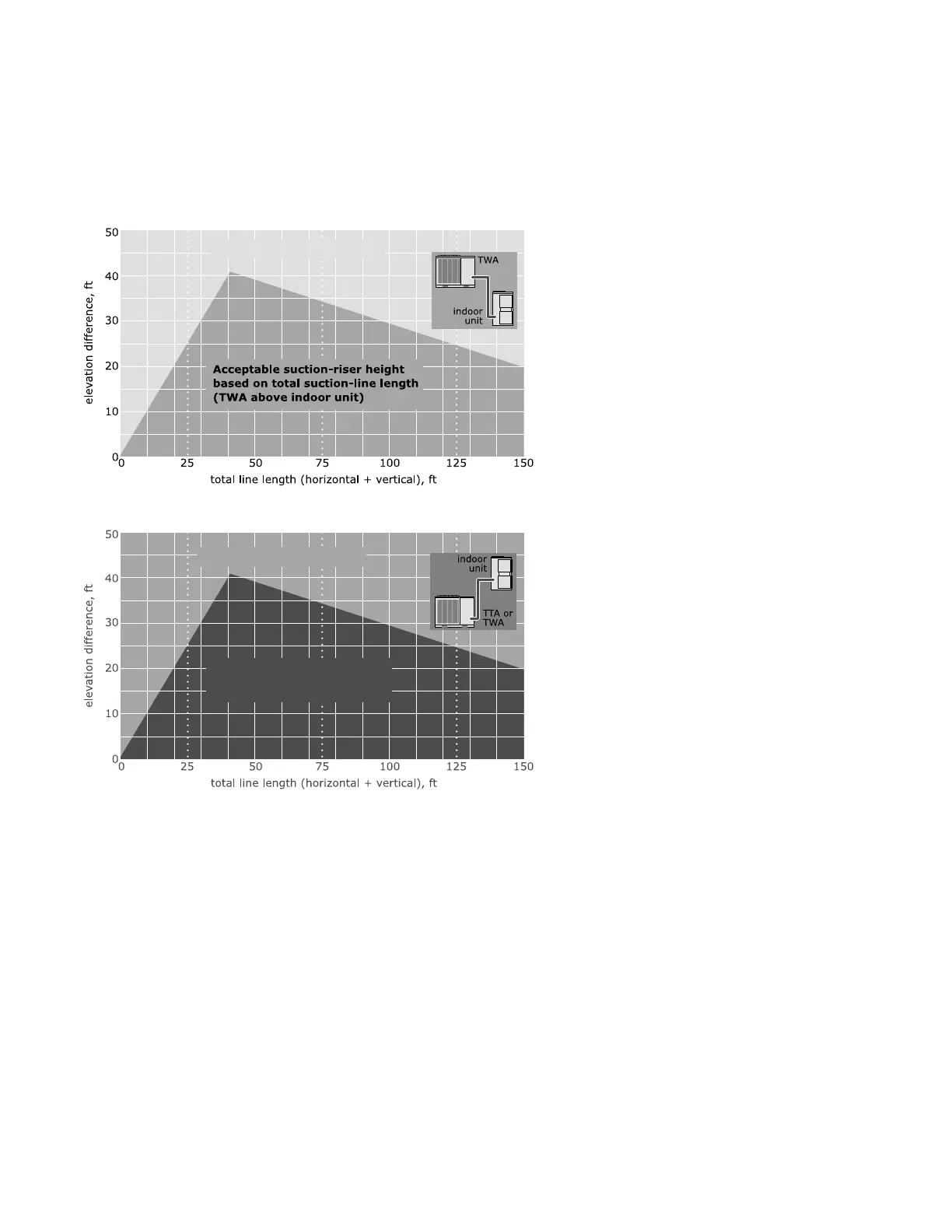

Figure 10. Allowable elevation difference: TWA above indoor unit
Contact manufacturer for review
Figure 11. Allowable elevation difference: TTA or TWA below indoor unit
Acceptable liquid-riser height
based on total liquid-line length
(below indoor unit)
Contact manufacturer for review
NNoottee:: Route refrigerant piping for minimum linear length, minimum number of bends and fittings.
IImmppoorrttaanntt:: Read Application Guide SS-APG008*–EN
thoroughly before installing this unit.
