SSP-SVX001B-EN
33
Service Test Mode
The Symbio™ 700 supports a Service Test Mode that
can be used to energize the various components of the
system, either to support general system startup tasks
or to support troubleshooting. The user can initiate
Service Test Mode through the controller user
interfaces, including the Symbio Service and
Installation mobile application.
The modes shown below can be initiated. Depending
on the equipment configuration, the controller will
energize the appropriate outputs. A user-selected
timeout value will determine how long the controller
will remain in any given state once initiated. For
detailed information on how each Service Test State is
interpreted based on the equipment’s configuration,
refer to the Symbio 700 Odyssey Controls Application
Guide ((ACC-APG001*-EN).

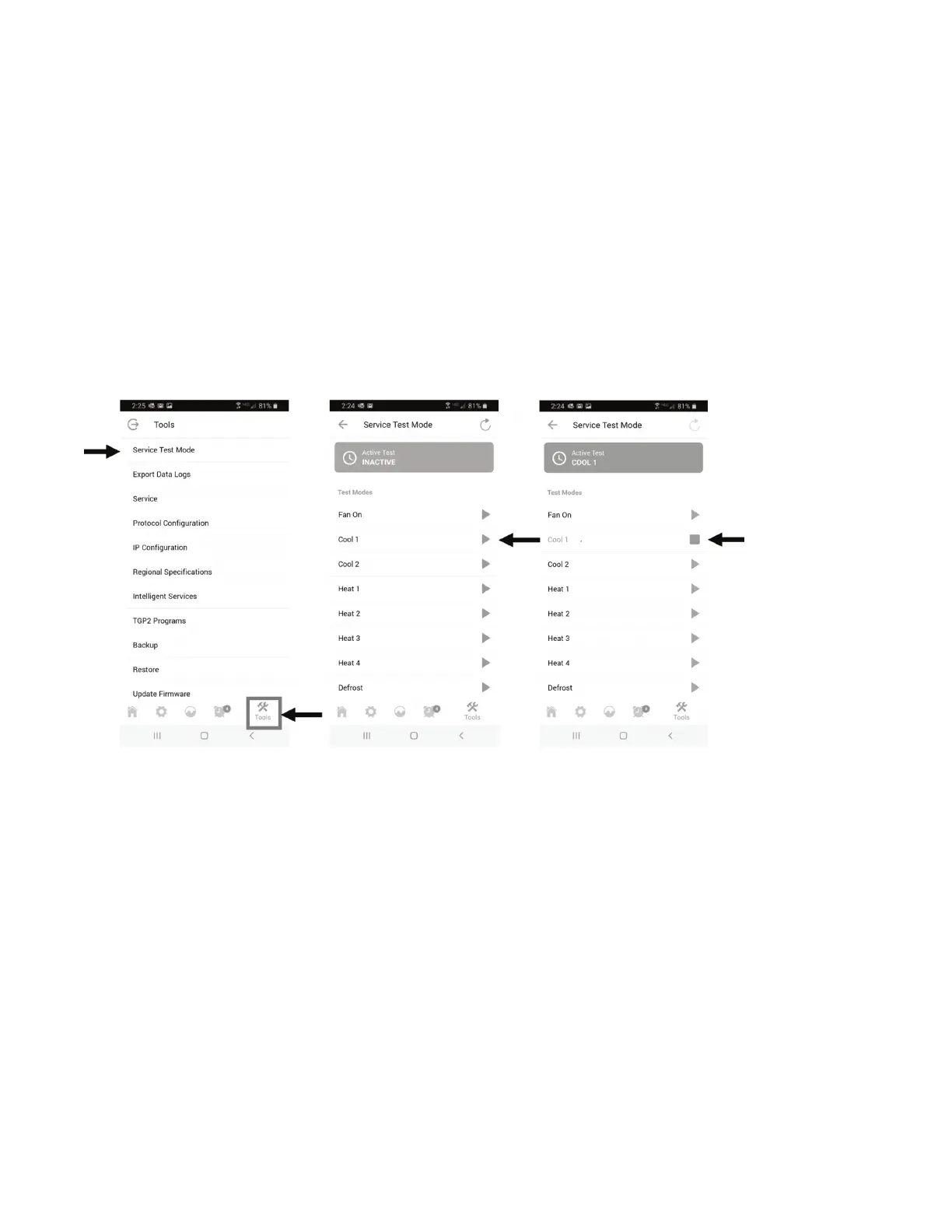

Figure 22. Symbio 700 service test mode
