Trane RTHD - Page 12

Dimensions
12 SO-SVN048A-EN

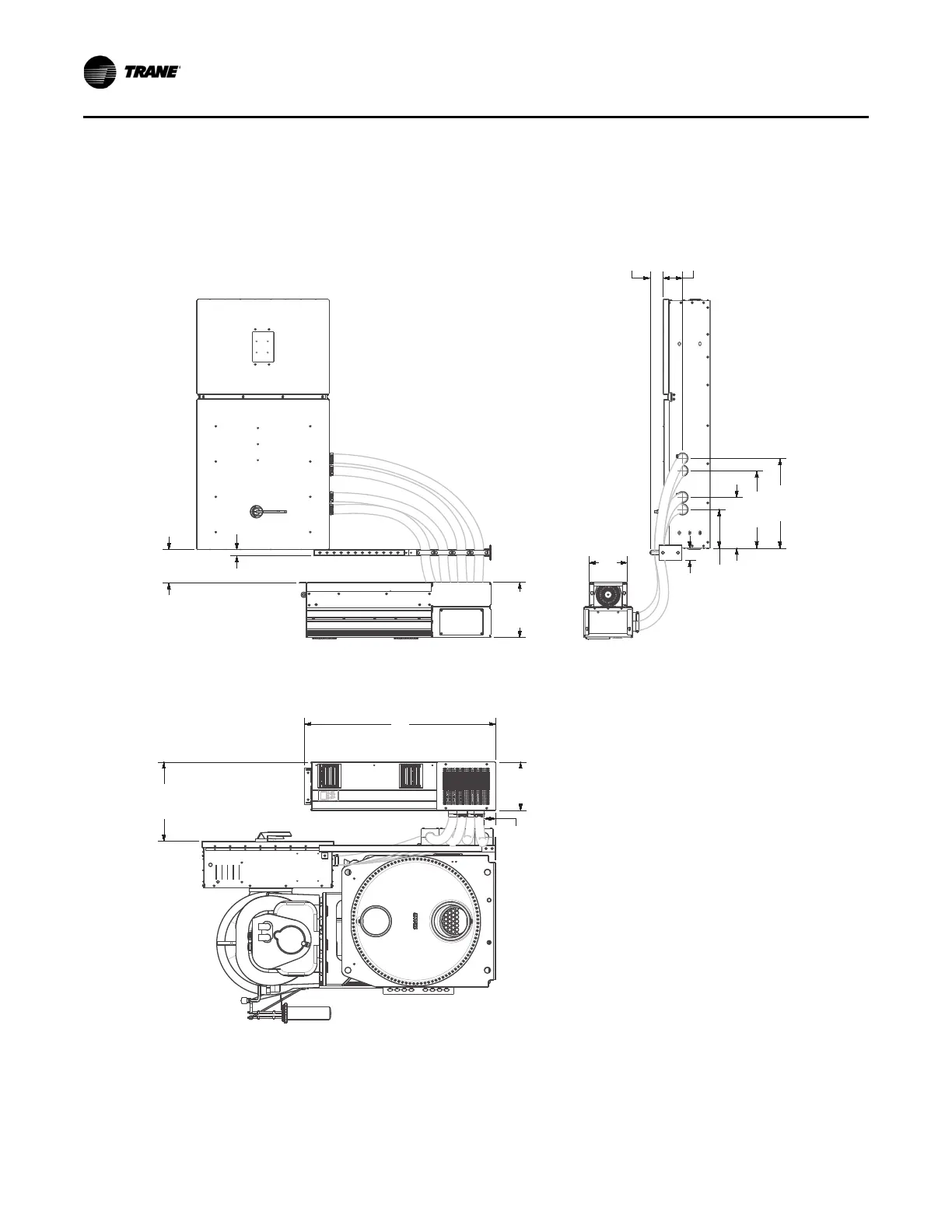

Figure 5. D1 drive, 4 conduit, 460V, 185 to 334 amps - rotated drive orientation
8.79
1.67
14.62
12.80
20.94
50.67
3.10
10.25
13.50
20.50
5.00 3.44
23.75
10.16
3.19
