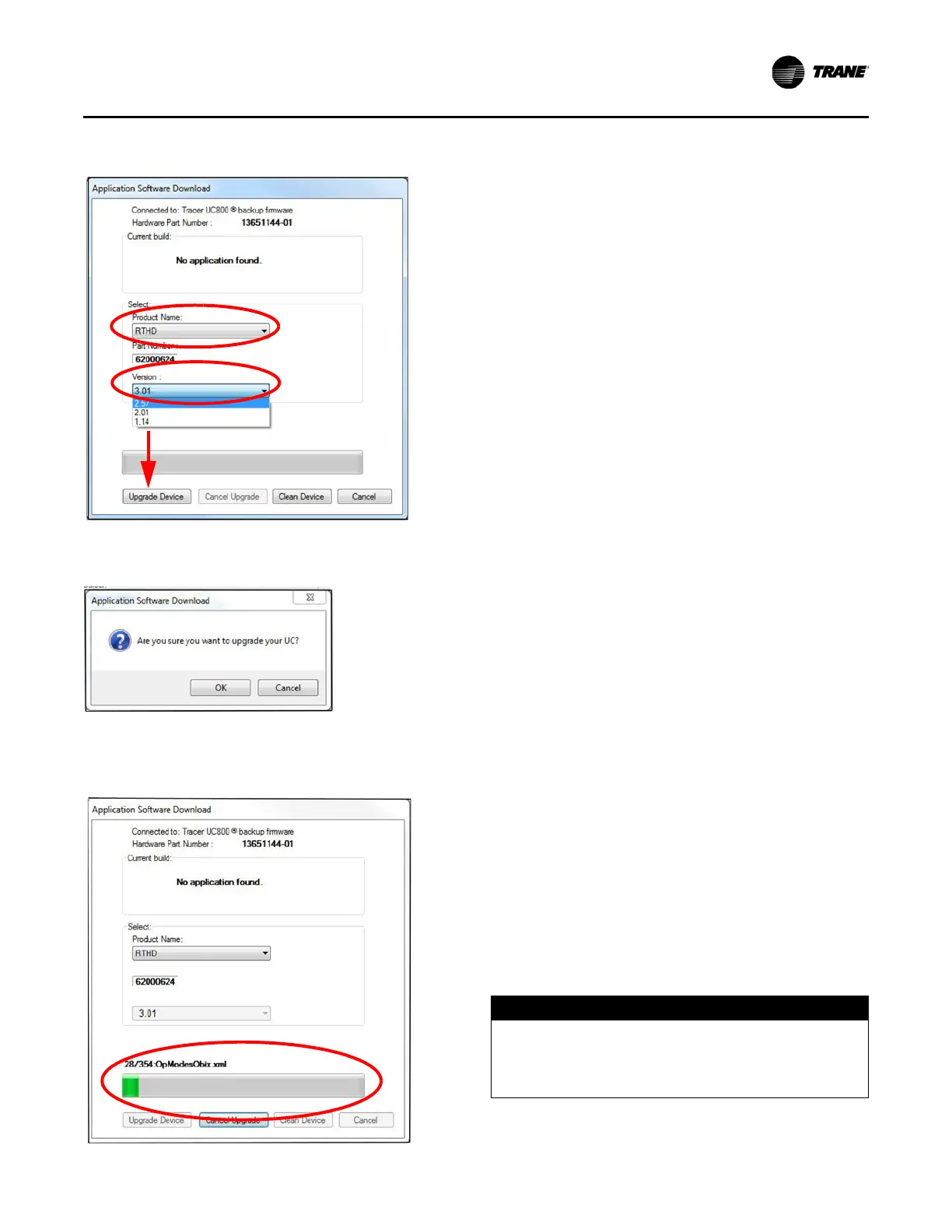

5. A confirmation dialog box appears. Click OK to continue.
6. The download’s progress is indicated by a bar at the
bottom of the Application Software Download dialog box.
The remainder of the software installation process is very
similar to the procedure included in “UC800 Software
Installation and Configuration,” p. 50, except that most of the
configuration and settings are carried through in this
application. Proceed with Step 8, p. 52 (included in the
procedure “UC800 Software Installation and Configuration,”
p. 50).
Drive Settings
Important: Any AFDR drive module menu parameter
numbers not listed in this manual are non-
Trane specific program parameters. All non-
Trane specific program parameter values have
been set by the manufacturer before shipment,
to provide optimum drive performance. Under
no circumstances should any of the pre-set
values in these menu parameters be changed
unless specifically directed to do so by a factory
engineer or a factory technical support person.
Note: Refer to TR200 Programming Guide
(BAS-SVP04*-EN), for full program parameter details
and descriptions, and the instructions necessary to
operate the Local Control Panel (LCP) and program
the necessary drive parameters.
Refer to Table 16, p. 58 for a list of items that need to be set in
the frequency drive at startup. For additional information, refer
to the programming manual that is shipped with the drive. The
programming manual includes a detailed section that
discusses accessing the parameters in the drive.
This process is summarized briefly below:
1. To access the parameters, press the Main Menu key.
2. If required, enter the password (999).
3. To select a parameter group, use the up/down arrow keys
to highlight the parameter group, and then press the Enter
key to access that group.
4. Use the up/down arrow keys to access the parameter
number, and then press the OK key.
5. Use the up/down arrow keys to change the parameter, and
then press the OK key to change the setting.
Retrofit Air-Cooled RTHD
Adaptive Frequency Drive Model
AFDR (TR200)
Figure 100.
Figure 101.
Figure 102.
NOTICE
Compressor Damage!
Improper drive parameter settings could cause
compressor damage or failure. Verify drive parameters
are set correctly prior to unit operation.
