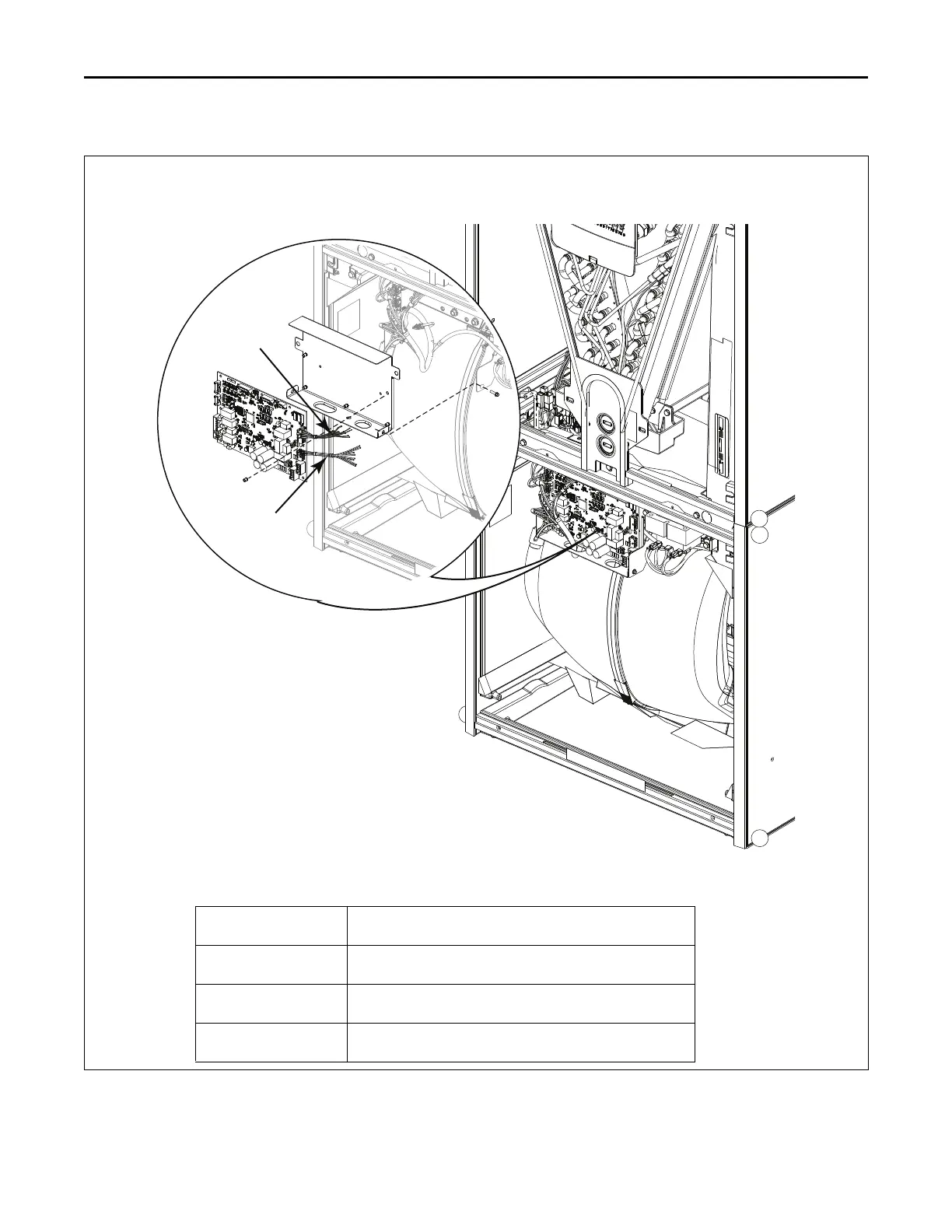

Table 24. Accessory Harness Installation
The accessory configurations can be done at either the UX360 User Interface in communicating mode or from the Diagnostics
Mobile App. The accessories need configured from the Diagnostics Mobile App in 24 volt mode.
24 Volt
Low Voltage
Harness
Accessory
Harness
Black Wires
Ext Switch 1
External condensate, Smoke Detector
White Wires
Ext Switch 2
External condensate, Smoke Detector
Blue Wires
Accessory 1
EAC, Humidifier (Fan assist/ Bypass) Steam Humidifier
Green Wires
Accessory 2
EAC, Humidifier (Fan Assist/ Bypass) Steam Humidifier
EElleeccttrriiccaall —— LLooww VVoollttaaggee
