Trane TAMXB0A24V21DB - Return Air Temperature Sensor

18-GJ89D1-1F-EN
63

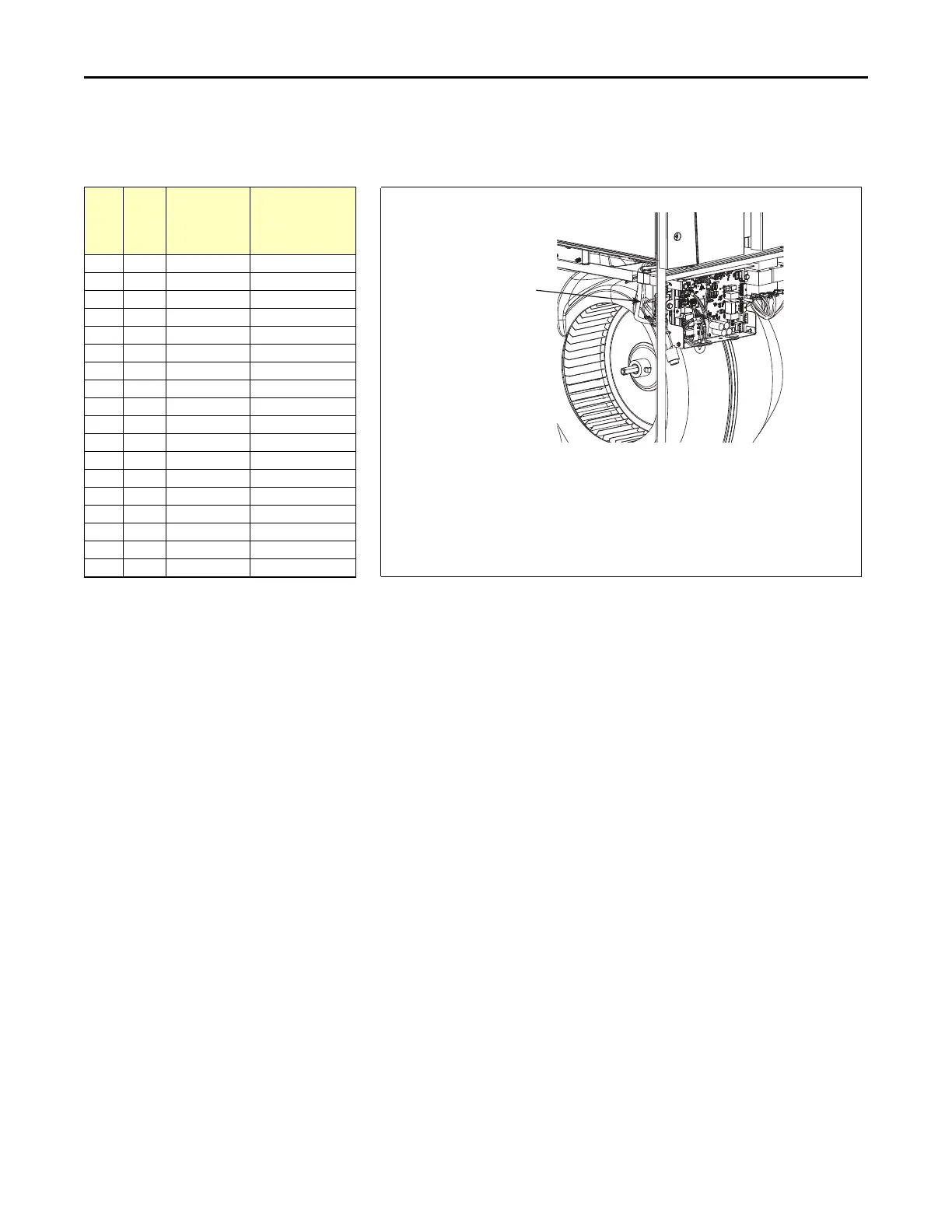

Return Air Temperature Sensor
Table 32. Thermal Resistance and Voltage Table
TEMP
0
F
TEMP
0
C
THERMISTOR
RESISTANCE
(OHMS)
Volts DC at J13
pins 1&2
(pin to pin)
Sensor
40 4.4 25452 1.85
45 7.2 22198 1.70
50 10.0 19405 1.55
55 12.8 17002 1.41
60 15.6 14930 1.28
65 18.3 13138 1.17
70 21.1 11586 1.06
75 23.9 10238 0.96
80 26.7 9065 0.87
85 29.4 8043 0.78
90 32.2 7150 0.71
95 35.0 6368 0.64
100 37.8 5682 0.58
105 40.6 5079 0.53
110 43.3 4548 0.48
115 46.1 4079 0.43
120 48.9 3665 0.39
125 51.7 3298 0.35
EETT // GGTT aanndd SSuuppppllyy AAiirr TTeemmppeerraattuurree SSeennssoorr
