Trane TAMXB0A24V21DB - Distance from Belly Band to Shaft Face of Motor for Minimum Vibration

54
18-GJ89D1-1F-EN

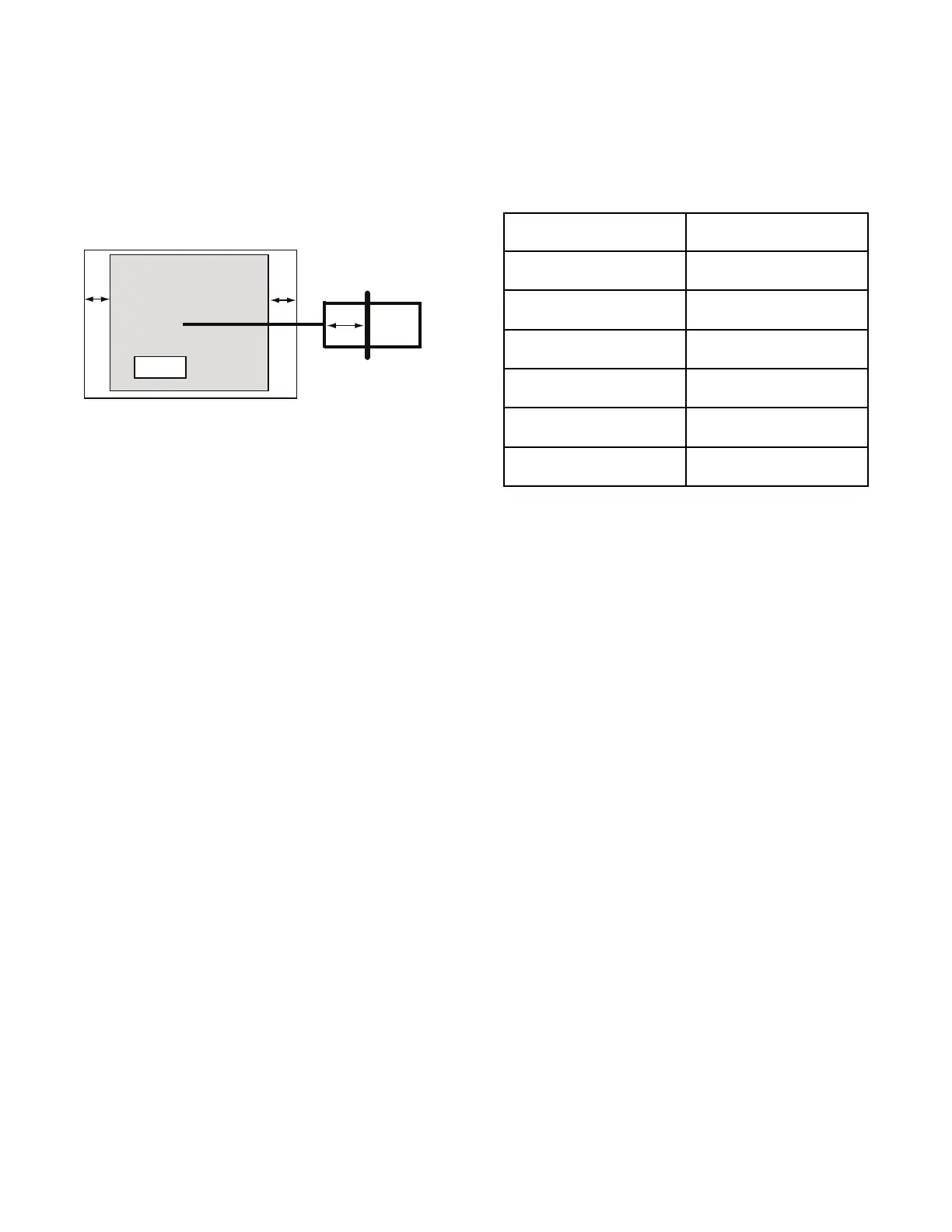

Distance from Belly Band to Shaft Face of Motor for
Minimum Vibration
WHEEL
BLOWER HOUSING
MOTOR
A
“A” is determined per chart
Wheel is centered in
Blower Housing
BELLY BAND
MODEL DIM “ A “
TAMXB0A24V21DB
2–3/8
TAMXB0B30V21DB
2–3/8
TAMXB0C36V31DB
2–3/8
TAMXB0C42V31DB
2–3/8
TAMXB0C48V41DB
2–3/8
TAMXB0C60V51DB
2–3/8
