Trane TAMXB0A24V21DB - Stepper Motor Tables-For Use with Low and High Superheat; Troubleshooting

60
18-GJ89D1-1F-EN

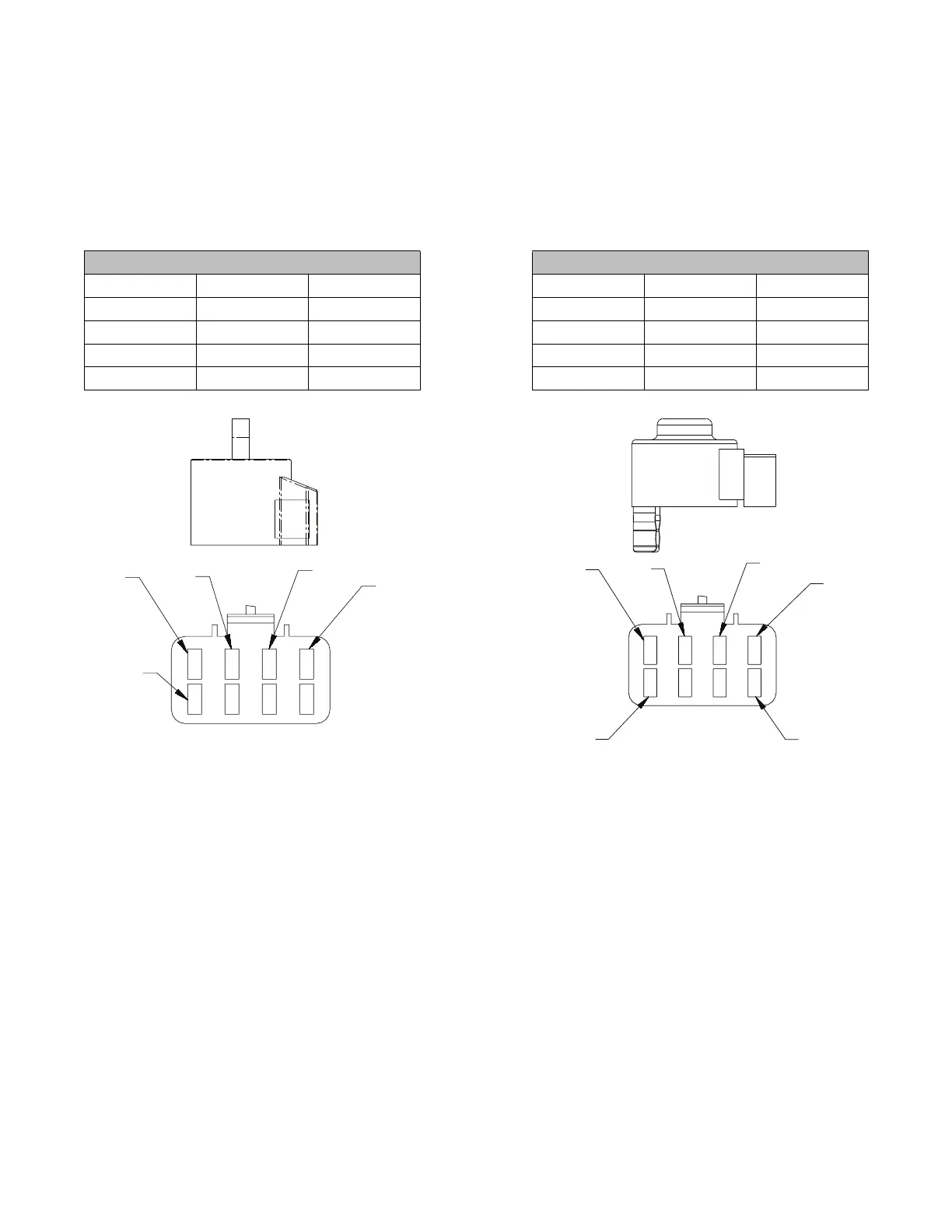

Stepper Motor Tables
—For use with Low and High Superheat
Troubleshooting
Table 1 — For use with FIG 1 Table 2— For use with FIG 2
Common Terminal to Terminal Measurement Common Terminal to Terminal Measurement
Gray Orange
46 ohms Brown Blue 46 ohms
Gray
Red 46 ohms Brown Yellow 46 ohms
Gray
Yellow 46 ohms Red
Orange
46 ohms
Gray
Black 46 ohms Red White 46 ohms
FIG 1
5
GRAY
(common)
4
BLACK
3
YELLOW
2
RED
1
ORANGE
5
BROWN
(common)
8
RED
(common)
4
BLUE
3
ORANGE
2
YELLOW
1
WHITE
FIG 2
