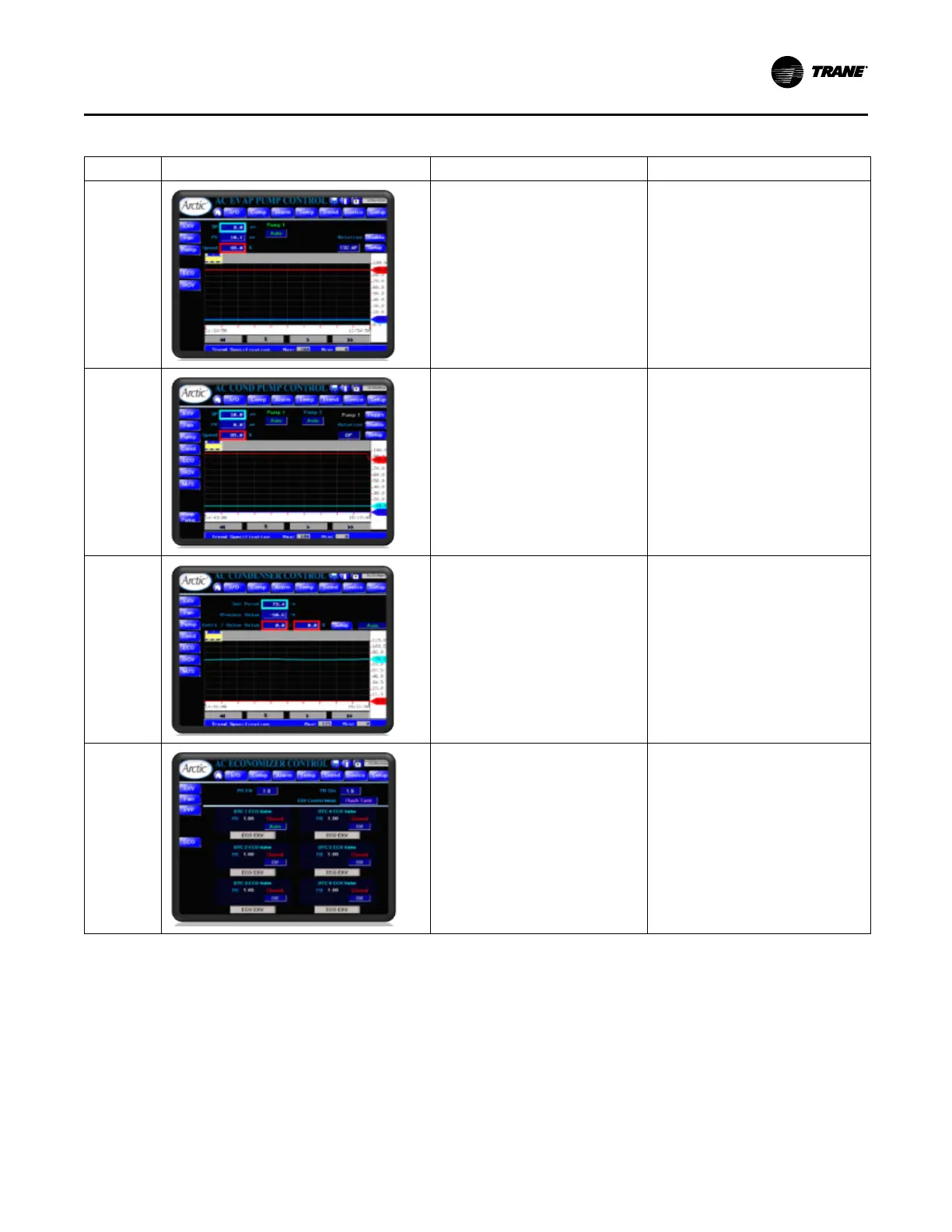

Table 9. HMI devices menu screens (continued)
Screen User Interface Function Access
Evaporator
Pumps
Control
• Displays trend and settings of
evaporator circuit pumps controls
(see “Condenser and Evaporator
Duty/Backup Pumps,” p. 57).
• Provides access to condenser
pumps control screen.
Main Menu > Devices Menu > Pump
Condenser
Pumps
Control
• Displays trend and settings of
condenser circuit pumps controls
(see “Condenser and Evaporator
Duty/Backup Pumps,” p. 57).
• Provides access to evaporator
pumps control screen.
Main Menu > Devices Menu > Pump >
Cond Pump
Condenser
Valve
Control
Displays trend and settings of condenser
circuit bypass valve controls (see
“Condenser Control,” p. 39).
Main Menu > Devices Menu > Cond
Economizer
Control
Display and configure economizers
settings and parameters (see
“Economizer Control,” p. 60).
Main Menu > Devices Menu > ECO
