Trane Thermo King TriPac EVOLUTION - Page 48

48
TK 55676-19-IM-EN

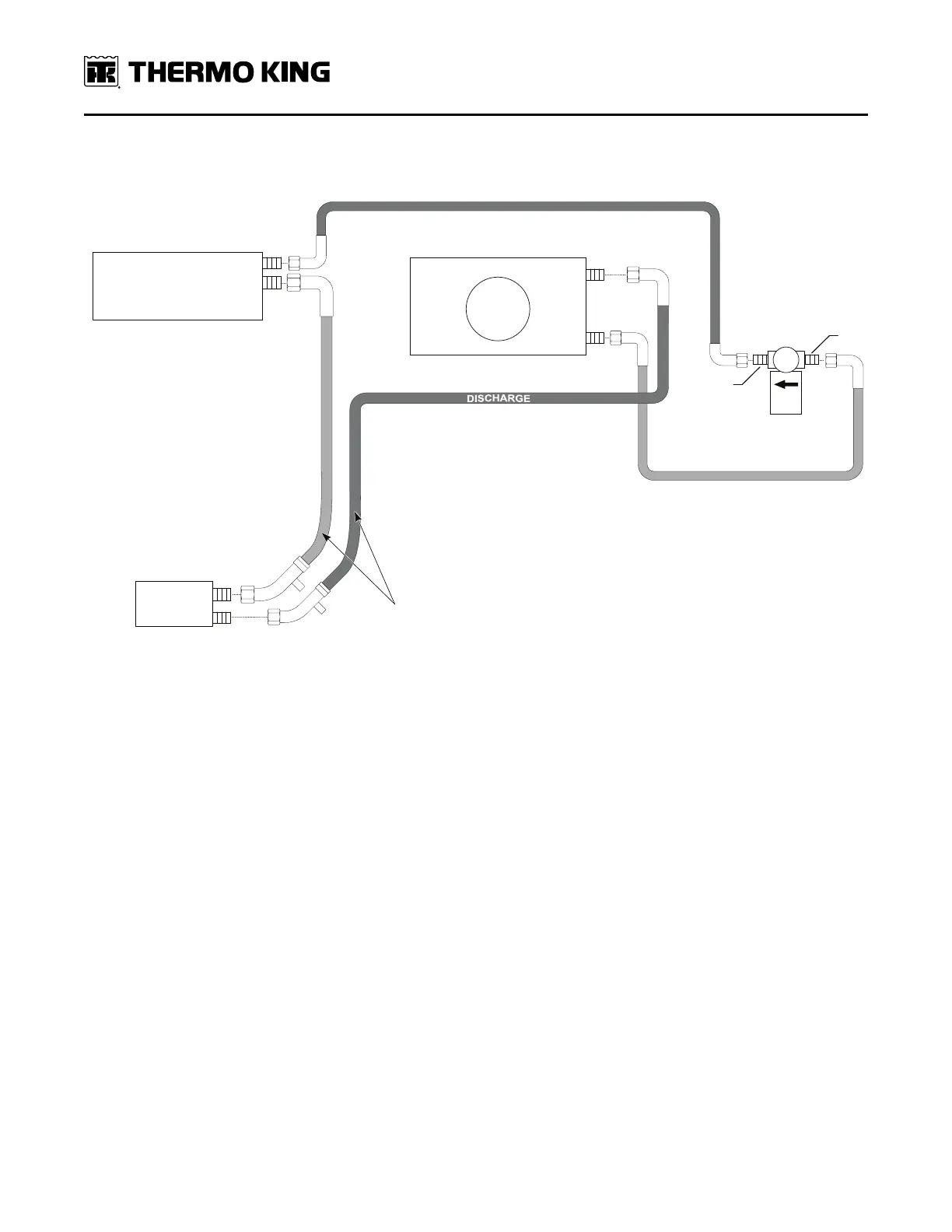

Figure 26. A/C Hose Diagram Shown
RSC137-1
#10
#6
#6
EVAPORATOR
CONDENSER
RECEIVER
DRIER
#10
#8
#6
#6
#8
LIQUID
COMPRESSOR
OUTLET
INLET
SUCTION
IMPORTANT: The suction and discharge hoses must be secured to the refrigerant hose
support bracket exactly as shown in the previous illustration.
AA//CC HHoossee IInnssttaallllaattiioonn
