TK 55676-19-IM-EN
69
APU Fuel Line Installation
Special Tools Required
Utility Knife
NNoottee:: Be sure to connect the APU’s fuel supply line to the fuel SUPPLY pickup tube connection identified and marked
earlier
1. Route APU fuel supply line to SSUUPPPPLLYY connection of fuel pickup tube, cut to proper length and attach with
compression fittings.
2. Route APU fuel return line to RREETTUURRNN connection of fuel pickup tube, cut to proper length and attach with
compression fittings.
3. Route and secure all fuel lines with adequate clamps.

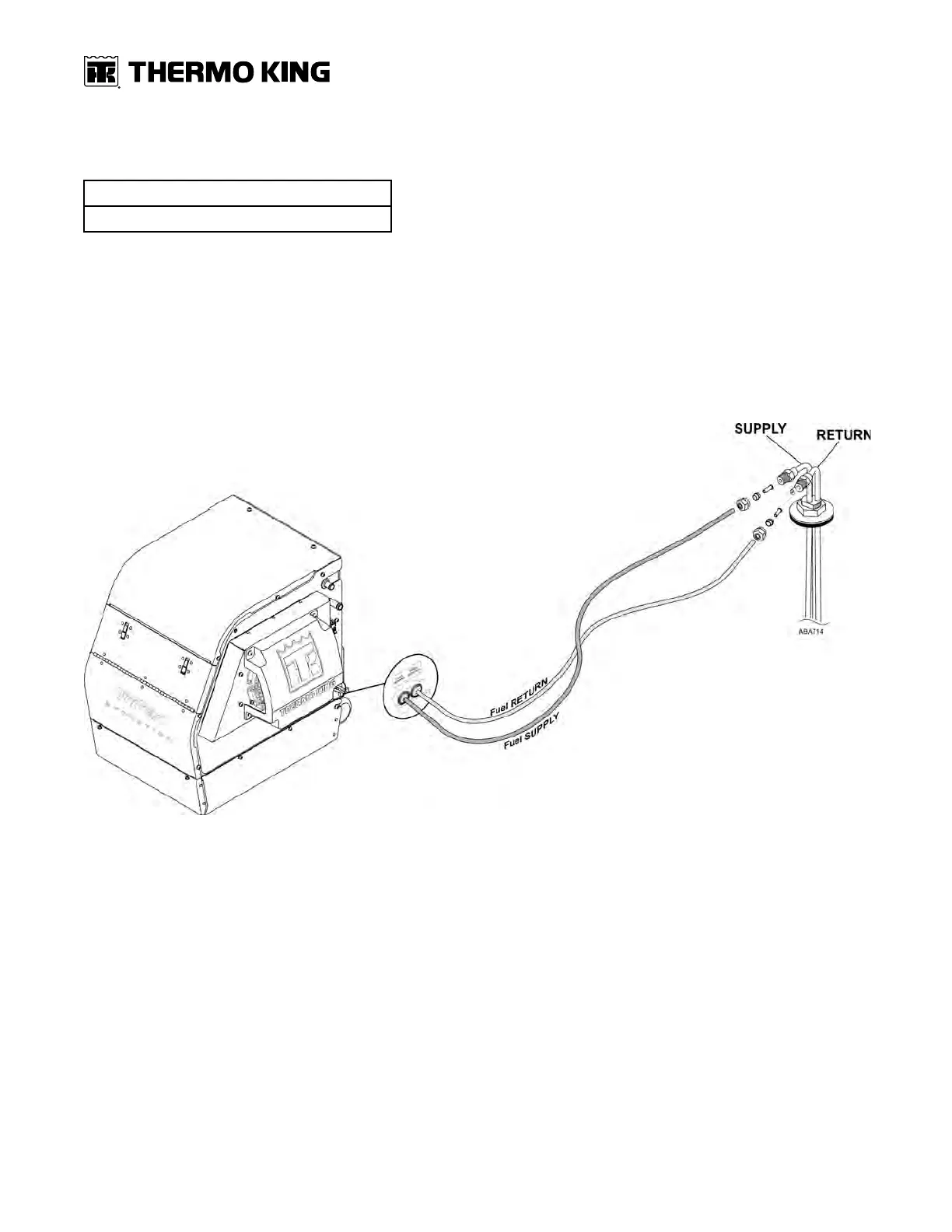

Figure 39. APU Fuel Line Installation Shown
