Trane Tracer CH530 User Manual

DynaView Interface
RLC-SVU05A-E410
Main Screens
The Main screen is a “dashboard”
of the chiller. High level status
information is presented so that a
user can quickly understand the
mode of operation of the chiller.
The Chiller Operating Mode will
present a top level indication of the
chiller mode (i.e. Auto, Running,
Inhibit, Run Inhibit, etc.) The
“additional info” icon will present a
subscreen that lists in further detail
the subsystem modes.

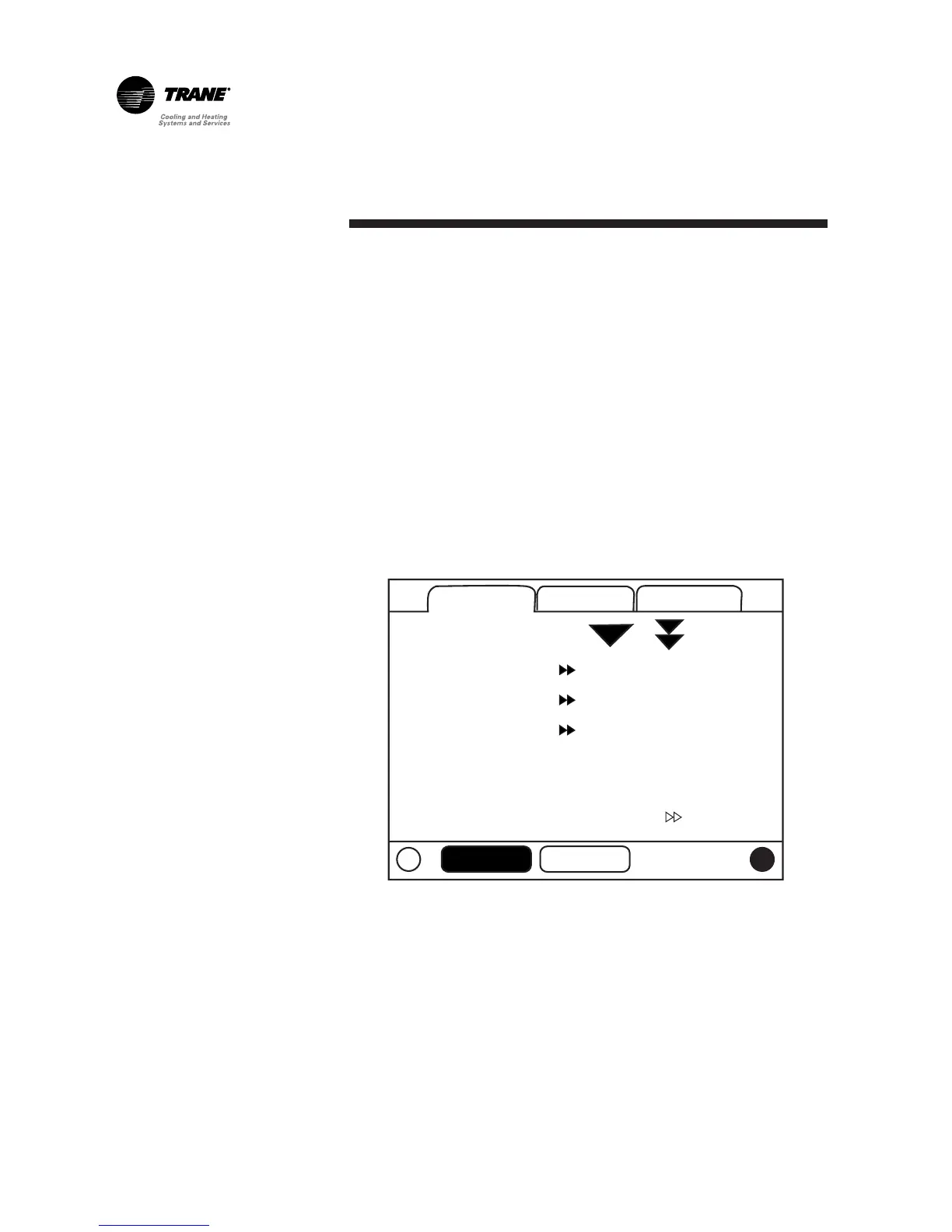

Figure 7 - Main screen
Main
Main
Reports
Reports
Settings
Settings
Auto
Auto
Stop
Stop
Chiller Mode:
Circuit 1 Mode:
Circuit 2 Mode:
Evap Ent / Lvg Water Temp:
Cond Ent / Lvg Water Temp:
Active Chilled Water Setpoint:
Running
Running - Limit
Auto
12 / 7 C
30 / 35 C
7 C
The Main screen shall be the default
screen. After an idle time of
30 minutes the CH530 shall display
the Main screen with the first data
fields. The remaining items (listed
in the following table) will be
viewed by selecting the up/down
arrow icons.

Trane Tracer CH530 Specifications

General

Series	Tracer CH530
Input Voltage	24 VAC
Communication Protocols	BACnet, LonWorks
Compatibility	Trane
Product Type	Chiller controller
Memory	Flash memory for program storage
Dimensions	Varies depending on the specific model and enclosure. (Example: Approximately 250mm x 200mm x 100mm)
Weight	Varies by configuration
