Trane Tracer CH530 User Manual

DynaView Interface
11RLC-SVU05A-E4
Table 1 - Main Screen Data Fields Table
Description Units Resolution Dependencies
1. Chiller Mode (>> submodes) enumeration
2. Circuit 1 Mode (>> submodes) enumeration
3. Circuit 2 Mode (>> submodes) enumeration
4. Evap Ent/Lvg Water Temp F / C 0.1
5. Cond Ent/Lvg Water Temp F / C 0.1
6.
F / C 0.1
7.
F / C 0.1 Hot Water Option installed only
8. Average Line Current %RLA 1
9.
% RLA 1
10. Active Ice Termination Setpoint
11. (>>front panel setpoint) F / C 0.1 If Ice Building Option is installed
12. Outdoor Air Temperature F / C 0.1 Only if OA sensor is installed
13. Software Type enumeration RTWD / RTUD
14. Software Version X.XX

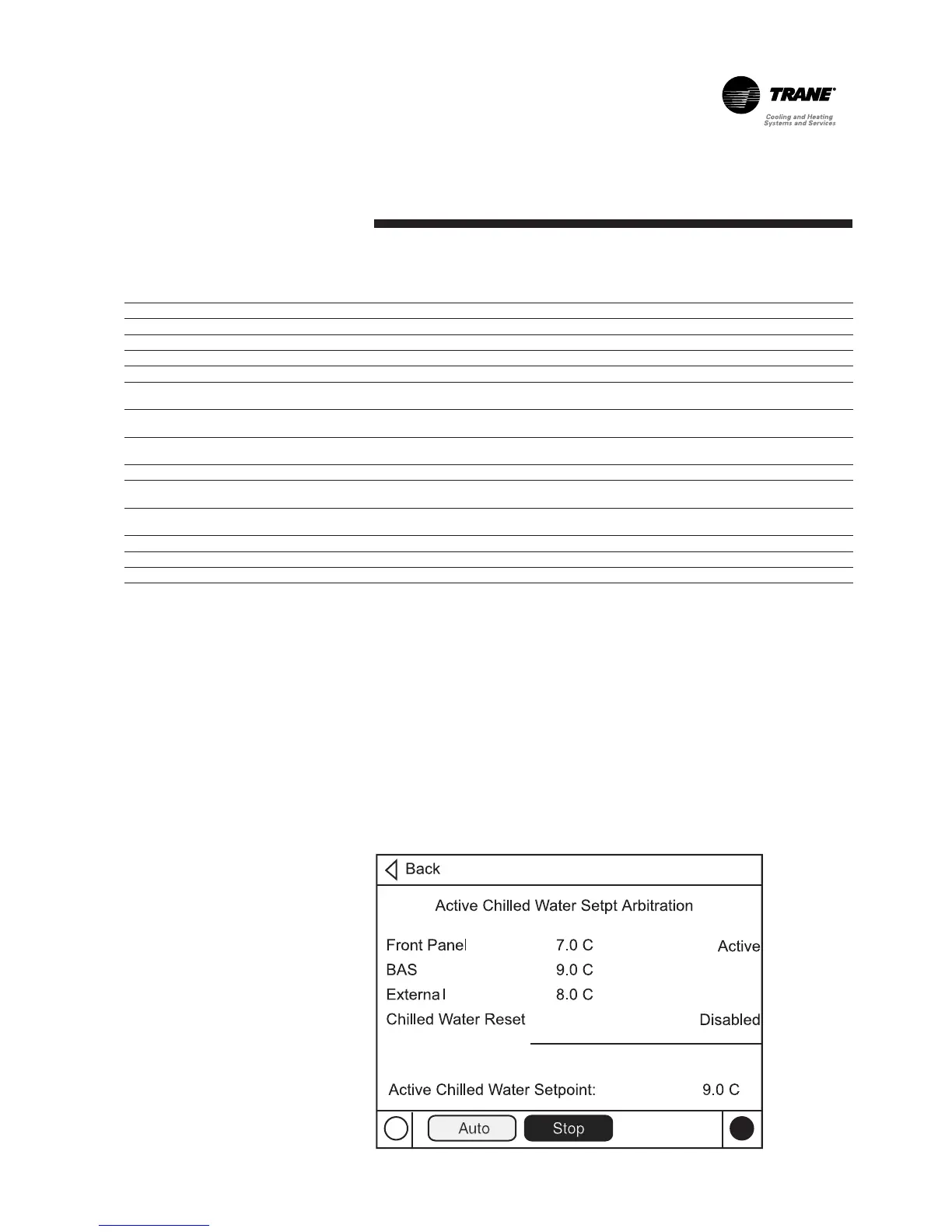

Figure 8 - Active Chilled Water Subscreen
:
Active Water Setpoint Arbitration
Subscreen
The active water setpoint is that
setpoint to which the unit is
currently controlling. It is the result
of arbitration between the front
panel, BAS, and external setpoints.
The active chilled water water
setpoint may also be subjected to a
form of chilled water reset.
Touching the double arrow to the
left of the Active Chilled Water
Setpoint or to the left of the Active
Hot Water Setpoint will take the
user to the respective active water
setpoint arbitration sub-screen.
Chiller Mode
The machine-operating mode
indicates the operational status of
the chiller. A subscreen with
additional mode summary
information will be provided by
selection of an additional
information icon (>>). The
operating mode line will remain
stationary while the remaining
status items scroll with the up/down
arrow keys.
Active Chilled Water Setpoint and
Active Hot Water Setpoint
The active chilled water setpoint is
the setpoint that is used in cool
mode. The active hot water setpoint
is the setpoint that is used in heat
mode. Both setpoints result from
the logical hierarchy of setpoint
arbitration by the main processor.
The water setpoint will be displayed
to 0.1 degrees Fahrenheit or
Celsius.
Active Chilled Water Setpoint (>>source) (>> front panel setpoint) -
from arbitration setpoint screen
Active Current Limit Setpoint (>> source) (>> front panel
setpoint) - from arbitration setpoint screen
Active Hot Water Setpoint (>>source) (>> front panel
setpoint) - from arbitration setpoint screen
Water Cooled only (i.e. RTWD or
RTUD with ACFC=None)
