Trane Tracer CH530 User Manual

DynaView Interface
9RLC-SVU05A-E4
The bottom of the screen (7) is
present in all screens and contains
the following functions. The
contrast (8,9) may require re-
adjustment at ambient
temperatures significantly different
from those present at last
adjustment. The other functions are
critical to machine operation. The
AUTO and STOP keys are used to
enable or disable the chiller. The
key selected is in black (reverse
video). The chiller will stop when
the STOP key is touched and after
completing the Run Unload mode.
Touching the AUTO key will enable
the chiller if no diagnostic is
present. (A separate action must be
taken to clear active diagnostics.)
The AUTO and STOP keys take
precedence over the Enter and
Cancel keys. (While a setting is
being changed, AUTO and STOP
keys are recognized even if Enter or
Cancel has not been pressed.) The
ALARMS button appears only when
an alarm is present, and blinks (by
alternating between normal and
reverse video) to draw attention to
a diagnostic condition. Pressing the
ALARMS button takes you to the
corresponding tab for additional
information.
Note: screens may differ according
to unit type or configuration. They
should be considered as examples.
Keypad/Display Lockout
Feature

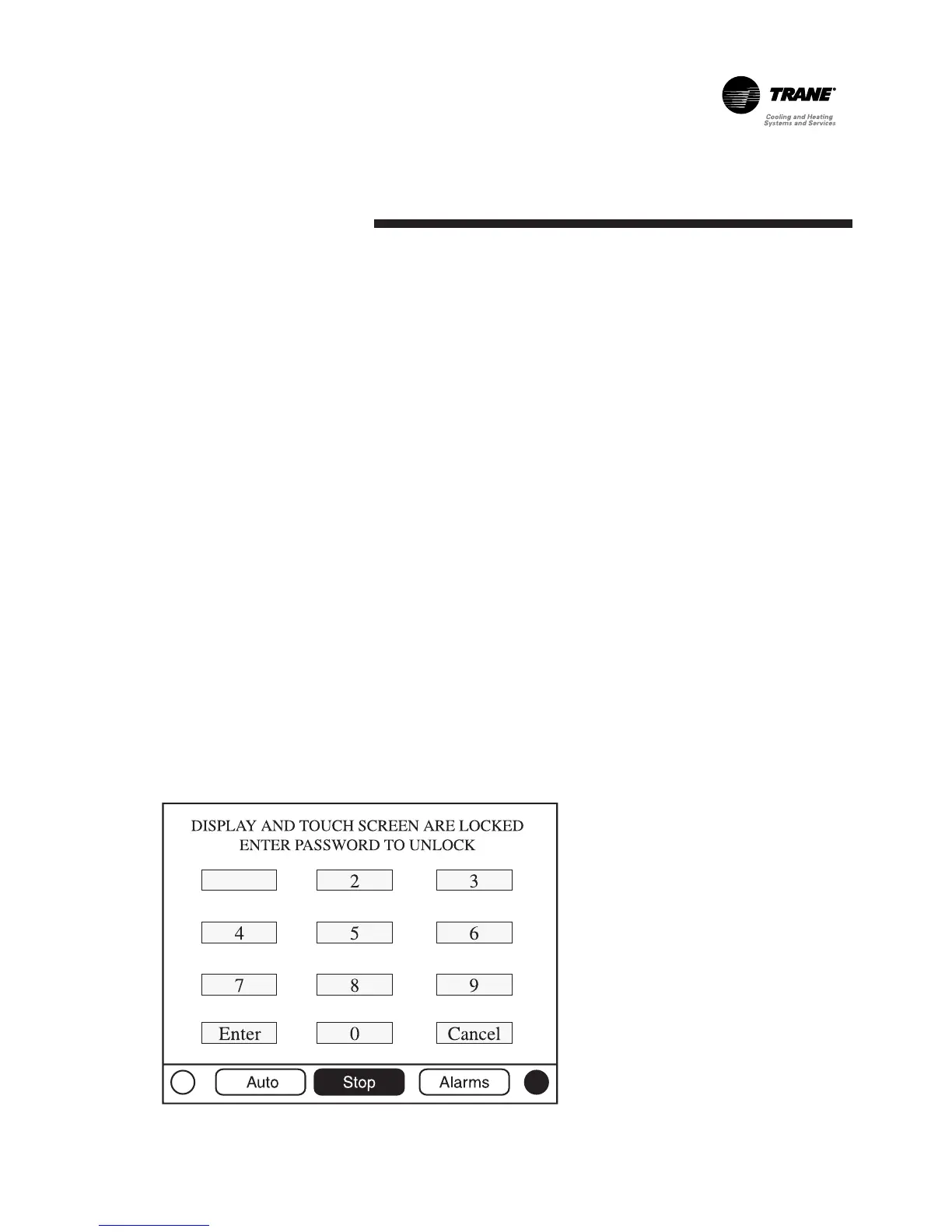

Note: The DynaView display and
Touch Screen Lock screen is shown
above. This screen is used if the
Display and touch screen and lock
feature is enabled. Thirty minutes
after the last keystroke, this screen
is displayed and the Display and
Touch Screen is locked out until the
sequence "159 <ENTER>" is
pressed. Until the proper password
is entered, there will be no access
to the DynaView screens including
all reports, setpoints, and
Auto/Stop/Alarms/Interlocks. The
password "159" can not be changed
from either DynaView or TechView.
For setting changes, use the
password "314 <ENTER>".
System/Circuit Selection Buttons
On some report and setting screens,
radio buttons on the top of the
screen shall be presented to allow
the user to select subscreens based
on system-level data and per-circuit
data.
For single-circuit units with
system/circuit selection buttons, the
buttons shall be labeled (in English)
“System” and “Ckt”. For two-circuit
units with system/circuit selection
buttons, the buttons shall be
labeled “System”, “Ckt1”, and
“Ckt2”.
Figure 6 - Keypad
1

Trane Tracer CH530 Specifications

General

Series	Tracer CH530
Input Voltage	24 VAC
Communication Protocols	BACnet, LonWorks
Compatibility	Trane
Product Type	Chiller controller
Memory	Flash memory for program storage
Dimensions	Varies depending on the specific model and enclosure. (Example: Approximately 250mm x 200mm x 100mm)
Weight	Varies by configuration
