Mounting the Module
This Section provides information about the following:
• Location recommendations
• Operating environment requirements
• Mounting recommendations
Location Recommendations
Trane recommends locating the MP503:
• Near the controlled equipment to reduce wiring costs
• Where it is easily accessib
le fo
r service personnel
• Where public access is restricted to minimize the possibility of tampering or vandalism
Operating Environment Requirements
Operate the MP503 in an environment that meets the following requirements:
• Temperature: –40°F to 158°F (–40°C to 70°C)
• Relative humidity: 5–95%, non-condensing
Mounting Recommendations
Important:
Leave the cover on when mounting the MP503 to avoid the possibility damaging the
circuit board during installation.
Mounting recommendations are as follows:
• Mount the module in any direction, other than
with
the front of the cover facing downward.
• Mount using the two 3/16 in. (4.8 mm) radius mountin
g holes provided (refer to Figure 4).
Mounting fasteners are not included.
• Attach the module securely so it can withstand vibrations of associated heating, ventilating,
an
d air-co
nditioning (HVAC) equipment.
• If the module is mounted in a small enclosed compartment, complete all wiring
connections
before securing the module in the compartment.

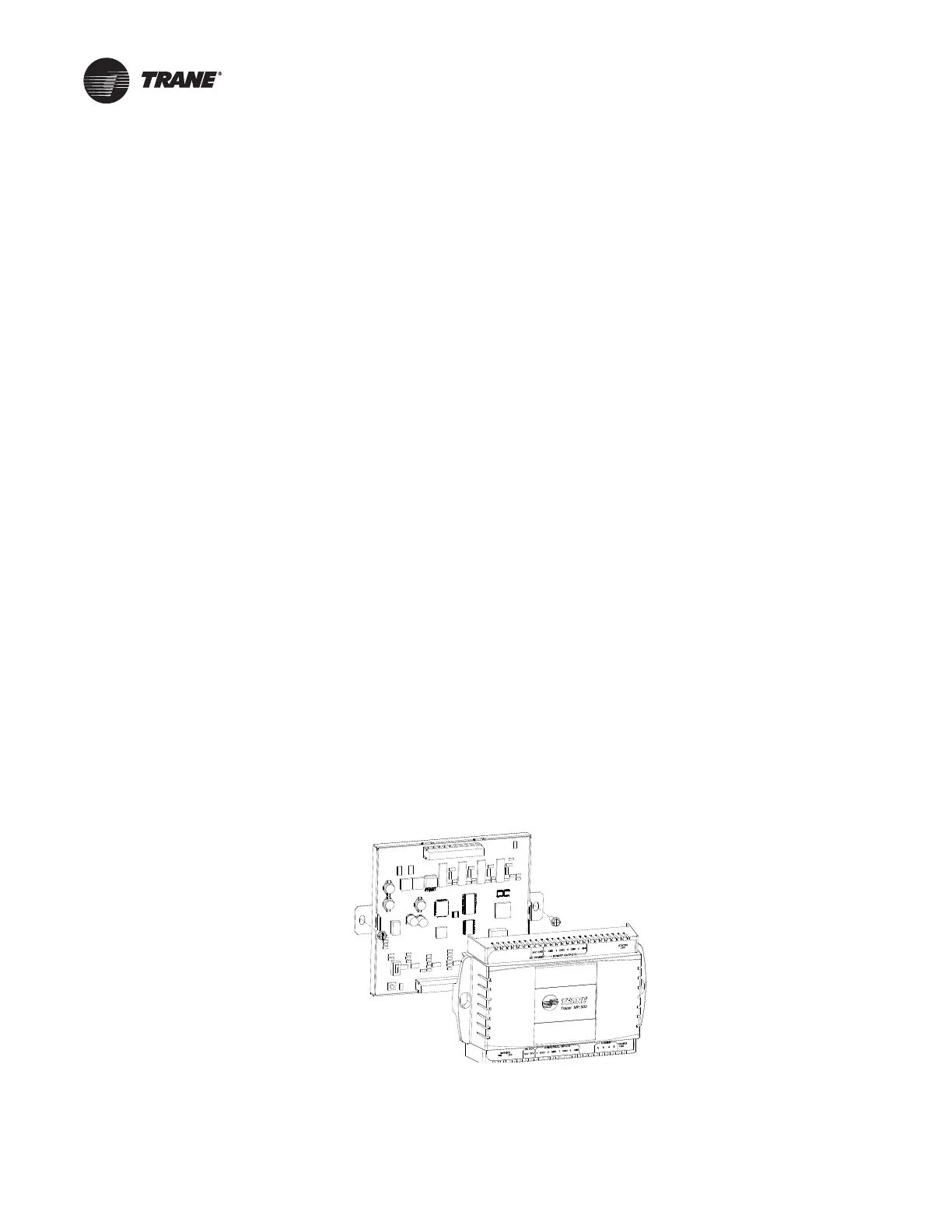

Figure 4. Mounting the MP503
