Standard End Devices
Humidity Sensor Sensing Element Polymer capacitive
Sensing Element Accuracy: ± 5% over 20-95% RH @ 77ºF
Range 0 to 99% RH
Operating Temperature Range 0°F to 140ºF
Max Supply Voltage 24VDC
Output Characteristics 4 to 20 MA for 0-100% RH
Drift Rate Less than 1% per year
CO
2
Sensor Sensing Element Accuracy: ± 100ppm full scale
Range 0-2000 ppm
Operating Temperature Range 59°F to 95ºF
Supply Voltage 24VAC
Output Characteristics 0-10 VDC for 0-2000 ppm
Power consumption 10 VA
Drift Rate ±5% full scale over four years
Fan Relay
Contact Rating
20 amps at 120/240 vac
3/4 hp at 120 vac
1 1/2 hp at 240 vac
20 amps @ 28 vdc
DPDT
Terminals 0.25 quick connect
Contact material Silver-Cadium Oxide
Coil 24 vac 2.7 va

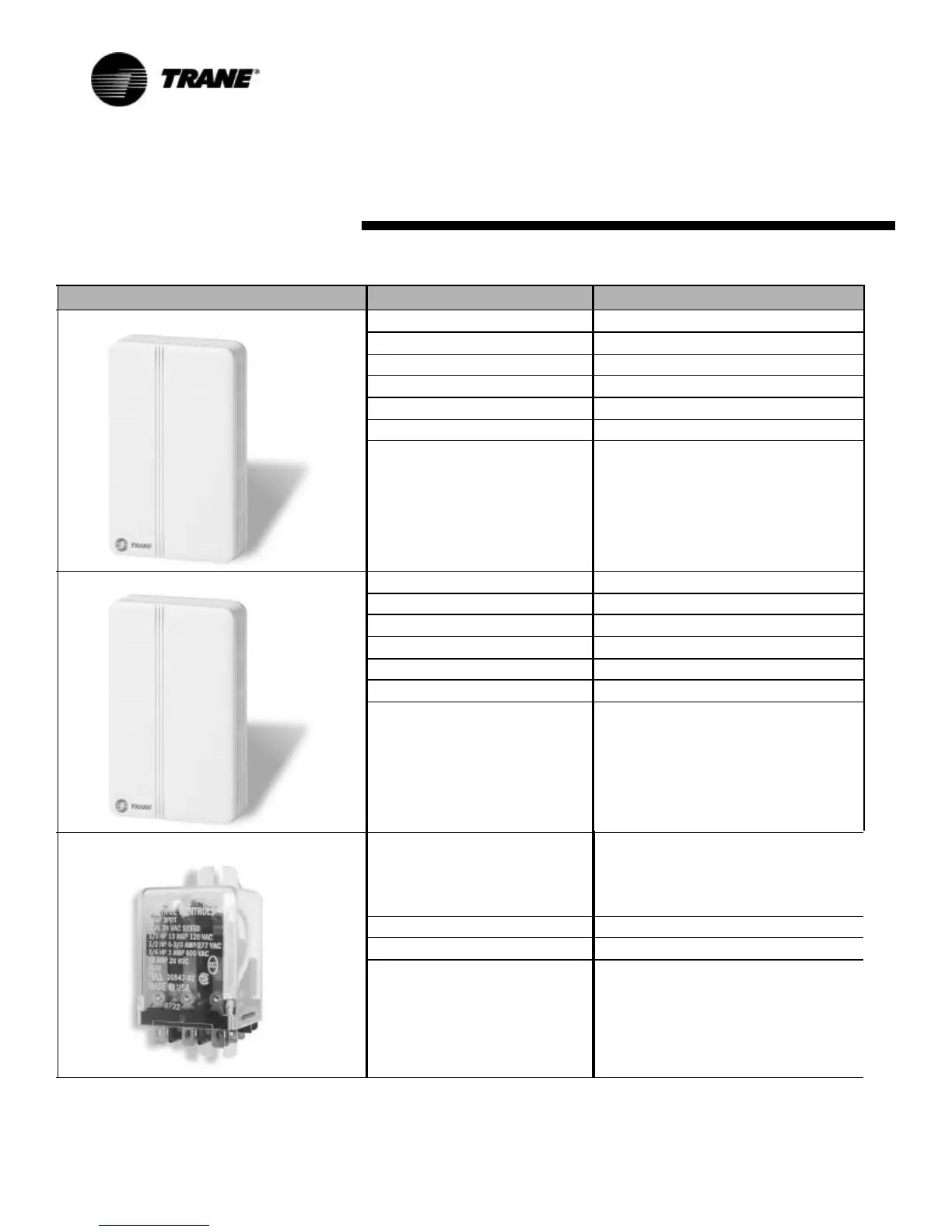

Table 2: End Device Specifications
