Standard End Devices
3-way Control Valve Description Three-point modulating
Ambient Temperature Rating 140°F at 95% relative humidity
Drive Time 50 seconds
Max Pressure 400 psi water
Close Off Varied by size and Cv
Temperature Water 200°F maximum
Time clock Size 2.83'' x 4.0'' x 2.06''
Power Consumption 4.4 VA
Switch SPDT dry contacts, silver cadmium oxide
Switch Rating 16A 250V resistive, 1000 Watts tungsten
Minimum Switching Current 100mA,230V
Shortest Switching Time 1 minute
Ambient Temperature Range -14°F to 131°F
Wiring Connections Screw terminals suitable for #10 to #24 AWG
Backup Seven day capacitor backup
Zone sensor
Zone Sensor Wiring Size And
Maximum Lengths
16-22 AWG: up to 200 feet

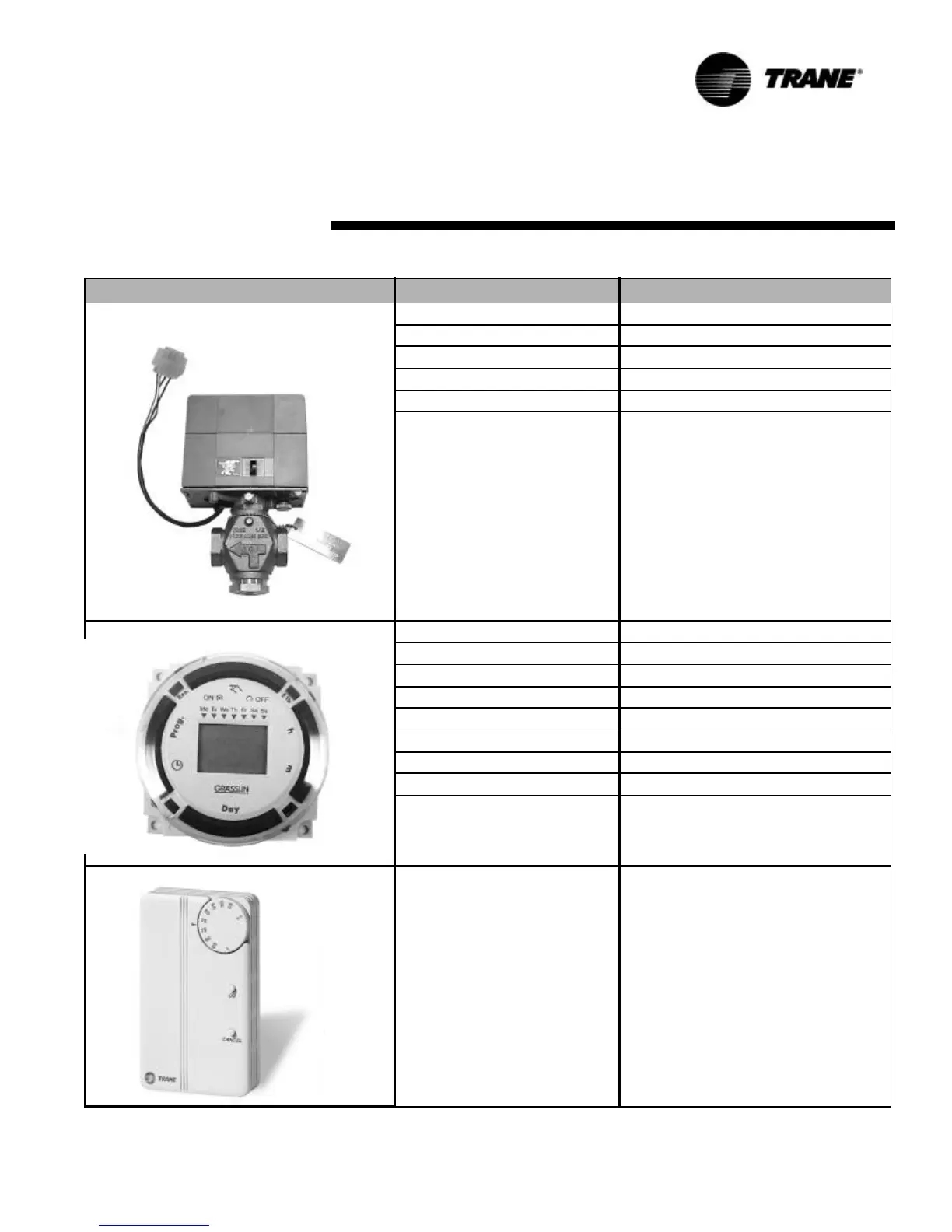

Table 2: End Device Specifications
