Chapter 3 Mounting the controller
12 CNT-SVX06B-EN
Mounting recommendations
Mounting recommendations are as follows:
▲IMPORTANT
Mount the Tracer ZN511 zone controller with the cover on to avoid the
possibility of damaging the circuit board during installation.
• Mount the controller in any direction, other than with the front of the
cover facing downward.
• Mount using the two
3
/
16
in. (0.19 mm) radius mounting holes pro-
vided (see Figure 4). Mounting fasteners are not included.
• Attach the controller securely so it can withstand vibrations of associ-
ated HVAC equipment.
• When the controller is mounted in a small enclosed compartment,
complete all wiring connections before securing the controller in the
compartment.

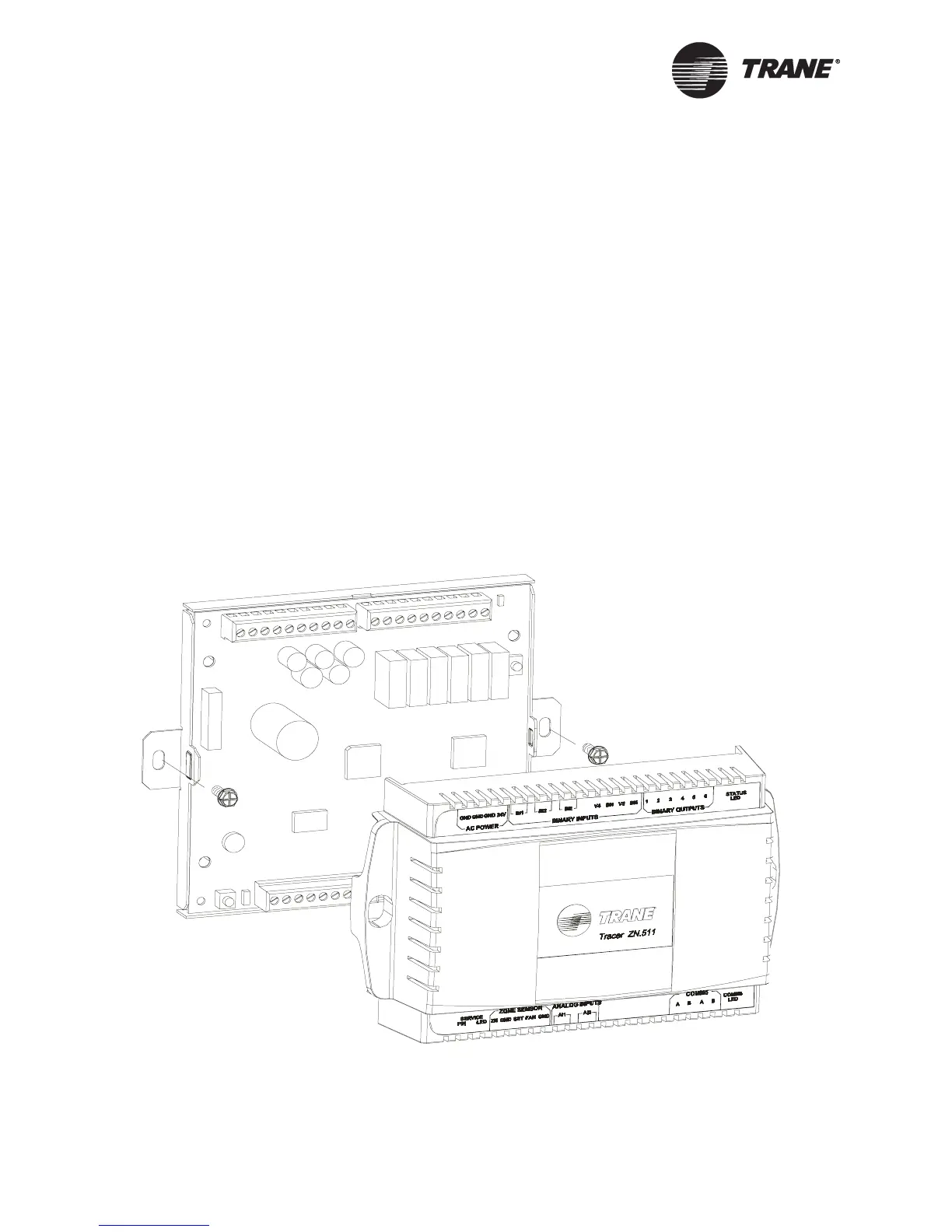

Figure 4. Mounting the Tracer ZN511 zone controller
