8 18-BC83D1-2

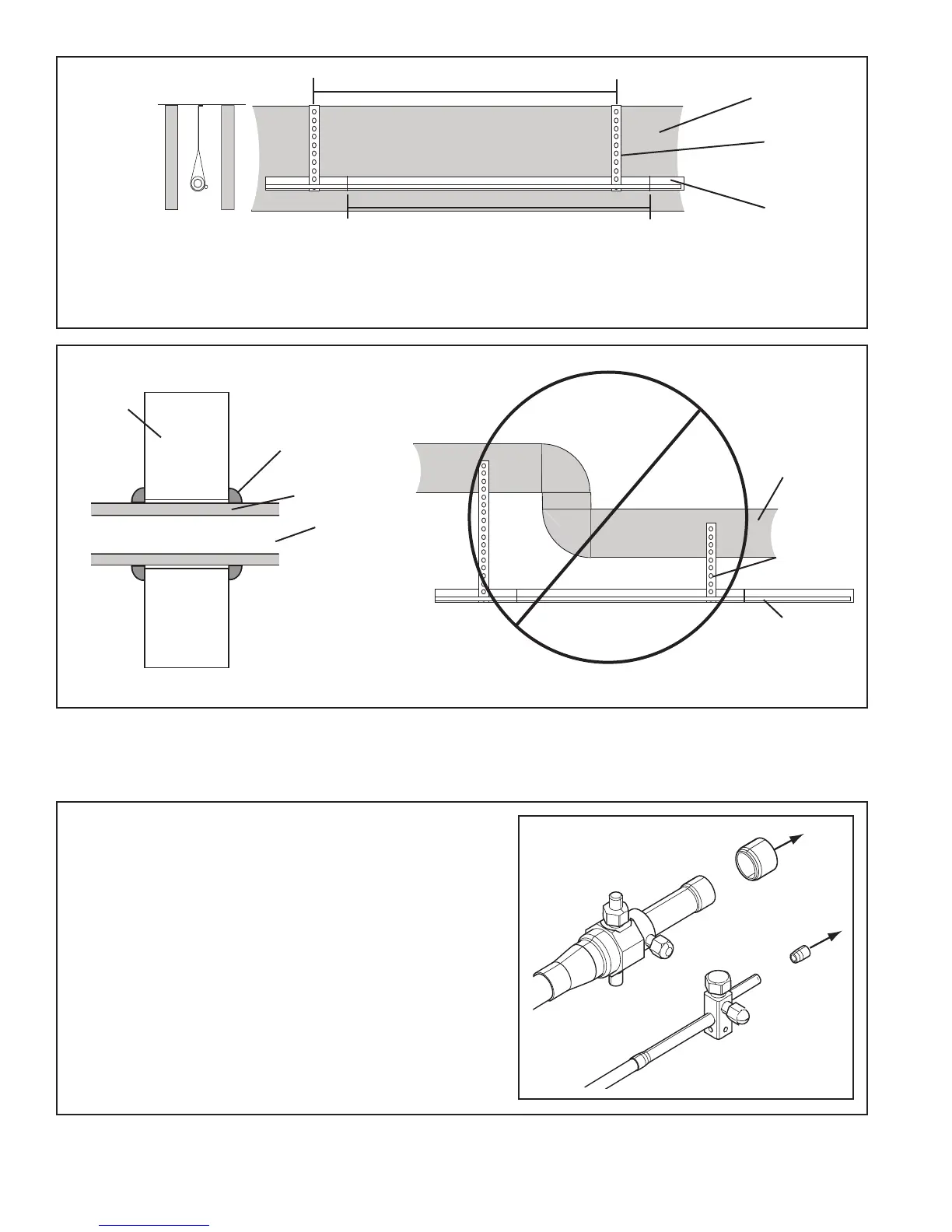

Isolation In Wall Spaces
Side View
Wall
Isolator
Line Set
8 Feet Maximum
Secure Vapor Line using isolators every 8 ft. Secure Liquid Line
directly to Vapor Line using tape, wire, or other appropriate
method every 8 ft.
8 Feet Maximum
Isolation Through Wall
DO NOT hang line sets from ductwork
Sealant
Insulation
Vapor Line
Wall
Ductwork
Isolator
Line Set
Section 7. Refrigerant Line Brazing
7.1 Braze The Refrigerant Lines
STEP 1 - Remove caps or plugs. Use a debur-
ing tool to debur the pipe ends. Clean both
internal and external surfaces of the tubing
using an emery cloth.

Trane XR13 Specifications

General

Sound Level	74 dB
Refrigerant	R-410A
Stages	Single-stage
SEER	14
HSPF	8.2
Compressor	Single-stage
Cooling Capacity	1.5 - 5 tons
Warranty	10 year limited warranty on compressor
