Unit Dimensions
Figure 1, p. 13 illustrates the minimum operating and
service clearances for either a single or multiple unit
installation.These clearances are the minimum distances
necessary to assure adequate serviceability, cataloged
unit capacity, and peak operating efficiency.
Providing less than the recommended clearances may
result in condenser coil starvation, “short-circuiting” of
exhaust and economizer airflows, or recirculation of hot
condenser air.

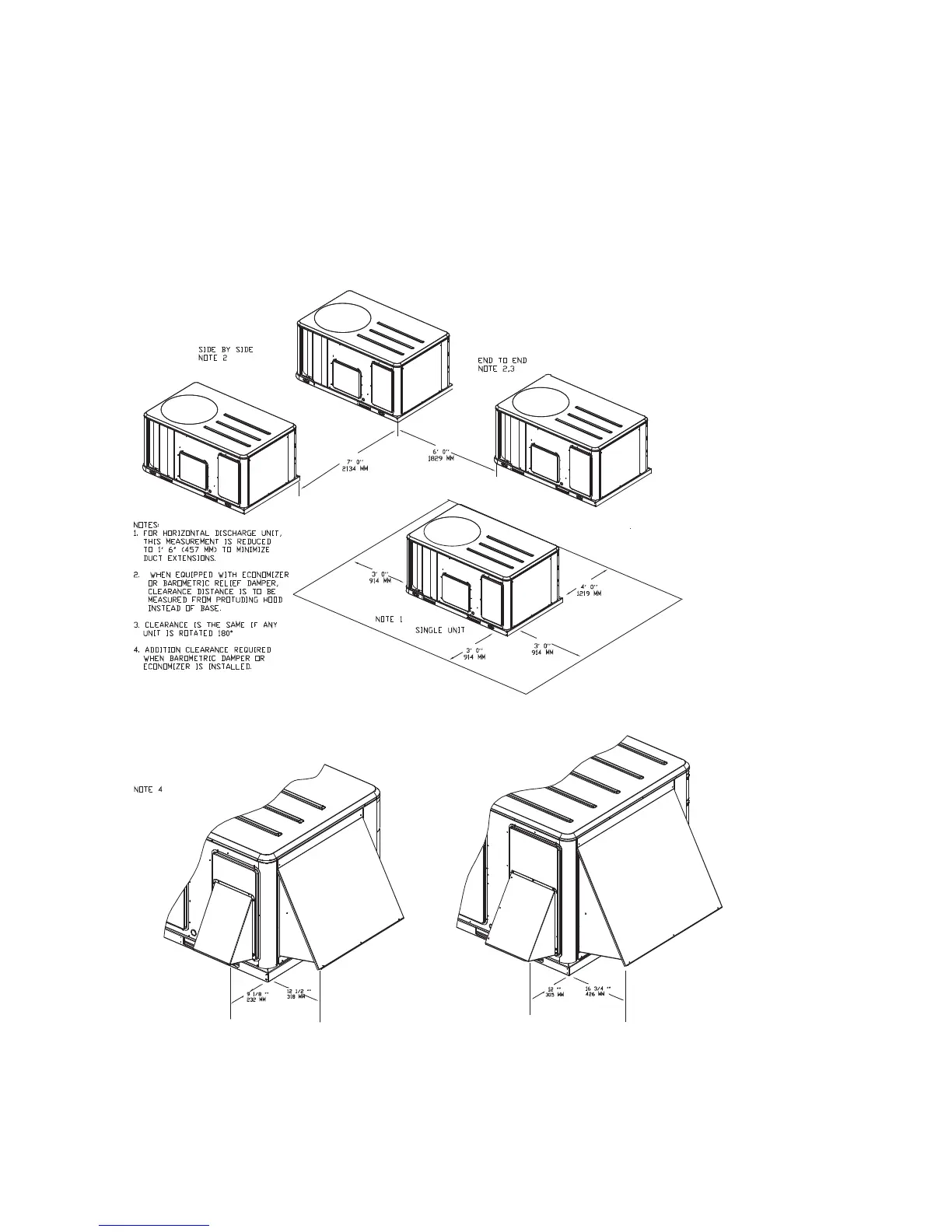

Figure 1. Typical installation clearances for single & multiple unit applications
YSC036-060E & YHC036E, YHC037E Units
YSC072-120F, YHC048-102F, YHC047-120E Units
