Installation
38 RT-SVX21N-EN
Smoke Detector Customer Low
Voltage Wiring
When interlocking APC Sensor smoke detectors together,
all of the detectors must be powered from the same power
supply. If the smoke detectors are powered up by different
power supplies, harmonics are set up and will fry the
boards in some, if not all, of the detectors.
If multiple smoke detectors are required, all detectors
must be disconnected from the HVAC unit power supply
and connected together from another single source
supply.
Note: Do not interconnect any smoke detectors together
that have separate power supplies. Do not exceed
ten smoke detectors on one power supply.
Note: Multiple APC Sensor smoke detectors are
connected together using terminals 1 and 12 on
each detector.
Space Temperature Averaging
(ReliaTel™ Only)
Space temperature averaging is accomplished by wiring a
number of remote sensors in a series/parallel circuit.
Using the BAYSENS016* or BAYSENS077*, at least four
sensors are required to accomplish space temperature
averaging. See diagram below.
Example #1 illustrates two series circuits with two
sensors in each circuit wired in parallel.The square of
any number of remote sensors is required.
Example #2 illustrates three sensors squared in a
series/parallel circuit. Using BAYSENS077*, two
sensors are required to accomplish space temperature
averaging.
Example #3 illustrates the circuit required for this
sensor. Table 7, p. 41 lists the temperature versus
resistance coefficient for all sensors.

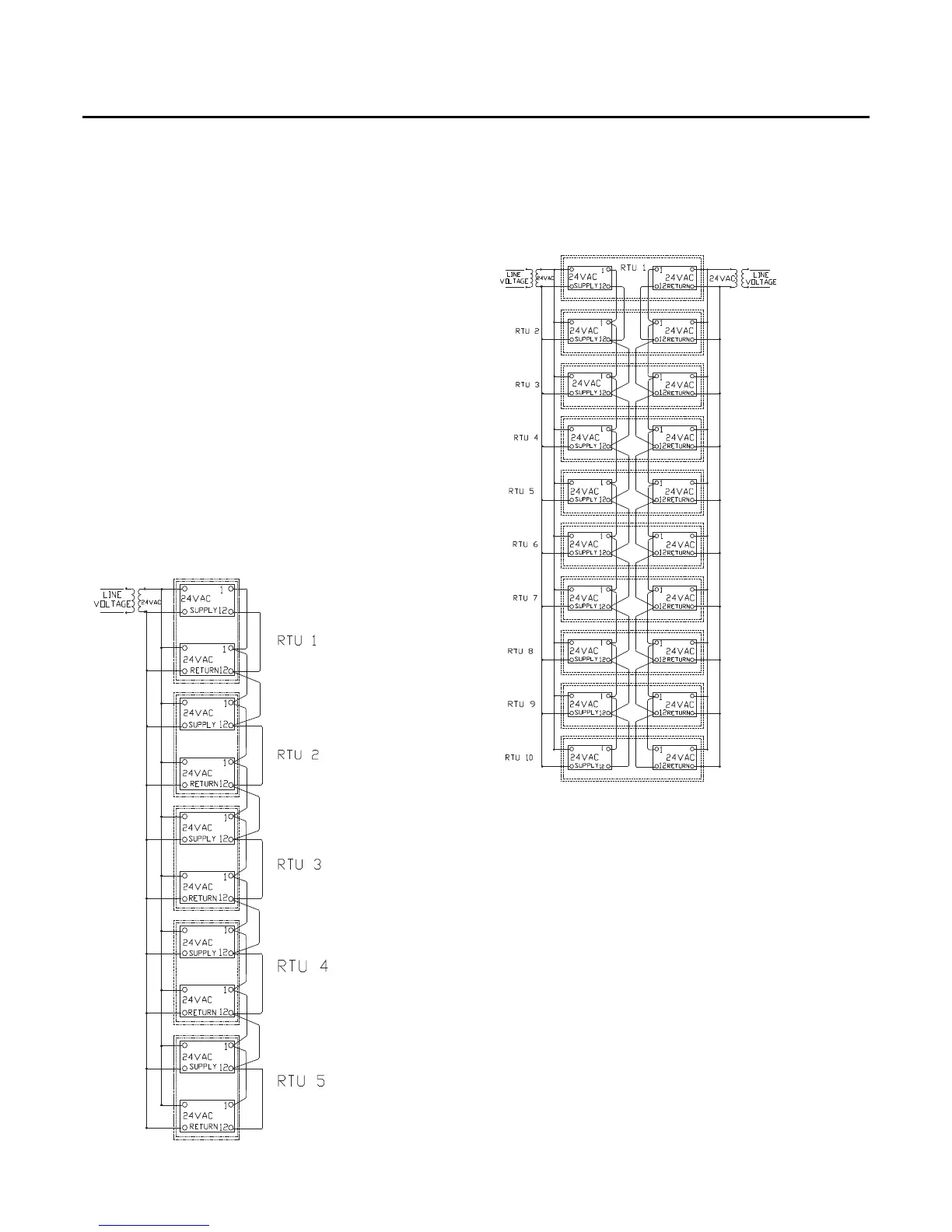

Figure 51. Up to 5 HVAC units
If you have supply and return smoke detectors in all HVAC
units, you can connect a maximum of 5 HVAC units (10
detectors) up to one power supply. See the following field
wiring example.
Figure 52. Up to 10 HVAC units
If you have more than 5 HVAC units, you can connect all
the supplies together on one power supply (up to 10
HVAC units), and all the returns together (up to 10 HVAC
units) on another power supply. See the following field
wiring example.
