RT-SVX31A-EN14

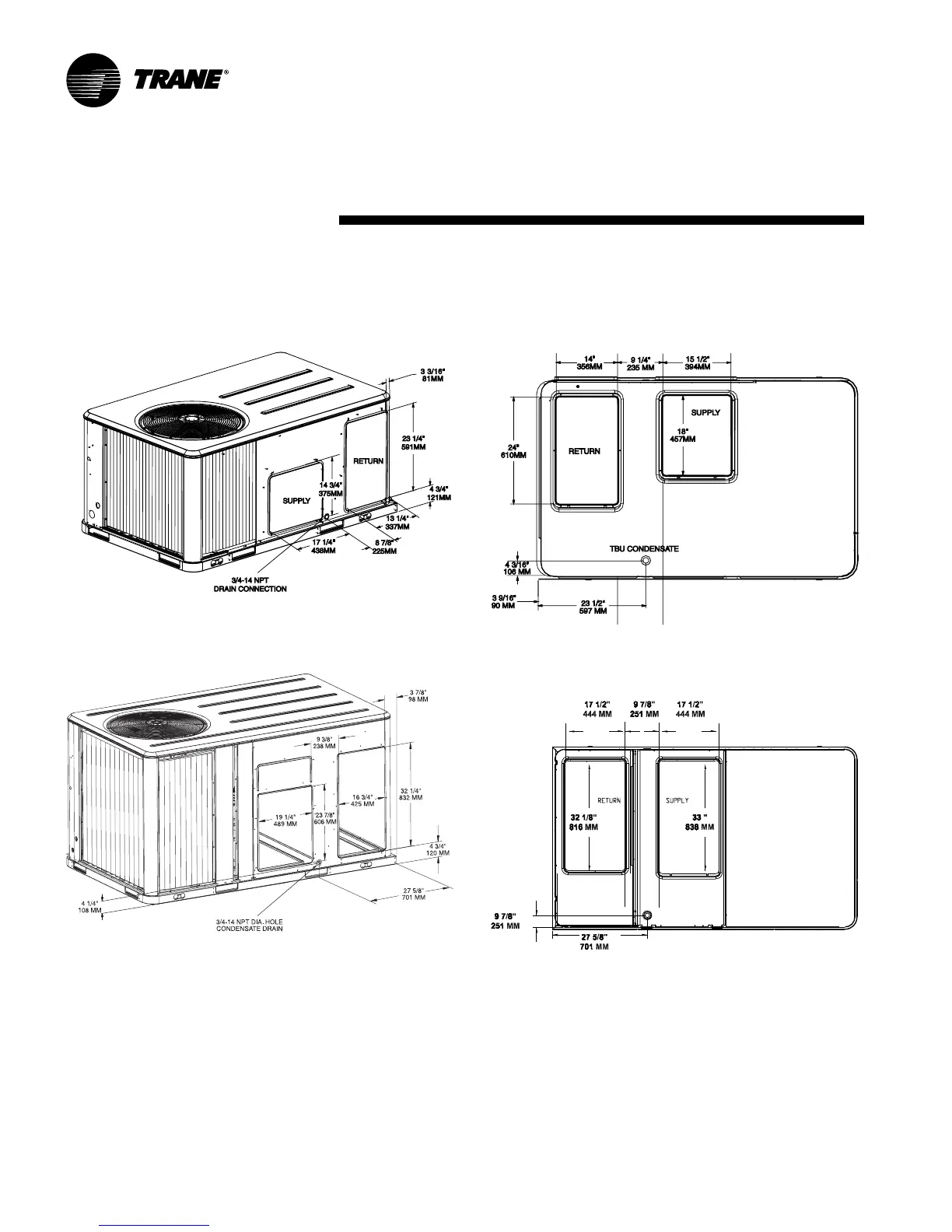

Figure 4-1
YSC060AD
Horizontal Unit Supply & Return Air Opening
YSC072AD - 120AD
Horizontal Unit Supply & Return Air Opening
Supply
Return
Installation
Figure 4-1
YSC060AD
Downflow Unit Supply & Return Air Openings
YSC072AD - 120AD
Downflow Unit Supply & Return Air Openings
