Setup Manual - Butler S2

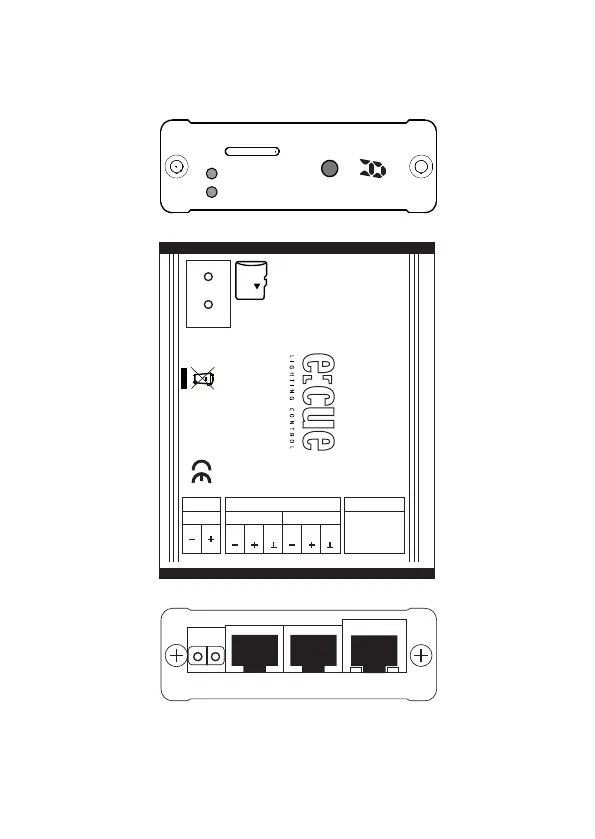

Connectors and interfaces
Power DMX 2 DMX 1 e:net
microSD slot
Select button
7-segment LED display
e:net activity
LINK (orange)
ACT (green)
Butler S2
DMX/RDM Output Engine
EN.BU.0000001
PWR
DMX2 DMX1
PoE
IEEE 802.3af
e:net
Made in Italy www.traxontechnologies.com
Link
Activity
microSD
Power input: 12 ... 24 V DC Max. current: 250 mA
DMX/RDM
In
1 2 3 1 2 3
