− Connection endpoint: the end of a VP/VC connection where the ATM cell are terminated
− Segment endpoint: the end of a connection segment

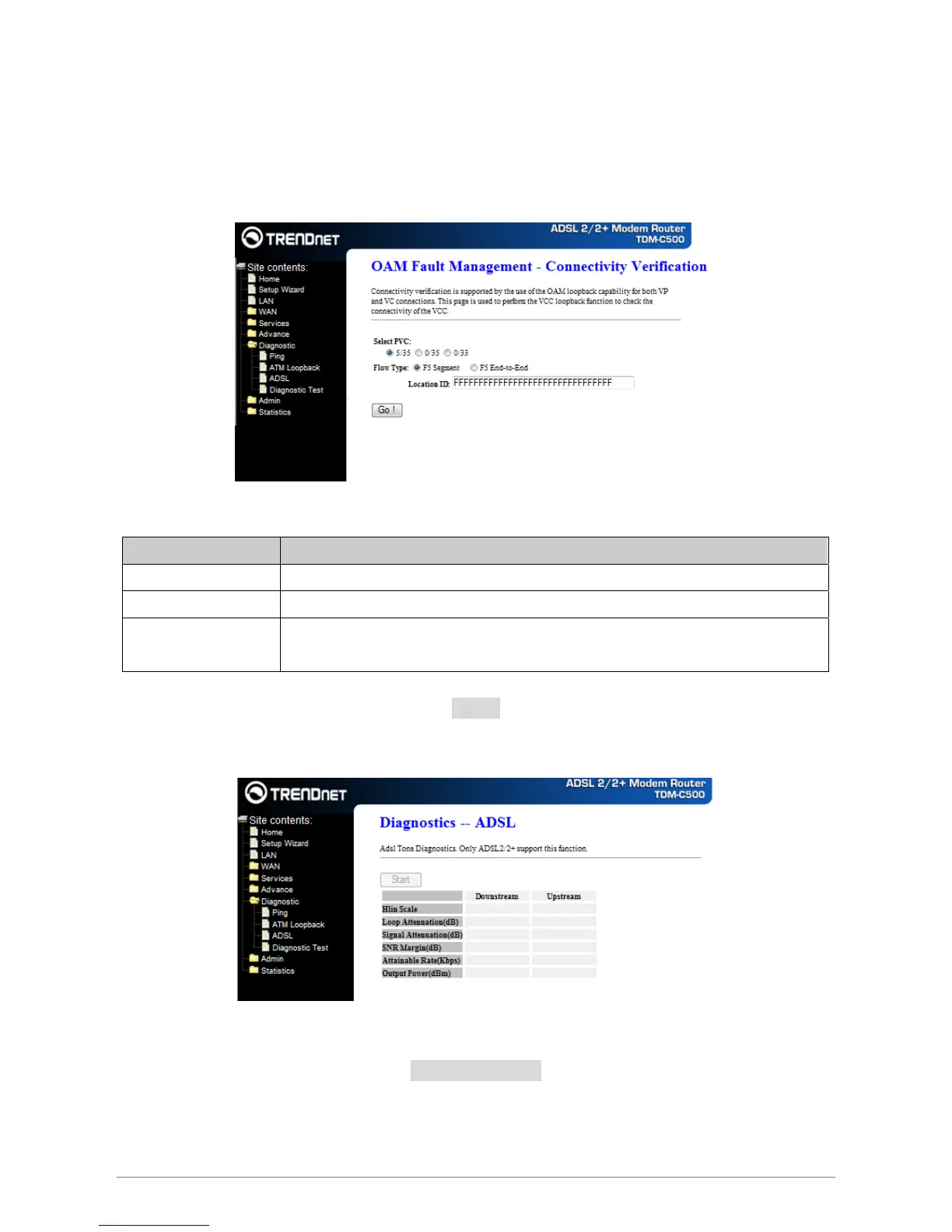

This page allows you to use ATM ping, which generates F5 segment and end-to-end loop-back cells to test
the reach ability of a segment endpoint or a connection endpoint.
Fields in this page:
Field Description
Select PVC Select the PVC channel you want to do the loop-back diagnostic.
Flow Type The ATM OAM flow type. The selection can be F5 Segment or F5 End-to-End.
Loopback Location ID The loop-back location ID field of the loop-back cell. The default value is all 1s (ones)
to indicate the endpoint of the segment or connection.
ADSL
This page shows the ADSL diagnostic result. Click Start button to start the ADSL diagnostic.
Diagnostic Test
The Diagnostic Test page shows the test results for the connectivity of the physical layer and protocol
layer for both LAN and WAN sides.
