Trianco TRO Evolution 30 System - Combustion Products Exhaustion and Air Intake Vertically-Arranged Coaxial Device Ø80-125 (Type C33) (Only for TRO Evolution System)

page -14

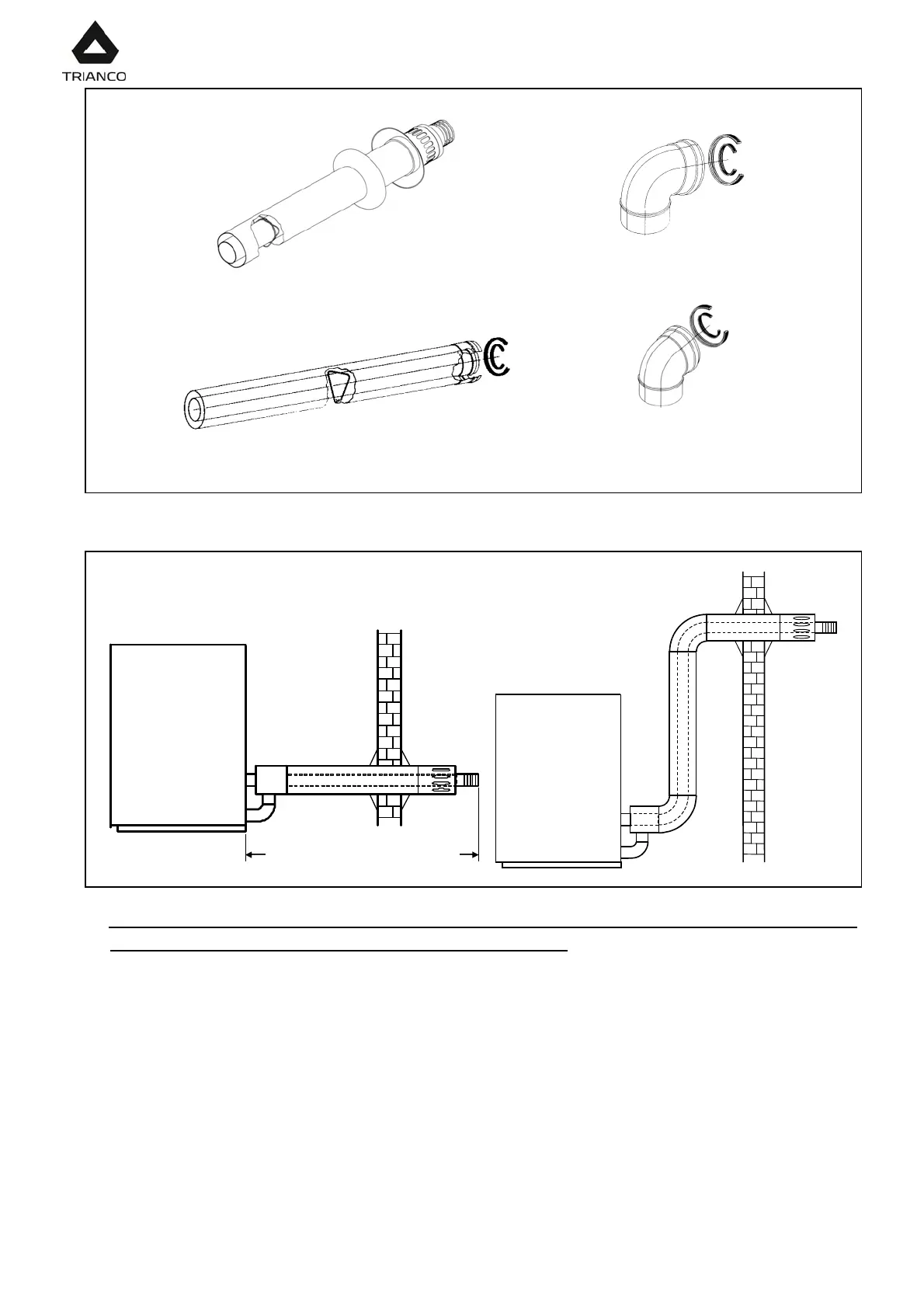

Horizontally-arranged outlet 1m

80/125
Cod. CGAS000189
90º coaxial elbow

80/125
Cod. CGAS000182
45º coaxial elbow

80/125
Cod. CGAS000183
1m coaxial duct

80/125
Cod. CGAS000184
Examples of installation:
L

8 mts. (TRO Evolution 20 System)
L  6 mts. (TRO Evolution 30 System)
5.4.- Combustion products exhaustion and air intake vertically-arranged coaxial device
ø80-125 (type C33) (Only for TRO Evolution System)
The combustion products exhaustion and air intake can be carried out through concentric
pipes of Ø80 mm. for the combustion products exhaustion and Ø125 mm. for the air intake,
by means of the vertically-arranged outlet Kit Ø80-125 code CGAS000231.
The maximum vertical length counted from the boiler, including the kit end, is 7 metres (TRO
Evolution 30 System) and 10 metres (TRO Evolution 20 System). Each elbow of 90°, or two of
45°, reduces the available length by 1 metre.
