page -37
2/3 mm
3 mm

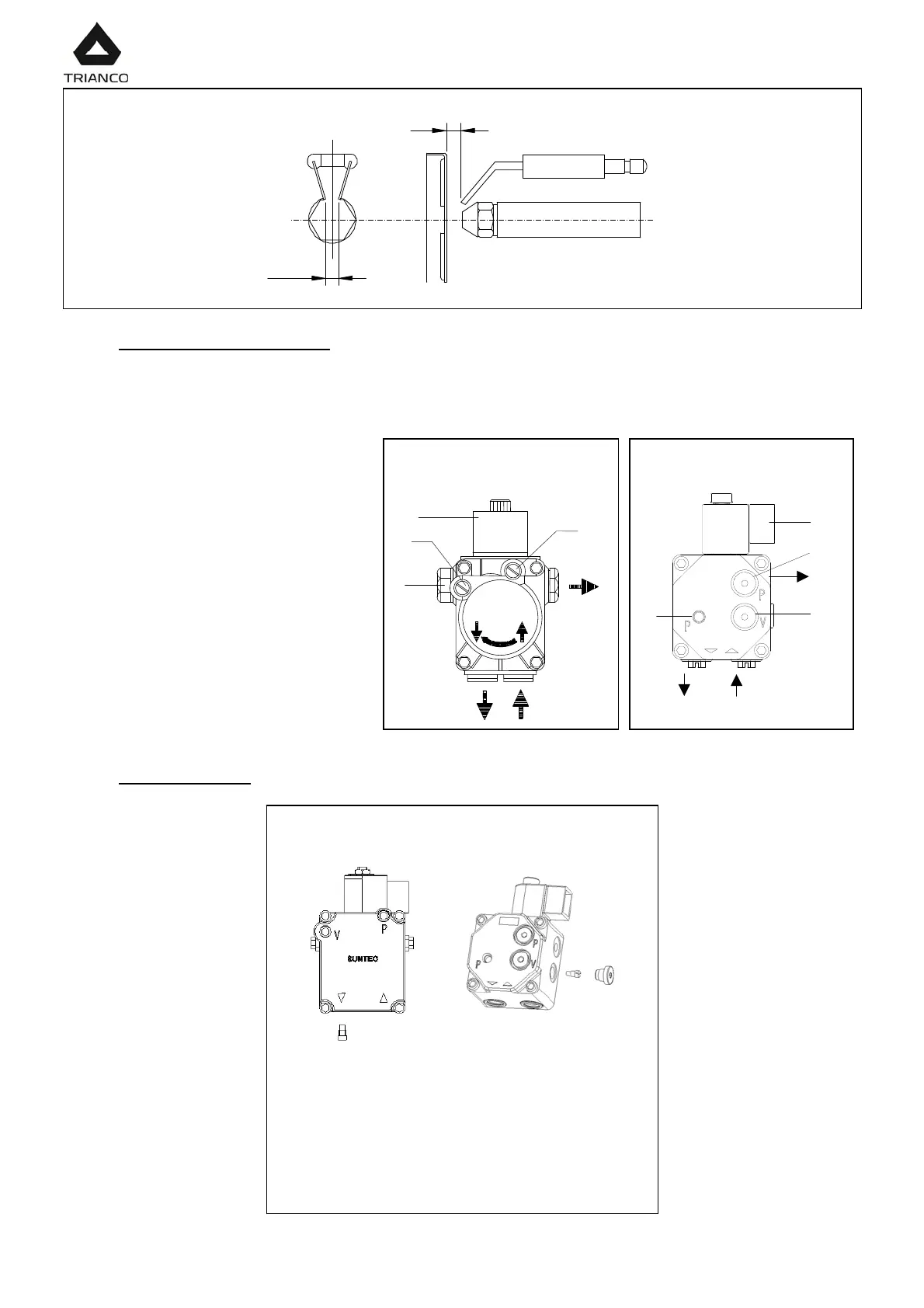

24.7.- Oil pressure adjustment
To adjust the oil pump pressure, turn the screw (1) clockwise to increase the pressure, and
anticlockwise to decrease it.
1 - Pressure adjustment.
2 – Vacuum gauge point.
3 - Valve.
4 - Manometer point.
5 - Nozzle outlet.
6 - Return.
7 - Intake.
24.8.- Pipe operation
SUNTEC
DANFOSS
2-Pipe operation: Screw (A) fitted.
1-Pipe operation: Without screw (A)
Note: The screw is supplied in the bag
with the documentation
SUNTEC - MOD. AS47C
1
2
3
4
5
DANFOSS - MOD. BFP 21 L3
3
5
4
2
7
6
1
