Trianco TRO Evolution 30 System - Burner Nozzles and Settings

page -39
Preheater
YES

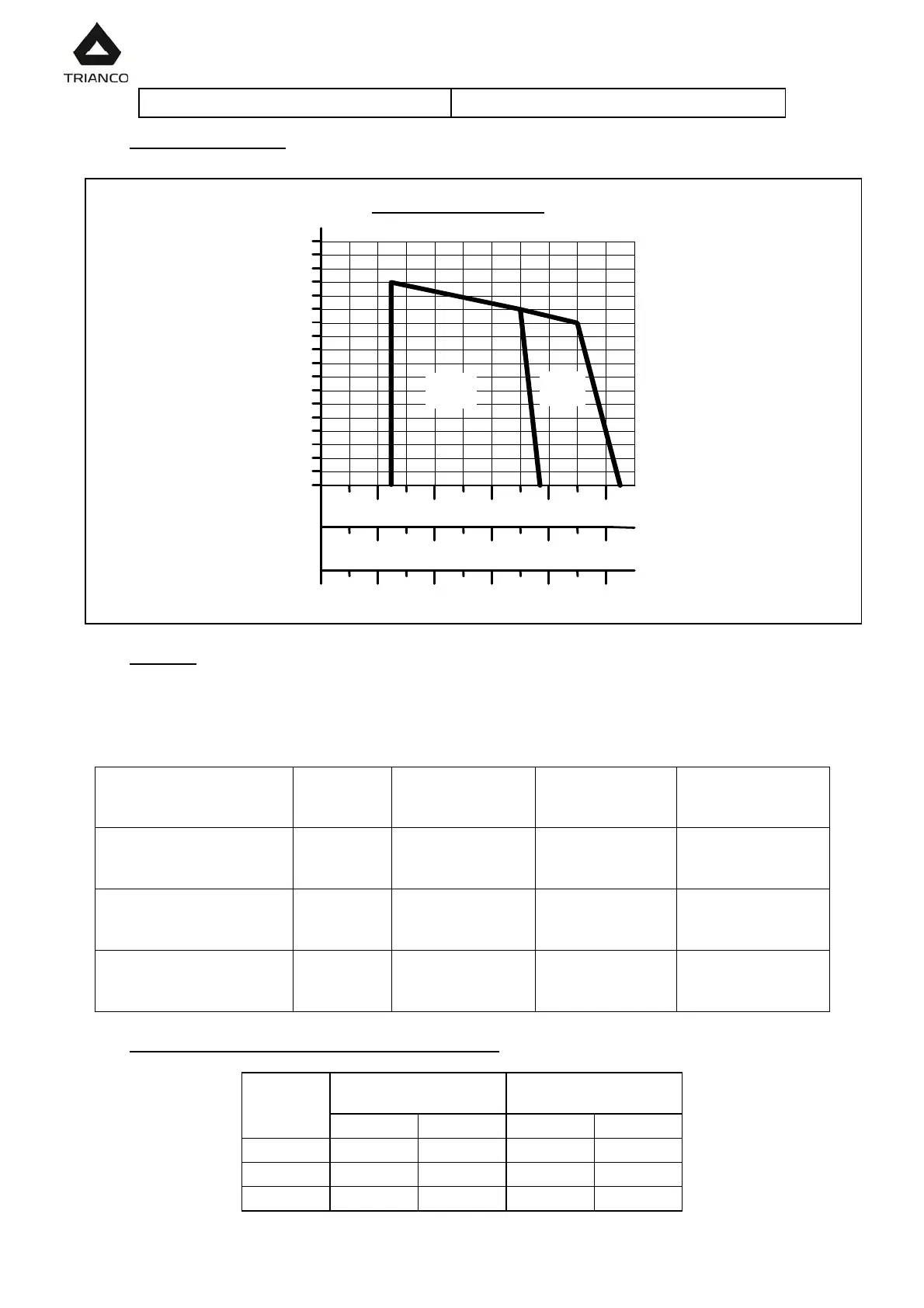

24.11.- Operating curves
5
10
15
1
2 3 4 5
Kg/h
10200
20400 30600 40800 51000
Kcal/h
11.8 23.72 47.44 35.58 59.3 Kw
mmH
2
O
OVERPRESSURE / FLOW
D-3
D-4
24.12.- Nozzles
TRO Evolution System boilers are supplied with the burner fitted, together with its
corresponding nozzle and a standard pre-adjustment. The following table shows the nozzles
and adjustments for each particular model:
MODEL Nozzle
Burner pressure
(bar)
Air adjustment Line adjustment
TRO Evolution 20
System
0,45 80º H 10 7 1
TRO Evolution 30
System
0,65 60º H 10 3,5 1
TRO Evolution 40
System
1,00 45º H 9 3,5 1
24.13.- Oil flow versus nozzle and pump pressure
Oil
Kg/h
Kerosene
Kg/h
Nozzle
GPH
9 bar 10 bar 9 bar 10 bar
0,45 1,58 1,67 1,4 1,5
0,65 2,29 2,42 2,02 2,17
1,00 3,53 3,72 3,12 3,35
