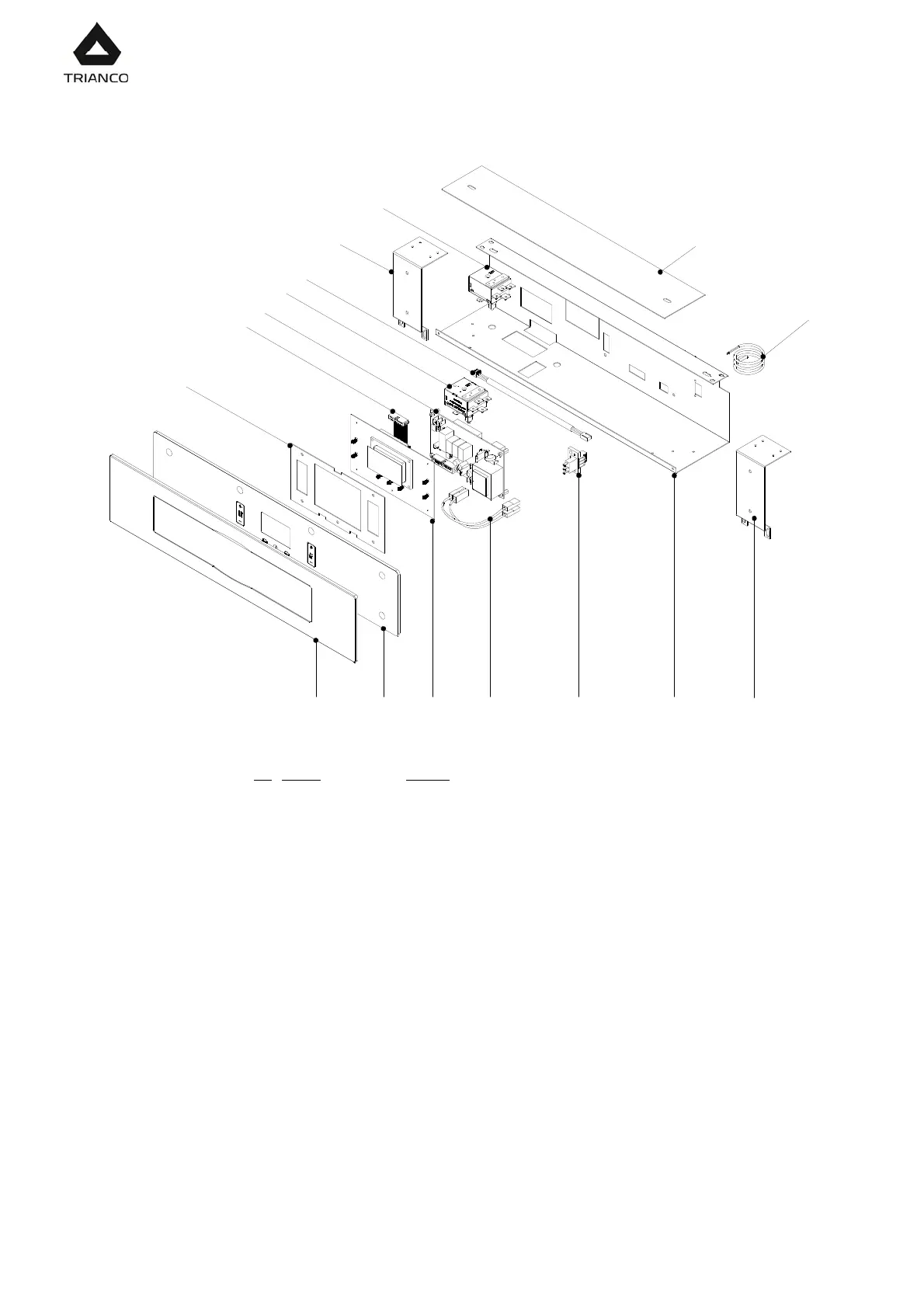

Electrical main board
1 2 3 4 5
7
6
8
97
10
11
12
13
14
15
Nº Code Name
1
CELC000294 Control panel embellisher
2
COTR000046 Main board glass
3
CELC000360 Display card
4
CMAZ000128 Cable harness
5
CELC000036 Weidmuller strip 3 poles
SEPO001947 Drawer
6
SEPO002249 Drawer W
SEPO001325 Panel fastening
7
SEPO002247 Panel fastening W
8
CELC000234 Temperature Evolution sensor 0,90 mts.
SEPO001326 Drawer cover
9
SEPO002248 Drawer cover W
10
CELC000255 Pressure sensor cable
11
CELC000022 Safety thermostat 110º 1,5m
12
CELC000358 Power supply card
13
CELC000298 Electronic cards cable
14
SCHA008320 Display suport
15
CELC000022 Fumes thermostat
