Tridium JACE-6 Series User Manual

DIN mounting is recommended over tab mounting.
See Figure 1 on page 5.
Note: Electronic and printed versions of this
guide may not show the dimensions to scale.
Verify all measurements before drilling.

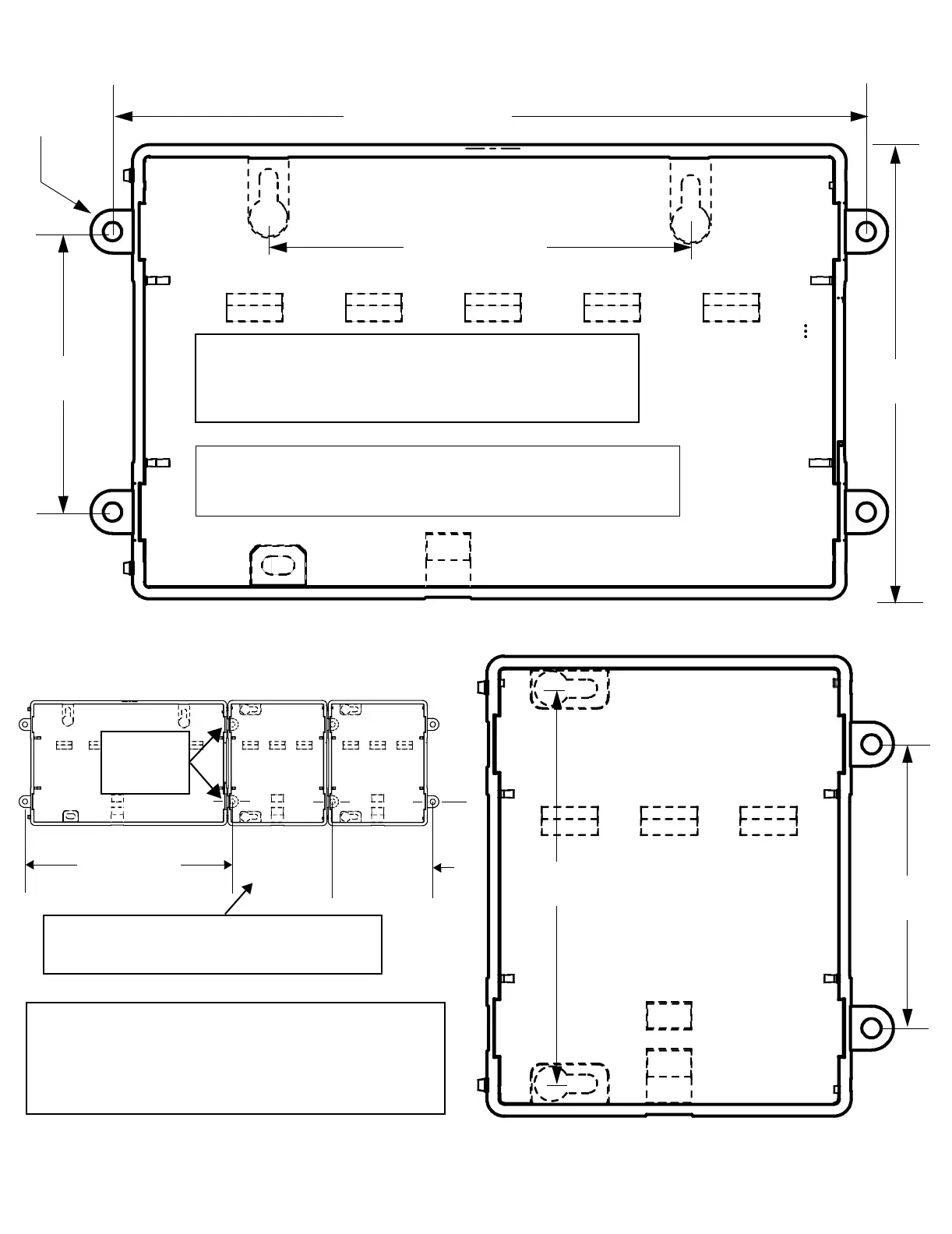

3.75” (95.25mm)
6.719” (170.66mm)
2.50”
(63.50mm)
4.00”
(101.6mm)
0.170” Dia.
(4.32mm)
2.50”
(63.50mm)
3.25”
(82.55mm)
JACE-6
IO-16 or
NPM-PWR,
NPB-PWR-UN
Tip: If mounting accessory modules, future
removal/replacement of the JACE-6 is simplified if
you do not install screws in the “accessory module
side” tabs of the JACE-6 (see above).
JACE-6
3.25”
(82.55mm)
IO-16
IO-16 or
NPM-PWR
Distance between center of tabs
from one unit to another unit.
3.48”
(88.55mm)
Accessory
module
side tabs
6.719”
(170.66mm)
Tab Mounting Dimensions
