Trilogy Orator - 500-30 Series Standard Control Panel Rear View; 500-30 Series Control Panel Connections

Orator Installation Guide
Page 20 of 37 Issue 2 Trilogy Broadcast Limited
Orator

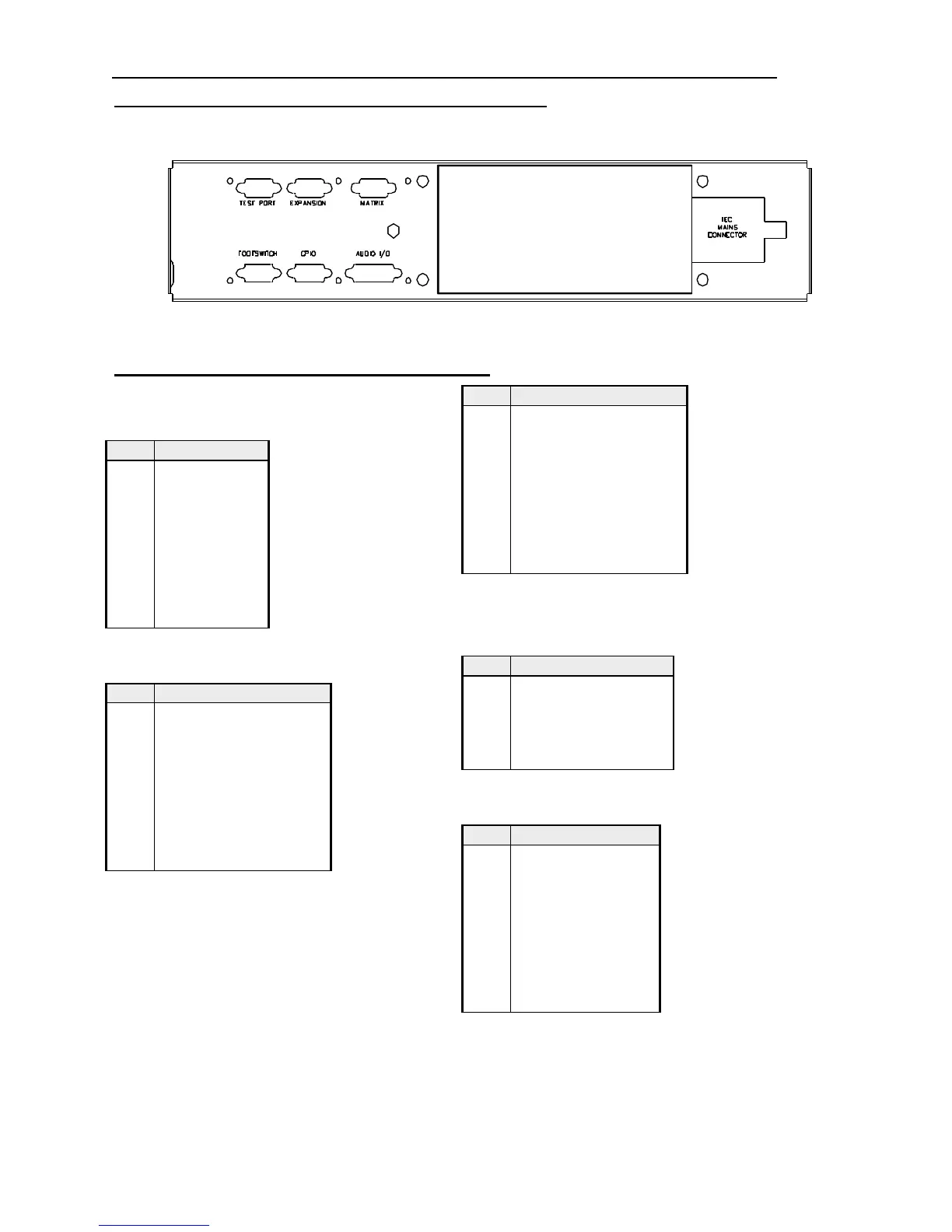

4.1.1 500-30 Series Standard Control Panel Rear View
4.1.2 500-30 Series Control Panel Connections
Matrix – 9D Fixed Plug
Pin Function
1 NC (Screen)
2 Data Out-
3 Data In-
4 Audio Out-
5 Audio In-
6 Data Out+
7 Data In+
8 Audio Out+
9 Audio In+
Test Port– 9D Fixed Socket
Pin Function
1 Analyse Input
2 Enable Remote Boot
3 Ground
4 Transputer Link Out+
5 Transputer Link In+
6 Error signal Out
7 Reset In
8 Transputer Link Out-
9 Transputer Link In-
Expansion Port– 9D Fixed Socket
Pin Function
1 Analyse Input
2 Enable Remote Boot
3 Ground
4 Transputer Link Out+
5 Transputer Link In+
6 Error signal in
7 Reset Out
8 Transputer Link Out-
9 Transputer Link In-
Headset - 5 Pin XLR Fixed Socket
(Front panel)
Pin Function
1 Mic IN (Screen)
2 Mic IN
3 Headset Gnd
4 Headset Out
5 Headset Out
Foot Switch - 9D Fixed Socket
Pin Function
1 Foot Switch Input
2 No Connection
3 Chassis Ground
4 No Connection
5 No Connection
6 Ground
7 No Connection
8 No Connection
9 No Connection
