Trinity INFINITY - Page 30

25
Infinity – Operational Manual
EB
Breaker
DG
Breaker
EB
DG
R
Y
B
N
R
Y
B
N
RS-485 Bus
3-P
Load
150 to 270VAC Input to Select DG Energy

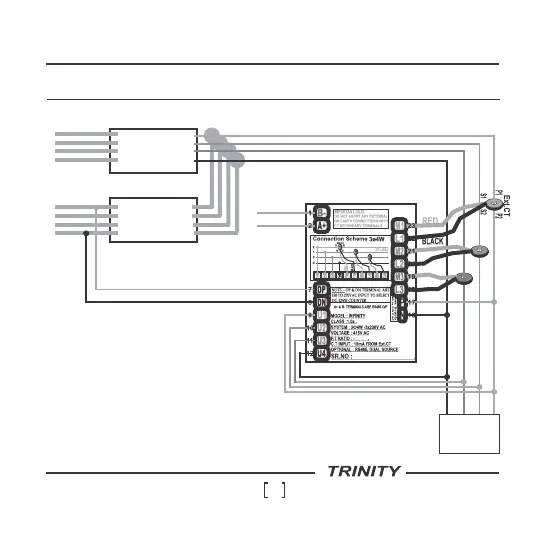

INFINITY Dual Source & Rs485 Whole Current KWh Meter Connection
