Communication

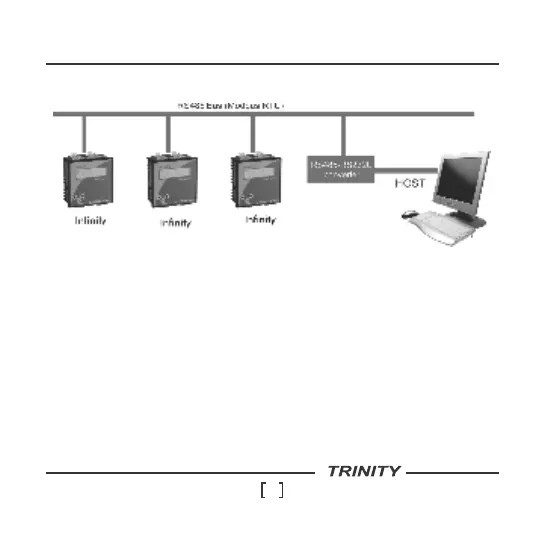

The industry standard RS485 communication port option is
available in Infinity. This option makes it possible for a user to
select Infinity to provide energy information into a control system.
Modbus RTU on RS485 Port
Protocol details for RS485 MODBUS communication of Trinity
meter model Infinity with PC based DAS package.
Communication line parameters: 9600/8/N/1
The register map is described below. All address is in decimal. All
parameters are unsigned long. If illegal address is sent in the
Infinity – Operational Manual
20
